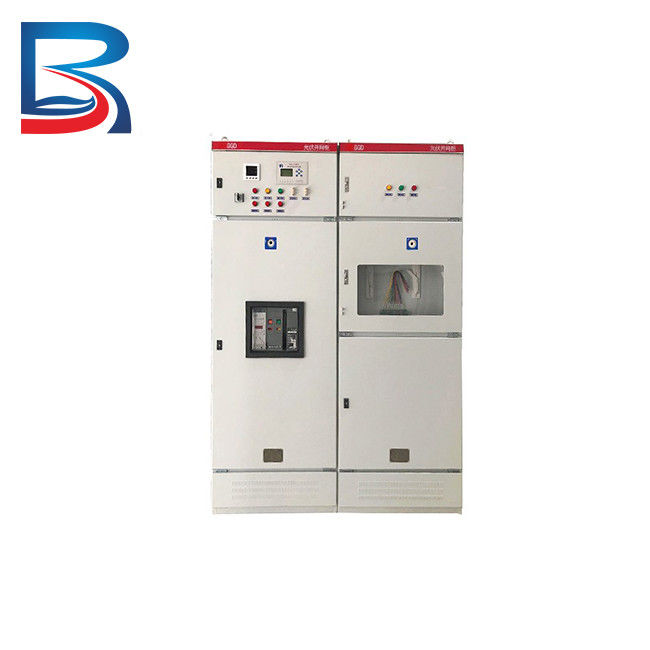

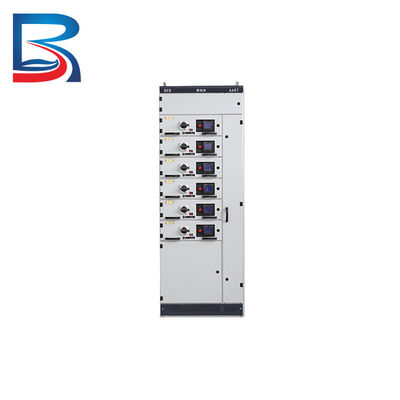

Indoor Outdoor Type IP4X Low Voltage Switchgear Motor Control Center Panel

Indoor Outdoor Type IP4X Low Voltage Switchgear Motor Control Center Panel

  • Indoor Outdoor Type IP4X Low Voltage Switchgear Motor Control Center Panel
  • Indoor Outdoor Type IP4X Low Voltage Switchgear Motor Control Center Panel
Indoor Outdoor Type IP4X Low Voltage Switchgear Motor Control Center Panel
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Motor Control Center Panel Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

IP4X Low Voltage Switchgear

,

IP4X Outdoor Motor Control Center Panel

,

IP4X Motor Control Center Panel

Indoor Outdoor Type Motor Control Center Panel Low Voltage Switchgear





Product Description



  • What is it?

It is a power distribution and control system that contains low voltage switches and contactors to control and distribute power to multiple motors and other loads.

  • What are the advantages?
  1. Centralized design for convenient wiring and management.
  2. Indoor outdoor-resistant design that can be installed indoors or outdoors.
  3. High reliability of low voltage switchgear.
  4. Modular design for easy expansion and maintenance.
  5. Space saving.
  • What are the main components?
  1. Master circuit breaker or main switch connecting to power grid to provide power.
  2. Temperature and current meters corresponding to each branch circuit.
  3. Multiple switch groups and contactors for controlling switches of each load.
  4. Cable ducts and branch cables.
  5. Associated mechanical and electrical interlocks.
  • Where is it generally used?

Primarily in factories, power plants, substation rooms, mines and other places that require control and distribution of large quantities of motors and loads.

  • What is the working principle?

The master circuit breaker provides power, and then through branch cables the power is distributed to the various switch groups and contactors. Each contactor controls the corresponding motor or load. Switching the contactor on or off can start or stop the corresponding motor.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





FAQ



1. Do you produce or trade your products?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. What is the process for purchasing your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. How long does it take for you to deliver products and what is your customer support like after the sale?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What kind of guarantee or warranty do you offer on your products?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What are the conditions and methods for payment when purchasing your products?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. What is the process for arranging a visit to your company?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.





Team Show



Indoor Outdoor Type IP4X Low Voltage Switchgear Motor Control Center Panel 0



1.Professional team



2.Comprehensive services



3.Strict quality control



4.Comprehensive inspection



5.Responsibility guarantee





Company Profile



Indoor Outdoor Type IP4X Low Voltage Switchgear Motor Control Center Panel 1



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."
