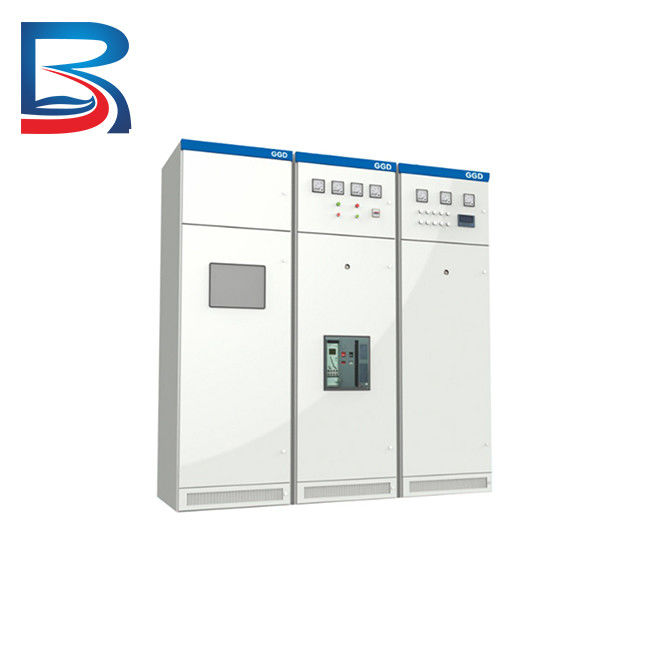

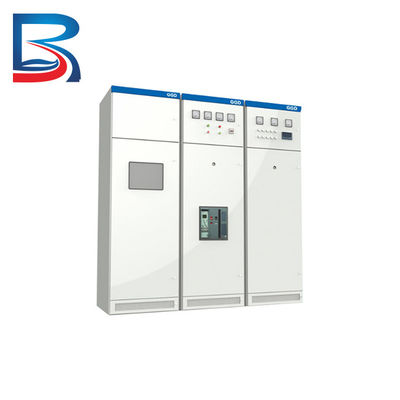

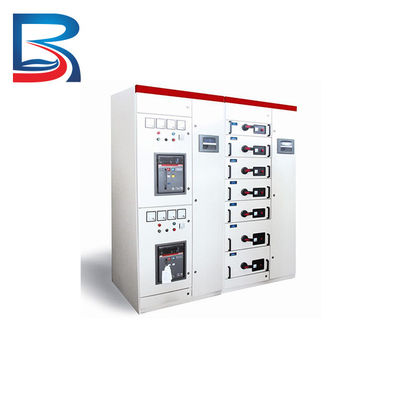

Medium Voltage LV Low Voltage Switchgear Panel for electrical Grid Systems

Medium Voltage LV Low Voltage Switchgear Panel for electrical Grid Systems

  • Medium Voltage LV Low Voltage Switchgear Panel for electrical Grid Systems
  • Medium Voltage LV Low Voltage Switchgear Panel for electrical Grid Systems
Medium Voltage LV Low Voltage Switchgear Panel for electrical Grid Systems
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: LV Low Voltage Switchgear Panel Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

Medium Voltage LV Low Voltage Switchgear Panel for electrical Grid Systems





Product Description



Low-voltage cabinets are used in a wide range of applications, such as in industrial plants, commercial buildings, data centers, and power generation facilities. They are designed to meet the specific needs of each application, and can vary in size, shape, and features.



The components that are typically housed in a low-voltage cabinet are designed to protect against electrical faults and ensure the safe operation of the electrical system. For example, circuit breakers are used to protect against overcurrents, while fuses are used to protect against short circuits. Relays are used to control the operation of electrical equipment, and may be used to monitor and protect against various types of faults.

Low-voltage cabinets can be customized to meet specific needs, such as the number of incoming and outgoing circuits, the type and number of protection devices, and the type of control and communication interfaces. They can also be designed to integrate with other electrical equipment, such as transformers, switchgear, and motor control centers.



Low-voltage cabinets are typically designed to withstand various environmental factors, such as temperature, humidity, and dust. They may be designed for indoor or outdoor use, and may be equipped with features such as air conditioning, ventilation, and dust filters to protect against environmental factors.



The design and construction of low-voltage cabinets must comply with various international standards and regulations to ensure their performance, safety, and environmental impact. For example, the International Electrotechnical Commission (IEC) has developed a series of standards for low-voltage switchgear and controlgear assemblies, which specify requirements for design, construction, and testing.



In conclusion, low-voltage cabinets are an essential component of power distribution systems, and are designed to provide a safe and reliable means of distributing electricity to various loads in a facility. They can be customized to meet specific needs, and must comply with various international standards and regulations to ensure their performance, safety, and environmental impact.





Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation





Delivery and Payment



Medium Voltage LV Low Voltage Switchgear Panel for electrical Grid Systems 0





Packing



Medium Voltage LV Low Voltage Switchgear Panel for electrical Grid Systems 1
