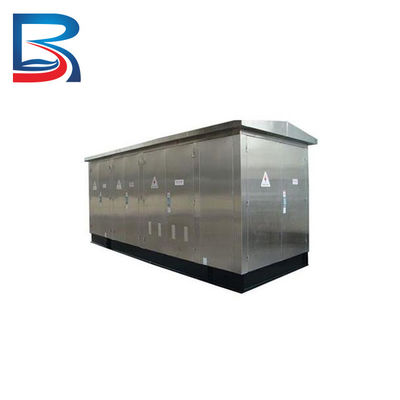

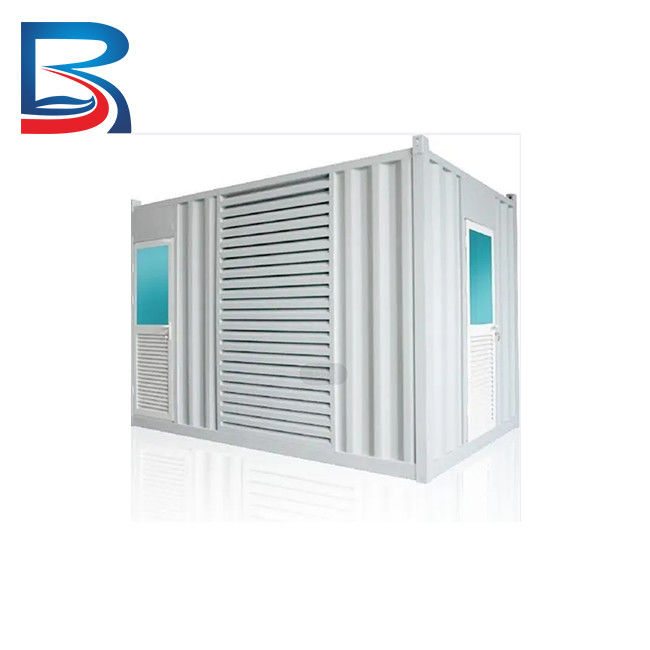

High Voltage Switchgear Draw Out Cast Resin Dry Type Electrical Power Transformer IP54

High Voltage Switchgear Draw Out Cast Resin Dry Type Electrical Power Transformer IP54

  • High Voltage Switchgear Draw Out Cast Resin Dry Type Electrical Power Transformer IP54
  • High Voltage Switchgear Draw Out Cast Resin Dry Type Electrical Power Transformer IP54
High Voltage Switchgear Draw Out Cast Resin Dry Type Electrical Power Transformer IP54
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Electrical Power Transformer Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Cast Resin electrical power transformer

,

electrical power transformer IP54

,

dry type power transformer IP54

High Voltage Switchgear Draw Out Cast ResinDry Type Electrical Power Transformer





Product Description



Components



• Preassembled substations mainly consist of:

  • High voltage switchgear
  • Distribution transformers
  • Low voltage switchgear
  • Protection devices
  • Metering equipment
  • Control systems

They integrate all these components within compact enclosures.



Construction



• The box bodies are made of materials like structural steel, aluminum alloys and flame retardant composites.

• They provide protection against weather, corrosion and intrusion.

• Internal components are factory assembled and tested before installation.



Applications

• Used for ring, dual power source or radial distribution systems.

• Suitable for:

  • High-rise buildings
  • Residential communities
  • Industrial parks
  • Mines and oilfields
  • Temporary construction sites

Advantages



• Compact design with small footprint - around 1/10 to 1/5 of conventional substations.

• Lower investment and construction costs.

• Easy installation, operation and maintenance.

• High reliability and safety due to enclosed design.

• Mobility - Can be relocated when needed.



Specification





Rated Voltage 12/17.5/24kV 36kV



Standard applicable

IEC 62271 – 202 (IEC 61330) IEC 62271 – 202 (IEC 61330)
Normal ambient temperature 40 ° C 40 ° C
Maximum ambient temperature 50 ° C 50 ° C
Enclosure construction Modular Modular
Ventilation Natural Natural
Temperature class (Std.) K 10 K 10
MV and LV compartment IP 54 IP 54
Transformer compartment IP 23 IP 23
Rated voltage (kV) 12/24kV 36kV
Power frequency (kV rms) 28/50 70
Impulse (kV p) 75/125 170
Rated frequency (Hz) 50/60 50/60
Rated normal current (A) 630 630
Breaking capacity (A) 630 630
Making capacity (kA) 52.5 / 40 50
Rated normal current (A) 630 630
Breaking capacity (kA) 21/16 20
Making capacity (kA) 52.5 / 40 50
Rated power (kVA) – oil type 2500 2000
Rated power (kVA) – Dry type 2500 2000
Rated secondary voltage (V) 433 433
Vector group Dyn 11 Dyn 11
Tapping range + 5 in steps of 2.5% + 5 in steps of 2.5%
IP Yes Yes
Internal arc Yes Yes
Enclosure class Yes Yes
Impact test Yes Yes
Short circuit test on earthing Yes Yes





Advantages



1.Excellent quality



2.24 hour service



3.Professional design



4.Advanced technique



5.Rapid delivery





Design



High Voltage Switchgear Draw Out Cast Resin Dry Type Electrical Power Transformer IP54 0





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation
