Detailed Product Description
Product Name: Power Distribution Equipment Compact Transformer Substation Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

ARC 600V Compact Transformer Substation

,

MNS Power Distribution Equipment

,

ARC 600V Power Distribution Equipment

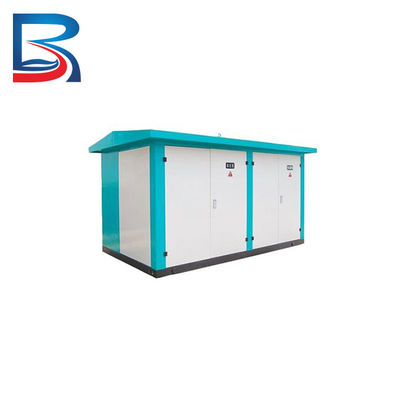

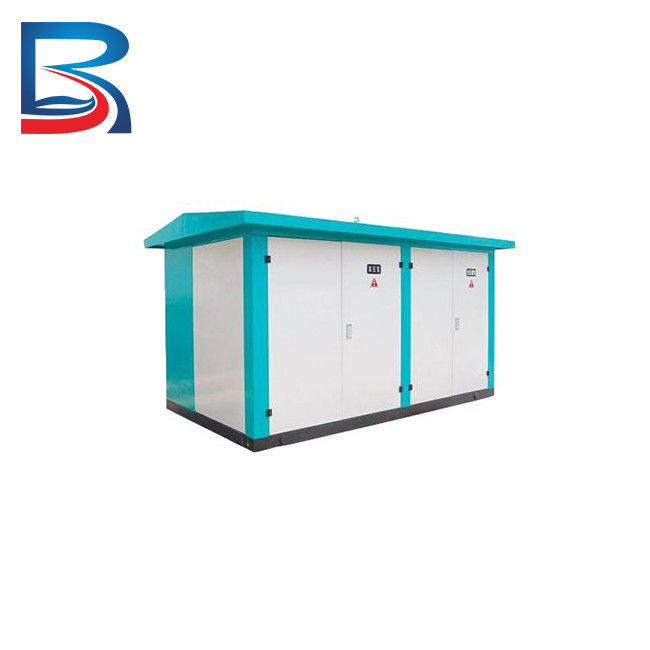

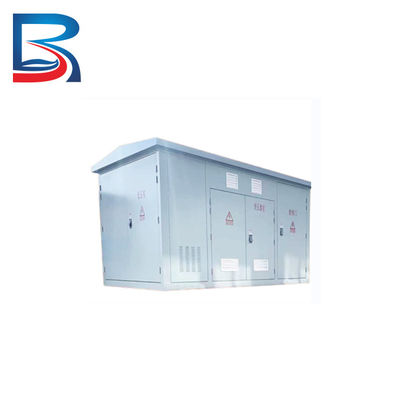

Arc 600V MNS Power Distribution Equipment Compact Transformer Substation





Product Description

  • Box-type substations are designed to withstand harsh environmental conditions, such as extreme temperatures, moisture, dust, and even rodents. They are typically made of galvanized steel plates and are rust-proof, dust-proof, moisture-proof, and rodent-proof.
  • The primary equipment in the box includes a fully enclosed high-voltage switchgear cabinet, dry-type transformer, dry-type reactor, vacuum circuit breaker, spring operating mechanism, rotary isolation switch, and other leading domestic technology equipment. The secondary equipment adopts a comprehensive microcomputer automation system, enabling unmanned operation.
  • The box-type substation is highly customizable, and the combination method can be tailored to meet the specific needs of the user. For example, it can be used as a fully box-type substation with 35kV and 10kV equipment installed inside the box, or it can be used as a partial box-type substation with only a 10kV switchgear box installed inside the box and 35kV equipment installed outdoors.
  • Box-type substations are cost-effective compared to conventional substations. They can reduce investment by up to 50%, and they have a quick return on investment due to their shorter design and manufacturing cycle, faster installation, and lower operating and maintenance costs.
  • The small footprint of box-type substations makes them particularly suitable for use in urban and densely populated areas, where land is scarce. They also require minimal civil engineering, reducing the overall cost of construction.
  • Box-type substations are widely used in different applications, such as urban and rural power grids, industrial and mining enterprises, and other power users. They are also suitable for emergency power supply, mobile power supply, and other special occasions.



Specification





Rated Voltage 12/17.5/24kV 36kV



Standard applicable

IEC 62271 – 202 (IEC 61330) IEC 62271 – 202 (IEC 61330)
Normal ambient temperature 40 ° C 40 ° C
Maximum ambient temperature 50 ° C 50 ° C
Enclosure construction Modular Modular
Ventilation Natural Natural
Temperature class (Std.) K 10 K 10
MV and LV compartment IP 54 IP 54
Transformer compartment IP 23 IP 23
Rated voltage (kV) 12/24kV 36kV
Power frequency (kV rms) 28/50 70
Impulse (kV p) 75/125 170
Rated frequency (Hz) 50/60 50/60
Rated normal current (A) 630 630
Breaking capacity (A) 630 630
Making capacity (kA) 52.5 / 40 50
Rated normal current (A) 630 630
Breaking capacity (kA) 21/16 20
Making capacity (kA) 52.5 / 40 50
Rated power (kVA) – oil type 2500 2000
Rated power (kVA) – Dry type 2500 2000
Rated secondary voltage (V) 433 433
Vector group Dyn 11 Dyn 11
Tapping range + 5 in steps of 2.5% + 5 in steps of 2.5%
IP Yes Yes
Internal arc Yes Yes
Enclosure class Yes Yes
Impact test Yes Yes
Short circuit test on earthing Yes Yes





Team Show



ARC 600V MNS Compact Transformer Substation Power Distribution Equipment 0



1.Professional team



2.Comprehensive services



3.Strict quality control



4.Comprehensive inspection



5.Responsibility guarantee





Material



1.The cabinet door adopts a double beveled edge process, which increases the structural strength of the same material by 50%.



2.The installation holes are all made using a multi-layer stamping and stretching process, which reduces the sliding wire situation by more than 80%.



3.The inlet and outlet holes adopt a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.



4.The box adopts a double folding process, which increases the structural strength of the same material by 50%.



5.The control circuit adopts a composite design of debugging mode and fire protection mode, greatly reducing the burning of fan and water pump equipment designed for fire protection during debugging.
