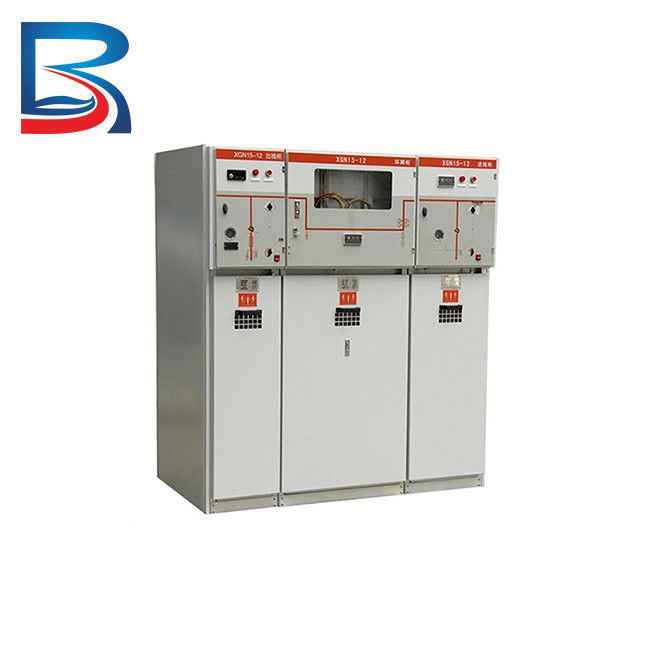

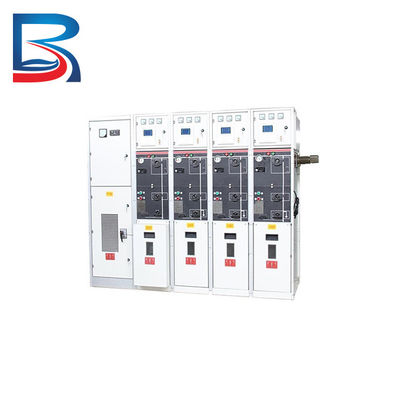

Rated Voltage 40.5KV Air Insulated Ring High Voltage Switchgear 50Hz

Rated Voltage 40.5KV Air Insulated Ring High Voltage Switchgear 50Hz

  • Rated Voltage 40.5KV Air Insulated Ring High Voltage Switchgear 50Hz
  • Rated Voltage 40.5KV Air Insulated Ring High Voltage Switchgear 50Hz
Rated Voltage 40.5KV Air Insulated Ring High Voltage Switchgear 50Hz
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Ring Main Unit High Voltage Switchgear ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

40.5KV Air Insulated Ring High Voltage Switchgear

,

air insulated switchgear 50Hz

,

40.5KV air insulated switchgear

Rated Voltage 40.5KV Air Insulated Ring Main Unit High Voltage Switchgear





Product  Description



  • The rated voltage is 40.5 kilovolts, which is suitable for controlling and protecting high-voltage circuits in the power system.
  • It adopts air insulation design, which can effectively isolate the circuit and prevent problems such as leakage.
  • The equipment has a compact structure and a small volume, suitable for places with limited space.
  • It has high reliability and can meet the control and protection requirements of high-voltage circuits in the power system.
  • The equipment is easy to operate and maintain, and the operators can easily master it.





Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





Marketing



Rated Voltage 40.5KV Air Insulated Ring High Voltage Switchgear 50Hz 0

Our business scope covers 6 continents and over 50 countries.





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation





 Why Choose Us



Rated Voltage 40.5KV Air Insulated Ring High Voltage Switchgear 50Hz 1



1.Our Expertise



2.Quality Products/Services



3.Competitive Pricing



4.Innovation



6.Possibles



7.Authorization by ABB Schneider Siemens
