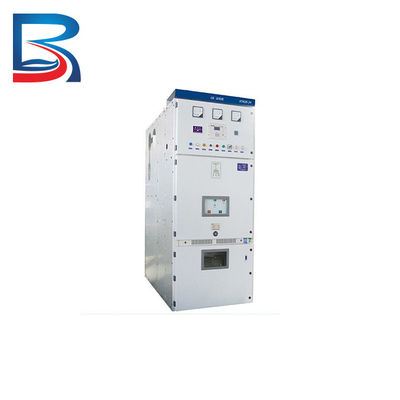

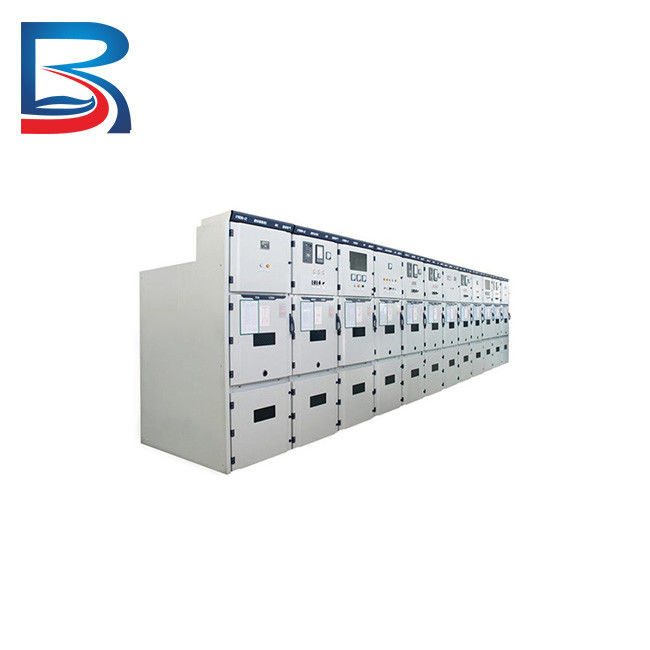

Withdrawable 33KV Metal Enclosed Ring Main Unit for Electrical Grid Systems

Withdrawable 33KV Metal Enclosed Ring Main Unit for Electrical Grid Systems

  • Withdrawable 33KV Metal Enclosed Ring Main Unit for Electrical Grid Systems
  • Withdrawable 33KV Metal Enclosed Ring Main Unit for Electrical Grid Systems
Withdrawable 33KV Metal Enclosed Ring Main Unit for Electrical Grid Systems
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: 33KV Ring Main Unit ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Metal Enclosed 33KV Ring Main Unit

,

withdrawable 33KV Ring Main Unit

,

Metal Enclosed withdrawable switchgear

Metal Enclosed Withdrawable 33KV Ring Main Unit for Electrical Grid Systems





Product Introduction



  • A 33KV Ring Main Unit (RMU) is a type of electrical switchgear that is used to distribute electrical power at a voltage level of 33 kilovolts.
  • It is typically used in medium voltage applications such as power distribution systems in industrial, commercial, and residential areas.
  • The RMU consists of a metal enclosure that houses the electrical components, including the circuit breaker, disconnectors, and other protective devices.
  • The RMU is designed to provide an efficient and reliable means of power distribution, utilizing a ring configuration to supply power to multiple loads.
  • The RMU may use various types of circuit breakers, such as vacuum circuit breakers or SF6 gas circuit breakers, to interrupt the electrical current in the event of a fault.
  • 33KV Ring Main Unit may be designed for indoor or outdoor use and may need to be rated for specific environmental conditions such as temperature, humidity, and corrosive or explosive atmospheres.
  • The RMU is an important component of electrical systems, providing a safe and reliable means of controlling and protecting electrical equipment and circuits at a medium voltage level.
  • 33KV Ring Main Unit may be customized to meet specific customer requirements, and may include features such as remote monitoring and control, automation, and communication capabilities.

Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A







Production Facilities



Withdrawable 33KV Metal Enclosed Ring Main Unit for Electrical Grid Systems 0





Marketing



Withdrawable 33KV Metal Enclosed Ring Main Unit for Electrical Grid Systems 1



Our business scope covers 6 continents all over the world.





Team Show



Withdrawable 33KV Metal Enclosed Ring Main Unit for Electrical Grid Systems 2



1.United team



2.Comprehensive services



3.Quality control



4.Strictly inspection



5.Responsibility guarantee
