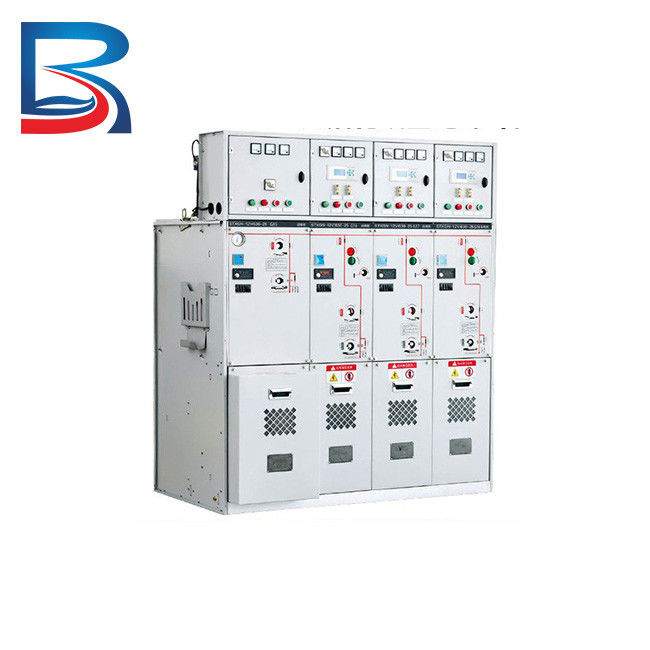

40.5KV HV Withdrawable GAS Insulated High Voltage Switchgear Substation

40.5KV HV Withdrawable GAS Insulated High Voltage Switchgear Substation

  • 40.5KV HV Withdrawable GAS Insulated High Voltage Switchgear Substation
  • 40.5KV HV Withdrawable GAS Insulated High Voltage Switchgear Substation
40.5KV HV Withdrawable GAS Insulated High Voltage Switchgear Substation
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: GAS Insulated High Voltage Switchgear Substation Color: As Required
Insulated: Gas Payment: T/T L/C
Packing: Wooden Case Certificate: ISO,9001 CQC,CCC,CE
High Light:

HV Withdrawable 40.5KV High Voltage Switchgear

,

40.5KV gas insulated switchgear substation

,

HV Withdrawable gas insulated switchgear substation

HV Withdrawable 40.5KV GAS Insulated High Voltage Switchgear Substation​



Product Description



• It is a type of substation used for medium voltage power distribution.

• It utilizes SF6 gas insulation for high dielectric strength between the conductors and components within the substation.

• The SF6 gas provides compact size, requires less space and is maintenance free.

• The voltage class is 40.5kV, which is considered medium voltage.

• The switchgear consists of circuit breakers, disconnect switches and other protection and monitoring devices.

• The circuit breakers are of withdrawable type which means it can be withdrawn (wheeled out) for maintenance without disconnecting the power supply to the rest of the substation.

• The withdrawable breakers provide safety and convenience for maintenance personnel during servicing and repair work.

• The SF6 gas insulated metal enclosed design provides protection against environmental factors like dust, moisture and weather.

• It helps in safe and reliable transmission and distribution of medium voltage power to commercial and industrial users.





Main Technical Parameters



Main Technical Parameters  Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A
