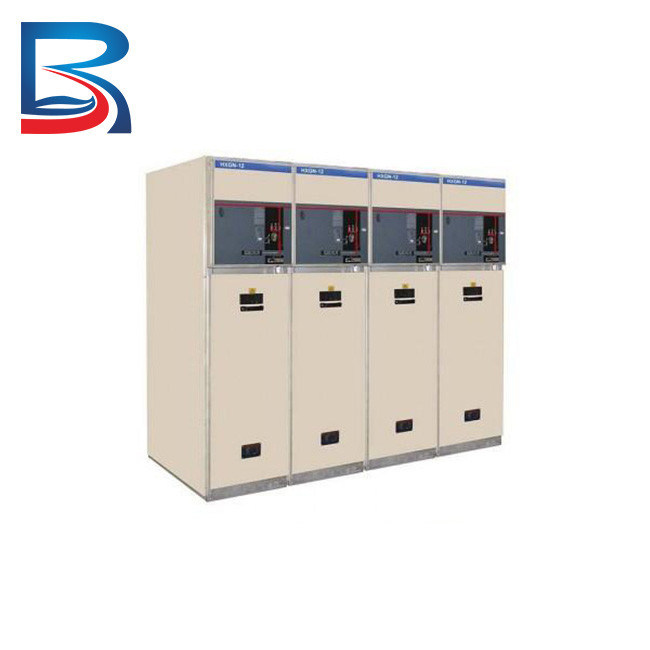

High Tension Industrial High Voltage Switchgear GIS GAS Insulated for Substation

High Tension Industrial High Voltage Switchgear GIS GAS Insulated for Substation

  • High Tension Industrial High Voltage Switchgear GIS GAS Insulated for Substation
  • High Tension Industrial High Voltage Switchgear GIS GAS Insulated for Substation
High Tension Industrial High Voltage Switchgear GIS GAS Insulated for Substation
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: GIS GAS Insulated High Voltage Switchgear Color: As Required
Insulated: Gas Payment: T/T L/C
Packing: Wooden Case Certificate: ISO,9001 CQC,CCC,CE
High Light:

GIS GAS Insulated High Voltage Switchgear

,

High Tension GIS GAS Insulated Switchgear

,

GIS GAS Insulated Switchgear for Substation

High Tension Industrial GIS GAS Insulated High Voltage Switchgear for Substation



Product Description



  • High Tension Industrial Electrical GIS GAS Insulated High Voltage Switchgear is designed to be used in high voltage applications, with voltage levels ranging from 72.5 kV to 550 kV. This makes it suitable for use in substations that are responsible for transmitting and distributing electrical power at high voltages.
  • The switchgear is designed to be gas insulated, which means it uses sulfur hexafluoride (SF6) gas to insulate the electrical components. This design provides a compact and efficient solution, allowing for a smaller footprint and reduced maintenance requirements.
  • The switchgear is designed for use in industrial applications, with a focus on reliability and durability in harsh environments. This makes it suitable for use in a wide range of industrial applications, including power plants, refineries, and chemical processing plants.
  • The switchgear may use various types of circuit breakers, such as vacuum circuit breakers or SF6 gas circuit breakers, depending on the specific requirements of the application. This allows for greater flexibility in the design and operation of the switchgear.
  • The switchgear may be designed to meet various international standards, such as IEC and ANSI, ensuring that it meets the highest quality and safety standards. This helps to ensure that the switchgear is reliable, safe, and meets the requirements of the project.
  • The switchgear may be customized to meet specific customer requirements and may include features such as remote monitoring and control, automation, and communication capabilities. This allows for greater flexibility in the operation and management of the switchgear, and can help to improve the efficiency and reliability of the substation.
  • High Tension Industrial Electrical GIS GAS Insulated High Voltage Switchgear is an essential component in substation applications, providing a safe and reliable means of distributing electrical power to various loads and equipment. Its compact and efficient design makes it an ideal solution for substations with limited space or that require high reliability and durability.
  • The switchgear may be used in a wide range of substation projects, including power plants, transmission and distribution substations, and other types of electrical infrastructure. It is a critical component of the electrical grid, helping to ensure the safe and reliable distribution of electrical power to consumers and businesses.





Main Technical Parameters



Main Technical Parameters  Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





Company Profile



High Tension Industrial High Voltage Switchgear GIS GAS Insulated for Substation 0



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."





Why Choose Us



High Tension Industrial High Voltage Switchgear GIS GAS Insulated for Substation 1





1.Our Expertise



2.Quality Products/Services



3.Competitive Pricing



4.Innovation



6.Possibles



7.Authorization by ABB Schneider Siemens





Packing



High Tension Industrial High Voltage Switchgear GIS GAS Insulated for Substation 2
