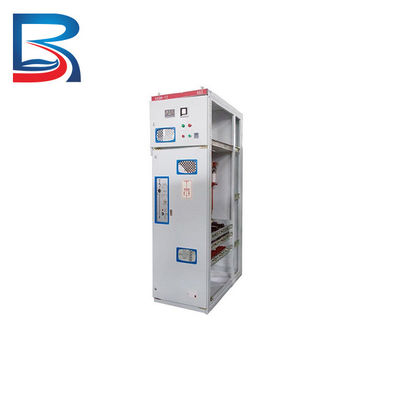

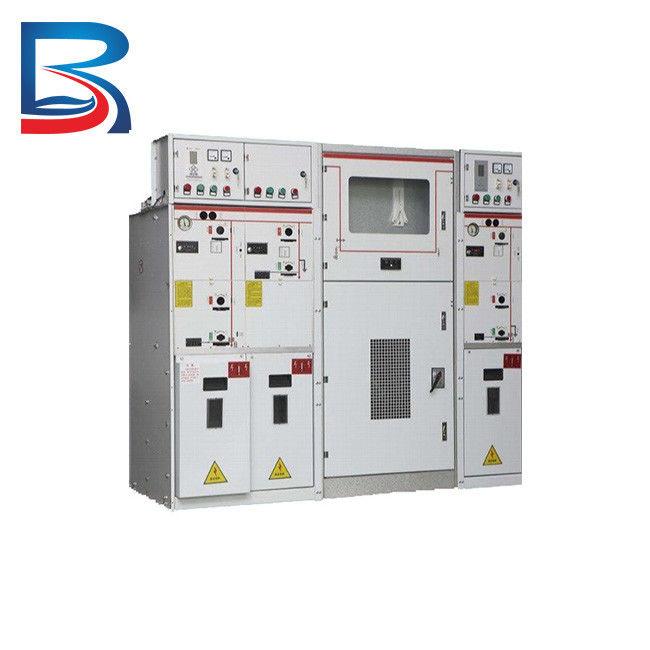

GIS 1250A Power Distribution Cabinet for Power Generation Plants

GIS 1250A Power Distribution Cabinet for Power Generation Plants

  • GIS 1250A Power Distribution Cabinet for Power Generation Plants
  • GIS 1250A Power Distribution Cabinet for Power Generation Plants
GIS 1250A Power Distribution Cabinet for Power Generation Plants
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Power Distribution Cabinet ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Power Distribution Cabinet

,

1250A Power Distribution Cabinet

,

GIS Power Distribution Cabinet

GIS Rated Current 1250A Power Distribution Cabinet for Power Generation Plants





Product  Description

  • The high rated current of 1250A allows it to distribute high levels of electrical power from the generation sources within the power plant.
  • The SF6 gas provides excellent insulation, heat dissipation and arc quenching properties to safely handle high currents and voltages.
  • The metal enclosed cabinet provides protection against environmental factors like dust, moisture, pollution and weather.
  • The compact design optimizes the space utilized within the power plant and allows for easy installation• The GIS technology results in components inside the cabinet being placed very close together without risk of electrical faults.
  • The insulation properties of SF6 gas remain constant under all operating conditions, ensuring reliability of the distribution cabinet.
  • The livings parts inside the cabinet - like busbars and switchgear - are safely shrouded to prevent accidental contact during work.
  • The zero maintenance insulating medium and sealed-for-life design extend the service life of the distribution cabinet.
  • Monitoring systems constantly supervise critical parameters like SF6 gas pressure, temperature and humidity within safe operational limits.
  • The lack of any organic material and free air inside the cabinet makes it immune to corrosion and contamination.



Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





Advantages



1.Excellent quality



2.24 hour service



3.Professional design



4.Advanced technique



5.Rapid delivery





Design



GIS 1250A Power Distribution Cabinet for Power Generation Plants 0





Production Facilities



GIS 1250A Power Distribution Cabinet for Power Generation Plants 1
