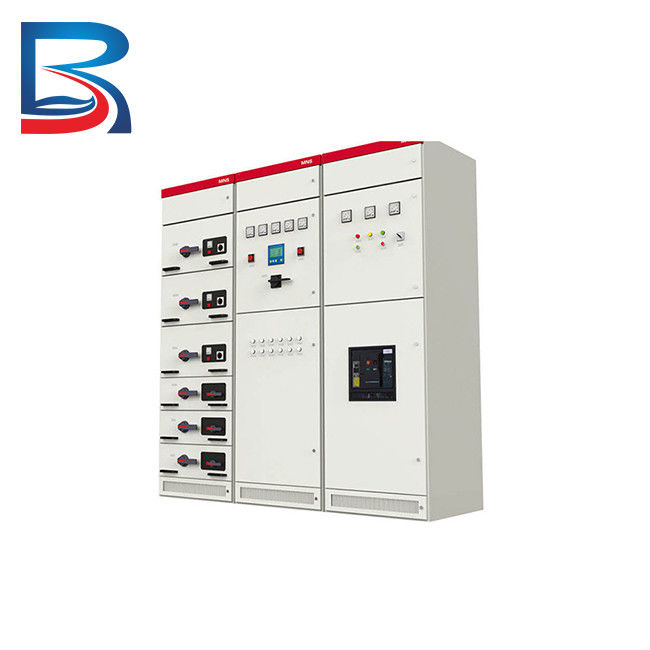

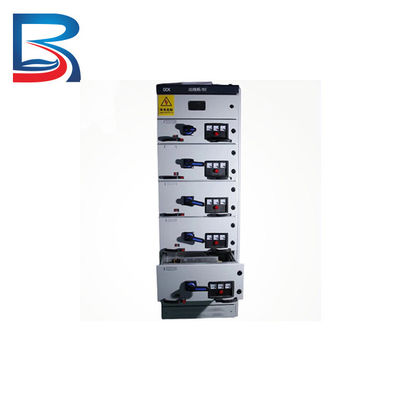

6.6 KV Gas Insulated Main Low Voltage Panel for Railway and Expressway

6.6 KV Gas Insulated Main Low Voltage Panel for Railway and Expressway

  • 6.6 KV Gas Insulated Main Low Voltage Panel for Railway and Expressway
  • 6.6 KV Gas Insulated Main Low Voltage Panel for Railway and Expressway
6.6 KV Gas Insulated Main Low Voltage Panel for Railway and Expressway
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Main Low Voltage Panel Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

6.6 KV Gas Insulated Main Low Voltage Panel for Railway and Expressway



Product Description

  • High Current Capacity: The panel is designed to handle high current loads, making it suitable for use in railway and expressway power systems where high current loads are common.
  • Fault Protection: The panel provides protection against electrical faults, including overvoltage, undervoltage, overload, and short circuit. This helps ensure the safe and reliable operation of the electrical system.
  • Communication and Control: The panel can be equipped with a variety of communication and control interfaces, including Ethernet, Modbus, and Profibus. This allows for easy integration with other electrical components and systems.
  • Environmental Protection: The panel is designed to be environmentally friendly, with reduced greenhouse gas emissions compared to traditional air-insulated switchgear. Additionally, the panel can be equipped with energy-efficient components and control systems to further reduce energy consumption.
  • Customization: The panel can be customized to meet the specific needs of the customer. This includes the number of incoming and outgoing circuits, the type and number of protection devices, and the type of control and communication interfaces.
  • Maintenance and Serviceability: The panel's modular design makes it easy to install and maintain. Components can be replaced or upgraded without the need to shut down the entire system, reducing downtime and maintenance costs.
  • Compatibility: The panel is compatible with a wide range of electrical equipment and systems, including transformers, generators, and other switchgear components.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65






FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.



Advantages



1.Excellent quality



2.24 hour service



3.Professional design



4.Advanced technique



5.Rapid delivery





Design



6.6 KV Gas Insulated Main Low Voltage Panel for Railway and Expressway 0
