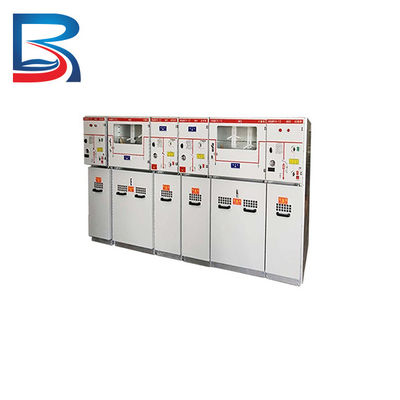

CE CQC CCC Certificates GIS GAS Insulated Air Insulated Switch Cabinet

CE CQC CCC Certificates GIS GAS Insulated Air Insulated Switch Cabinet

  • CE CQC CCC Certificates GIS GAS Insulated Air Insulated Switch Cabinet
  • CE CQC CCC Certificates GIS GAS Insulated Air Insulated Switch Cabinet
CE CQC CCC Certificates GIS GAS Insulated Air Insulated Switch Cabinet
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Switch Cabinet ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

CE Air Insulated Switch Cabinet

,

CQC Air Insulated Switch Cabinet

,

GAS Insulated Air Insulated Switch Cabinet

CE CQC CCC Certificates GIS GAS Insulated Air Insulated Switch Cabinet





Product  Description



GIS gas insulated and air insulated switch cabinets are two different types of cabinets used for high voltage power systems. Both cabinets have obtained CE, CQC, and CCC certificates, which prove that they comply with European, Chinese, and international safety standards.

GIS gas insulated switch cabinets use SF6 (sulfur hexafluoride) gas as an insulating medium and are capable of withstanding high voltage and large current. Air insulated switch cabinets use air as an insulating medium and are suitable for low voltage and medium current power systems.

Both types of cabinets adopt a metal enclosed structure, which can prevent external environmental factors from affecting the switch cabinets. These two types of cabinets are widely used in power systems, such as substations, industrial plants, and commercial buildings.

The design of these switch cabinets strictly follows safety standards, with strict safety measures in place during installation, operation, and maintenance. The GIS gas insulated and air insulated switch cabinets, which have obtained CE, CQC, and CCC certificates, are efficient and reliable solutions for power systems.



Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





Marketing



CE CQC CCC Certificates GIS GAS Insulated Air Insulated Switch Cabinet 0

Our business scope covers 6 continents and over 50 countries.





FAQ



1. Are you a manufacturer or a trader?

"Bosun Electrical" is a professional and leading manufacturer based in China.



2. How can I place an order for your products?

You can send us your project's single line diagram (SLD) or detailed specifications of the required items.



3.What are your delivery and after-sales services?

Delivery time depends on your order quantity, but for container orders, it usually takes 1-2 weeks. We also offer after-sales services, and as an ISO9001 and CCC certified enterprise, we provide long-life free maintenance and support from our technology and R&D teams.



4.What is your product warranty policy?

We offer long-life free maintenance for our products, and our technology and R&D teams are available to solve any possible or inevitable problems.



5.Do you provide OEM and ODM services?

Yes, we do.



6.What are your payment terms?

Our payment terms include 30% T/T in advance as a deposit, irrevocable L/C at sight for orders over $0.1 million, negotiable terms for old business partners, and T/T, Western Union, Alibaba Pay, and Alibaba Trade Assurance for samples.



7.How can I visit your company?

Our company is located in Chongqing City, China, and we can provide an invitation letter if needed.





Material



1.The cabinet door adopts a double beveled edge process, which increases the structural strength of the same material by 50%.



2.The installation holes are all made using a multi-layer stamping and stretching process, which reduces the sliding wire situation by more than 80%.



3.The inlet and outlet holes adopt a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.



4.The box adopts a double folding process, which increases the structural strength of the same material by 50%.



5.The control circuit adopts a composite design of debugging mode and fire protection mode, greatly reducing the burning of fan and water pump equipment designed for fire protection during debugging.
