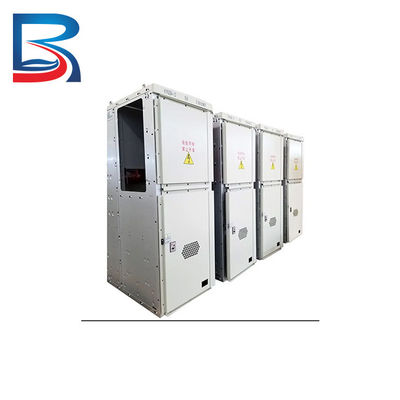

Withdrawable Metal Clad Outdoor 11KV Ring Main Unit Three Phase

Withdrawable Metal Clad Outdoor 11KV Ring Main Unit Three Phase

  • Withdrawable Metal Clad Outdoor 11KV Ring Main Unit Three Phase
  • Withdrawable Metal Clad Outdoor 11KV Ring Main Unit Three Phase
Withdrawable Metal Clad Outdoor 11KV Ring Main Unit Three Phase
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: 11KV Ring Main Unit Rated Voltage: 12KV,40.5kV,36kV,0.4kV
Rated Current: 630A,1600A,2000A,2500A,4000A,1 Material: Steel,galvanized Sheet Etc.,galvanized Steel Or Aluminum
Color: As Required Payment: T/T L/C
High Light:

Withdrawable Metal Clad 11KV Ring Main Unit

,

11KV Ring Main Unit for Commercial Buildings

,

Withdrawable Outdoor 11KV Ring Main Unit

Withdrawable Metal Clad Outdoor 11KV Ring Main Unit for Commercial Buildings





Product Purpose


This product is suitable for three-phase  40.5kV single switchgear, used in power generation plants, substations, industrial and mining enterprises, and high-rise building distribution systems as a means of receiving and distributing electrical energy. It is also used for controlling, protecting, and monitoring electrical circuits, meeting the requirements of IEC60298, DL404, and other standards, and having perfect "five-proof" functions.





Operating Conditions



  • Ambient air temperature: upper limit +40℃, lower limit -10℃.
  • Altitude: not exceeding 1000m.
  • Humidity:

Relative humidity: daily average not greater than 95%, monthly average not greater than 90%.
Saturated vapor pressure: daily average not greater than 2.2×10 Mpa, monthly average not greater than 1.8×10 Mpa.

  • Seismic intensity not exceeding 8 degrees.

Ambient air should not be subject to significant pollution such as corrosive, flammable gases, water vapor, etc.
No frequent severe vibration.
If the conditions of use of the switchgear exceed the above regulations, they should be determined through consultation between the user and the manufacturer.





Product Features



The switchgear adopts heat shrinkable insulation materials and epoxy-coated insulation technology, optimizes the electrode shape, and has a compact cabinet structure, which reduces the floor space.
The switchgear cabinet body is made of high-quality cold-rolled steel and processed into shape by CNC sheet metal, connected by high-strength bolts, nuts, and rivet nuts, and the surface of the components is sprayed or galvanized.
Domestic ZN85-40.5 vacuum circuit breakers and French SF1, SF2, and FP system sulfur hexafluoride circuit breakers can be used to meet the needs of different users.
Each functional compartment of the switchgear is sealed with a metal plate and has an independent pressure release channel.
The operation of the circuit breaker, grounding switch, etc. can be performed with the switchgear closed, and the door can be closed when the operation is complete.
The structure of the switchgear has strong adaptability, and the main busbar scheme can reach more than 198 types, which can meet the needs of different users.
There is a mechanical interlocking device between the handcart, circuit breaker, grounding switch, and rear cabinet door to prevent misoperation, and the "five-proof" functions are complete, safe, and reliable.



Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





The switchgear is designed to provide reliable and safe distribution of electrical energy in power generation plants, substations, industrial and mining enterprises, and high-rise building distribution systems. It is equipped with advanced technology and components to ensure efficient and safe operation of the electrical system.

One of the key features of the KYN61-40.5 switchgear is its compact design. The use of heat shrinkable insulation materials and epoxy-coated insulation technology, as well as the optimization of the electrode shape, allows for a more compact cabinet structure, which reduces the floor space required for installation.

In addition to its compact design, the switchgear cabinet body is made of high-quality cold-rolled steel, which is processed into shape by CNC sheet metal and connected by high-strength bolts, nuts, and rivet nuts. The surface of the components is sprayed or galvanized to provide excellent corrosion resistance and durability.

The switchgear is also designed to meet the needs of different users. It can use both domestic ZN85-40.5 vacuum circuit breakers and French SF1, SF2, and FP system sulfur hexafluoride circuit breakers. The main busbar scheme can reach more than 198 types, providing strong adaptability to different user needs.

Safety is a top priority in the design of the switchgear. Each functional compartment of the switchgear is sealed with a metal plate and has an independent pressure release channel. The mechanical interlocking device between the handcart, circuit breaker, grounding switch, and rear cabinet door prevents misoperation, and the "five-proof" functions ensure complete safety and reliability.

The KYN61-40.5 switchgear has a rated voltage of 40.5KV, a rated frequency of 50Hz, and a rated current of the main busbar of 1250A, 1600A, or 2000A. The rated current of the branch busbar is 630A, 1250A, or 1600A. The switchgear is also equipped with a rated insulation level that includes power frequency withstand voltage and lightning impulse withstand voltage.
