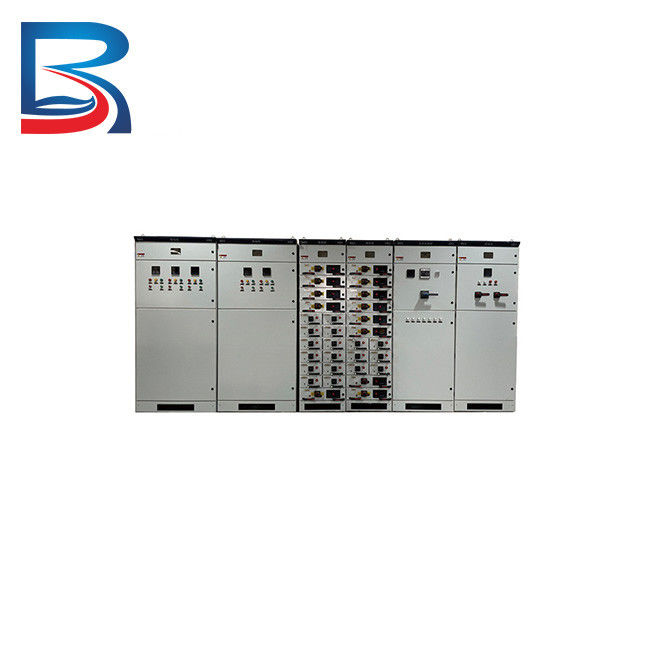

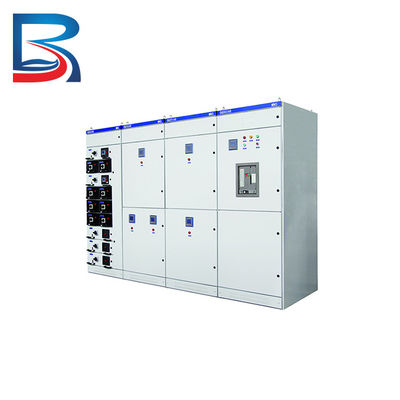

11KV GIS High Tension Main Low Voltage Switchboard for Power Generation

11KV GIS High Tension Main Low Voltage Switchboard for Power Generation

  • 11KV GIS High Tension Main Low Voltage Switchboard for Power Generation
  • 11KV GIS High Tension Main Low Voltage Switchboard for Power Generation
11KV GIS High Tension Main Low Voltage Switchboard for Power Generation
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Main Low Voltage Switchboard Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

11KV GIS High Tension Main Low Voltage Switchboard for Power Generation







Product Description

  • The switchboard is designed for use in power generation systems, specifically for managing high voltage (11KV) and low voltage power distribution.
  • The switchboard uses Gas Insulated Switchgear (GIS) technology to provide advanced insulation and protection against electrical faults.
  • The switchboard is designed to be compact and modular, making it easy to install and maintain.
  • The switchboard can be customized to meet specific customer requirements, such as the number of incoming and outgoing circuits and the type of protection devices used.
  • The switchboard is designed to be compatible with a wide range of generators and other electrical equipment commonly used in power generation systems.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Production Facilities



11KV GIS High Tension Main Low Voltage Switchboard for Power Generation 0





FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.





Team Show



11KV GIS High Tension Main Low Voltage Switchboard for Power Generation 1



1.Professional team



2.Comprehensive services



3.Strict quality control



4.Comprehensive inspection



5.Responsibility guarantee
