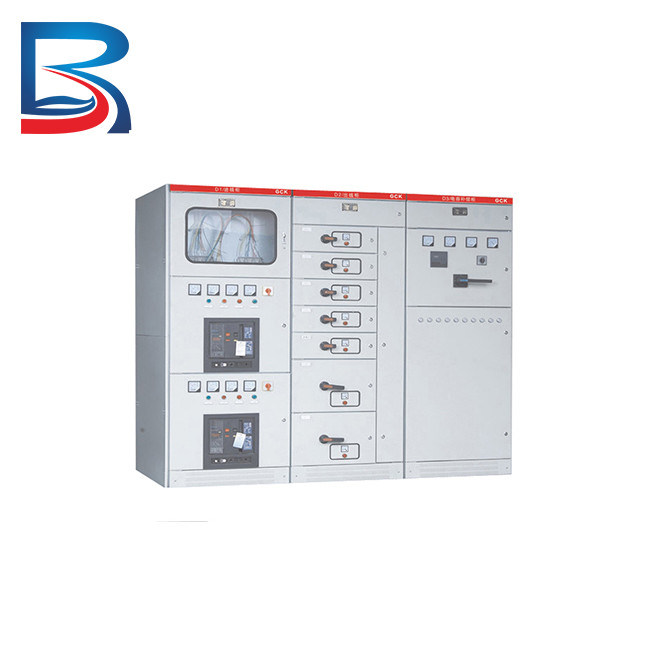

Air Insulated Current 6300A LV and MV Panels for Electrical Grid Systems

Air Insulated Current 6300A LV and MV Panels for Electrical Grid Systems

  • Air Insulated Current 6300A LV and MV Panels for Electrical Grid Systems
  • Air Insulated Current 6300A LV and MV Panels for Electrical Grid Systems
Air Insulated Current 6300A LV and MV Panels for Electrical Grid Systems
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: LV And MV Panels Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

Air Insulated Current 6300A LV and MV Panels for Electrical Grid Systems





Product Description

  • The panels are designed to handle high current loads up to 6300A, making them suitable for use in medium voltage (MV) and low voltage (LV) applications.
  • The panels use air insulation, which means that they do not require any insulating materials such as oil or gas. This makes them a more environmentally friendly option.
  • The panels are designed to be compact and modular, making them easy to install and maintain.
  • The panels can be customized to meet specific customer requirements, such as the number of outgoing circuits and the type of protection devices used.
  • The panels are suitable for a wide range of applications, including power generation, transmission, and distribution, as well as industrial and commercial applications.

Apart from electrical grid systems, Air Insulated Current 6300A LV and MV Panels can be used in various other applications, such as:

  1. Data centers and server rooms, where they can be used to power critical IT equipment.
  2. Hospitals and healthcare facilities, where they can be used to power medical equipment and support critical care operations.
  3. Manufacturing facilities, where they can be used to power production equipment and control systems.
  4. Renewable energy installations, where they can be used to manage the flow of power generated by wind turbines, solar panels, and other renewable sources.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Company Profile



Air Insulated Current 6300A LV and MV Panels for Electrical Grid Systems 0



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."





Team Show



Air Insulated Current 6300A LV and MV Panels for Electrical Grid Systems 1



1.Professional team



2.Comprehensive services



3.Strict quality control



4.Comprehensive inspection



5.Responsibility guarantee




Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation
