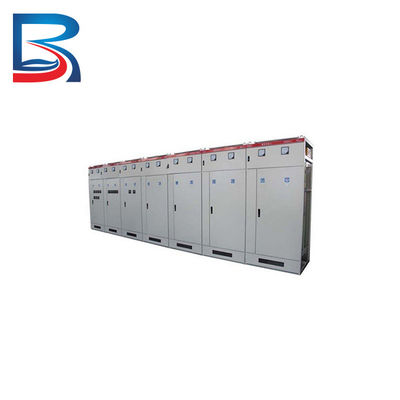

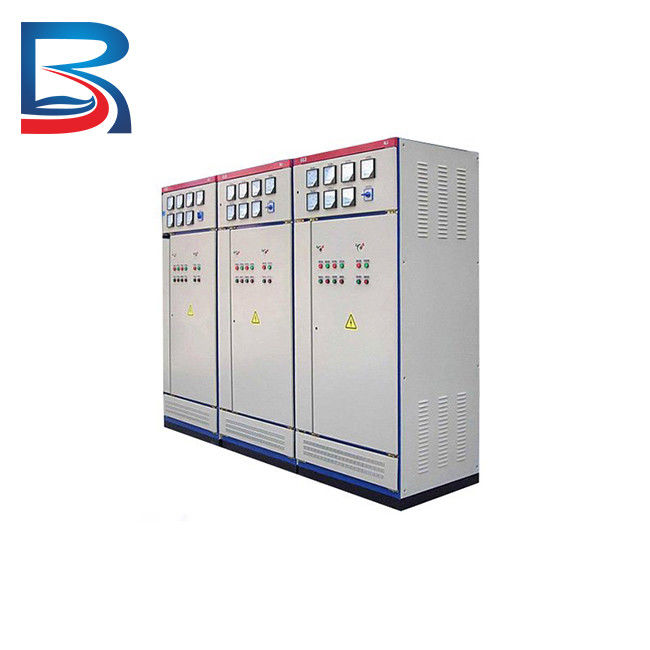

GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems

GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems

  • GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems
  • GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems
GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Low Voltage Metal Clad Switchgear Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems





Product Description



GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems is a type of combination switchgear with technology that has reached international standards. They are suitable for use in substations, power plants, petrochemicals, metallurgical rolling, transportation energy, light textile industry, residential areas, high-rise buildings, and other applications. They are used for power energy conversion, distribution, and control of distribution equipment rated for AC 50/60Hz and 690V or below, and are in accordance with IEC60439 standards for low-voltage withdrawable switchgear.



The following are the conditions for using low-voltage switchgear:

  • Ambient temperature: -30°C to +50°C, with an average RH measurement within 24 hours not exceeding +50°C.
  • Altitude: not exceeding 2000m above sea level.
  • Environmental humidity: daily average RH <95%; monthly average RH <90%.
  • Seismic intensity: less than 8 degrees.
  • Water vapor pressure: daily average RH ≤2.2kPa; monthly average RH ≤1.8kPa.
  • Usage environment: no fire, explosion hazards, severe pollution, chemical corrosion, and severe vibration places.

In summary, GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems is a versatile and reliable solution for power energy conversion, distribution, and control. They can operate under various environmental conditions with high safety and reliability, and are in accordance with international standards, making them an ideal choice for a wide range of applications.





Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Production Facilities



GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems 0





Packing



GIS Low Voltage Metal Clad Switchgear for Highway and for Distribution Systems 1





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation
