4 Phase Rated Current 2000A Metal Enclosed 11KV GIS Low Voltage Switchgear

4 Phase Rated Current 2000A Metal Enclosed 11KV GIS Low Voltage Switchgear

  • 4 Phase Rated Current 2000A Metal Enclosed 11KV GIS Low Voltage Switchgear
  • 4 Phase Rated Current 2000A Metal Enclosed 11KV GIS Low Voltage Switchgear
4 Phase Rated Current 2000A Metal Enclosed 11KV GIS Low Voltage Switchgear
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: 11KV GIS Low Voltage Switchgear Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

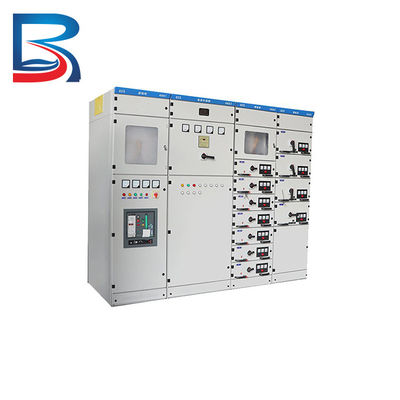

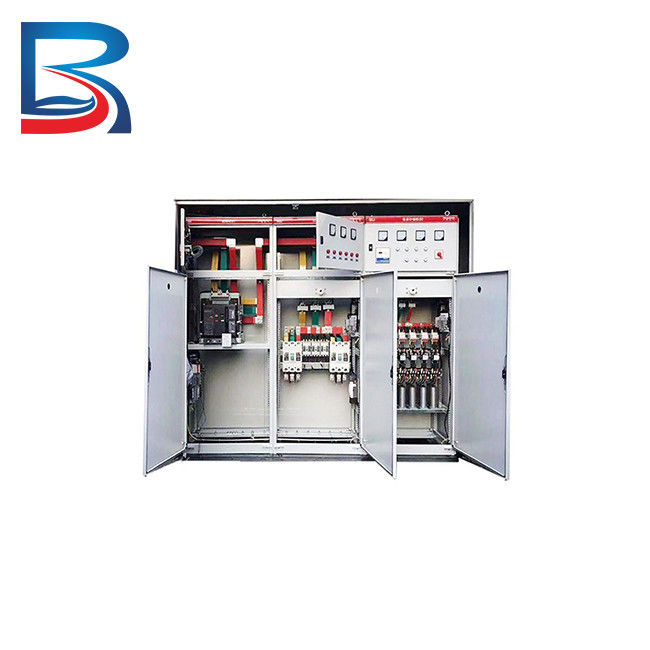

4 Phase Rated Current 2000A Metal Enclosed 11KV GIS Low Voltage Switchgear





Product Description





It consists of modular cubicles that house the electrical components. The components are mounted on draw-out carriages that can be withdrawn for maintenance or replacement without de-energizing the entire switchgear.

• The switchgear includes components like circuit breakers, switches, busbars, protective relays, instruments and control devices.

• It allows for easy access, operation, maintenance and replacement of components while the switchgear is energized. The withdrawable units can be safely isolated and removed for testing or repair.

• The modular design provides flexibility for future expansions by simply adding new cubicles.

• It has a compact design to save space while offering high performance, reliability and safety. The sealed construction protects the components from dust, moisture and contamination.

• Advanced insulation materials are used to withstand high internal temperatures and dielectric stresses.

• Safety shutters provide isolation and protection when panels are opened for maintenance. Interlocks prevent access to live parts when shutters are open.

So in summary, low-voltage draw-out switchgear combines modularity, accessibility, reliability, safety and flexibility in a compact design suited for demanding industrial and commercial applications. The key benefits come from the withdrawable units that allow live maintenance and servicing.







Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Production Facilities



4 Phase Rated Current 2000A Metal Enclosed 11KV GIS Low Voltage Switchgear 0





Packing



4 Phase Rated Current 2000A Metal Enclosed 11KV GIS Low Voltage Switchgear 1





Material



  1. The cabinet door undergoes a double beveled edge process, doubling its structural strength with the same material.
  2. The installation holes all utilize a multi-layer stamping and stretching process, minimizing wire dislocation by over 80%.
  3. The inlet and outlet holes employ a composite structure of knockdown holes and square holes, allowing flexible selection during on-site installation.
  4. The box undergoes a double folding procedure, doubling its structural strength with the same material.
  5. The control circuit adopts a composite design of commissioning mode and fire protection mode, greatly reducing the burning of fan and water pump equipment intended for fire protection during commissioning.
