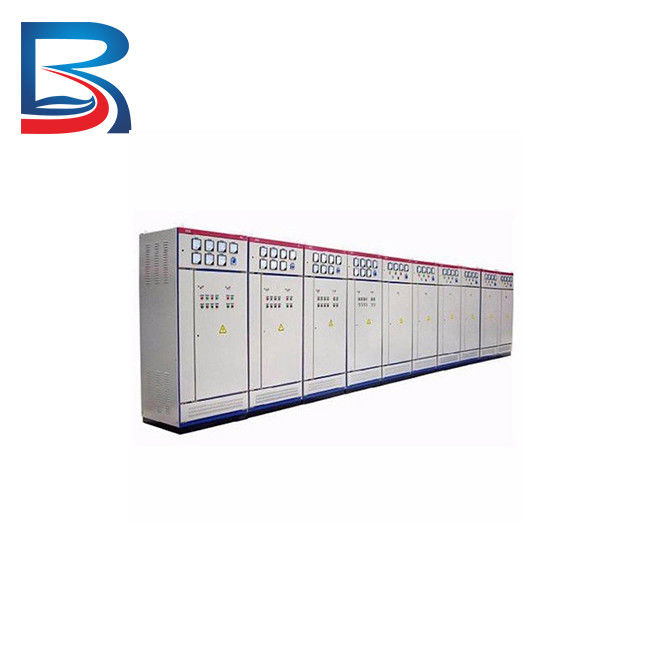

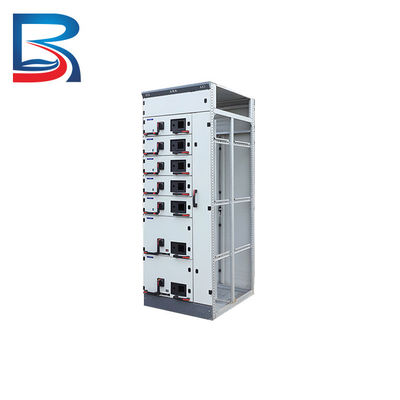

IP4X IP65 Gas Insulated Rated Current 2000A 6.6 KV Low Voltage Switchgear

IP4X IP65 Gas Insulated Rated Current 2000A 6.6 KV Low Voltage Switchgear

  • IP4X IP65 Gas Insulated Rated Current 2000A 6.6 KV Low Voltage Switchgear
  • IP4X IP65 Gas Insulated Rated Current 2000A 6.6 KV Low Voltage Switchgear
IP4X IP65 Gas Insulated Rated Current 2000A 6.6 KV Low Voltage Switchgear
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: 6.6 KV Low Voltage Switchgear Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

IP4X IP65 Gas Insulated Rated Current 2000A 6.6 KV Low Voltage Switchgear





Product Description



Low voltage switchgear provides a range of benefits that improve electrical systems holistically. Its safety features include enclosed live parts, quick fault detection, and interlocks to prevent exposure to live parts during maintenance. The reliability of low voltage switchgear is ensured through tested and rated components, redundancy and backup systems, and strict quality control procedures.

Efficiency is improved by distributing power at lower voltages, load shedding, power factor correction, and voltage regulation. Customization is possible with a wide range of components, modular design, and scalability for small to large applications.

Energy efficiency is also improved through the integration of renewable energy sources, energy storage systems, and monitoring and metering devices. Overall, low voltage switchgear is a robust solution for electrical distribution that combines safety, reliability, efficiency, customization, and energy efficiency.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Company Profile



IP4X IP65 Gas Insulated Rated Current 2000A 6.6 KV Low Voltage Switchgear 0



1.Chongqing Bosun Electrical Co., Ltd. was founded in 1996 and is located in Banan District, Chongqing, China, occupying 8,000 square meters with convenient transportation.

2.The company specializes in the complete research and development, manufacturing, installation, and sales of high and low voltage switchgear and control equipment ranging from 40.5kV to 0.22kV.

3.The company has more than 20 CCC/CQC certificates, meets the highest protection standard of IP65, operates at an altitude of 4500 meters, and has obtained the GB/T19001:2016 /ISO9001:2015 quality management system certification.

4.The company has a complete product development department and design team.

5.The company utilizes specialized computer mechanical and electrical CAD design software systems to design various types of product construction and manufacturing.

6.The company has complete surveillance, measuring, and testing equipment to ensure high-quality products.

7.The company has a complete production line, including CNC processing equipment, welding equipment, hoisting equipment, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.

8.The company has more than ten product invention patents and utility model patents.

9.The company provides excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."



Material



1.The cabinet door is designed with a double beveled edge process, which increases the structural strength of the same material by 50%.

2.All installation holes are made using a multi-layer stamping and stretching process, reducing the sliding wire situation by over 80%.

3.The inlet and outlet holes use a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.



Advantages



1.Excellent quality



2.24 hour service



3.Professional design



4.Advanced technique



5.Rapid delivery
