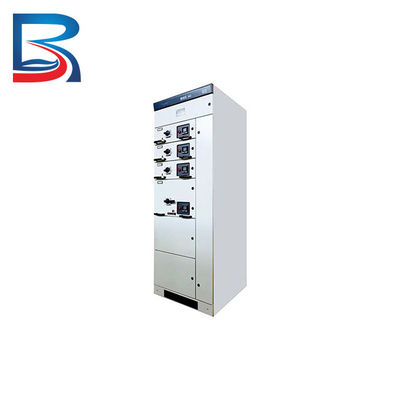

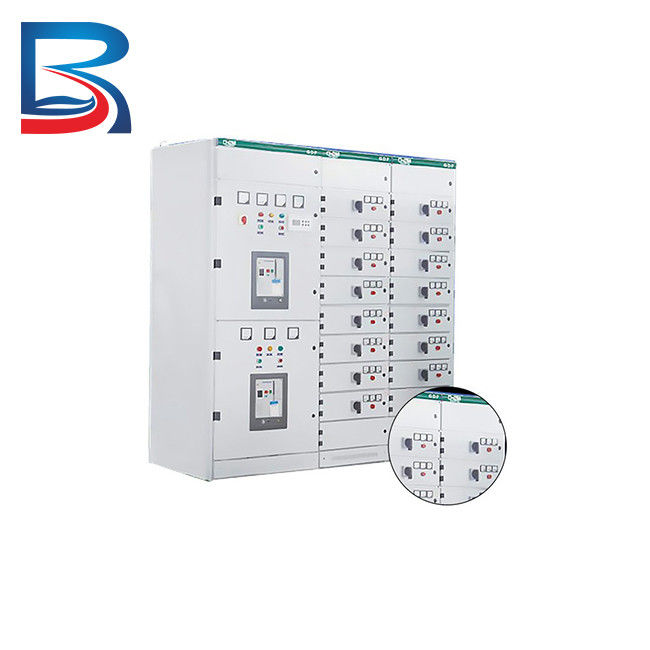

Rated Voltage 6.6KV LV and HV Drawout Air Insulated Low Voltage Switchgear

Rated Voltage 6.6KV LV and HV Drawout Air Insulated Low Voltage Switchgear

  • Rated Voltage 6.6KV LV and HV Drawout Air Insulated Low Voltage Switchgear
  • Rated Voltage 6.6KV LV and HV Drawout Air Insulated Low Voltage Switchgear
Rated Voltage 6.6KV LV and HV Drawout Air Insulated Low Voltage Switchgear
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Air Insulated Low Voltage Switchgear Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

Rated Voltage 6.6KV LV and HV Drawout Air Insulated Low Voltage Switchgear​





Product Description

  • Air insulation: This type of switchgear uses air as the insulation medium between the electrical components. This eliminates the need for insulating oil or gas and reduces the risk of insulation failure.
  • Compact design: The switchgear has a compact and modular design, which makes it easy to install and maintain in limited spaces.
  • Customization: Air Insulated Low Voltage Switchgear can be customized with various options for circuit breakers, busbars, relays, and other components to meet specific application needs.
  • Safety features: The switchgear includes safety features such as interlocks, grounding switches, and physical barriers to prevent exposure to live parts during maintenance.
  • Reliability: The switchgear utilizes high-quality components and manufacturing processes, with rigorous testing and quality control procedures to ensure reliable performance.
  • Energy efficiency: Air Insulated Low Voltage Switchgear includes features such as load shedding, power factor correction, and voltage regulation to optimize energy use and reduce operating costs.

In summary, Air Insulated Low Voltage Switchgear is a reliable and cost-effective solution for low voltage electrical distribution. It provides high levels of safety, flexibility, and energy efficiency, making it suitable for use in industrial facilities, commercial buildings, and other applications where low voltage power distribution is required.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Design



Rated Voltage 6.6KV LV and HV Drawout Air Insulated Low Voltage Switchgear 0





Company Profile



Rated Voltage 6.6KV LV and HV Drawout Air Insulated Low Voltage Switchgear 1





1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."





Team Show



Rated Voltage 6.6KV LV and HV Drawout Air Insulated Low Voltage Switchgear 2





1.Professional team



2.Comprehensive services



3.Strict quality control



4.Comprehensive inspection



5.Responsibility guarantee
