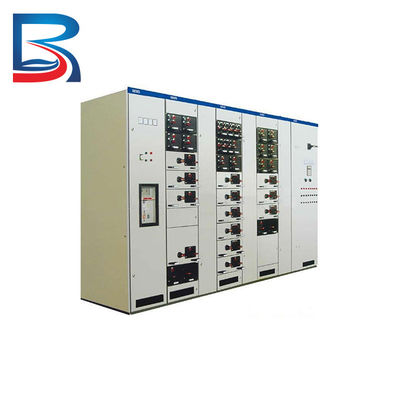

Drawout Outdoor Type Low Voltage Electrical Distribution Cabinet ISO9001

Drawout Outdoor Type Low Voltage Electrical Distribution Cabinet ISO9001

  • Drawout Outdoor Type Low Voltage Electrical Distribution Cabinet ISO9001
  • Drawout Outdoor Type Low Voltage Electrical Distribution Cabinet ISO9001
Drawout Outdoor Type Low Voltage Electrical Distribution Cabinet ISO9001
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Electrical Distribution Cabinet Color: As Required
ODM/OEM: Accepted Certificate: ISO9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Drawout Outdoor Electrical Distribution Cabinet

,

Electrical Distribution Cabinet ISO9001

,

Drawout Outdoor low voltage distribution cabinet

Drawout Outdoor Type Industrial Electrical Electrical Distribution Cabinet​





Product Description



  • Circuit breaker panels: These house circuit breakers that protect and control electrical circuits. They are used to distribute power to outlets and lights in the structure.
  • Switchboards: These are similar to circuit breaker panels but typically handle higher currents and voltages (up to 600 volts). They distribute power from the utility service entrance to circuit breaker panels.
  • Motor control centers: These house circuit breakers and controllers to distribute power and control electrical motors used in the structure.
  • Dry-type transformers: These step up or down voltages within the structure. They are air cooled and enclosed in metal boxes or cabinets.
  • Transfer switches: These are used to switch the power source between the utility power and a backup generator. They allow a generator to power critical circuits during power outages.
  • Switchgears typically use circuit breakers or fuses for overcurrent protection, busbars to distribute power, and cabinets or enclosures to house the components. Low voltage generally refers to up to 600 volts, which is considered safe to work on with proper safety precautions.

In summary, the main types of low voltage switchgear deal with power distribution, circuit protection and control, motor control, and backup power sources. The specific components like circuit breakers, transformers, switches and controllers vary based on the particular application.

Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.





Company Profile



Drawout Outdoor Type Low Voltage Electrical Distribution Cabinet ISO9001 0



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."





Marketing



Drawout Outdoor Type Low Voltage Electrical Distribution Cabinet ISO9001 1



Our business scope covers 6 continents and over 50 countries.
