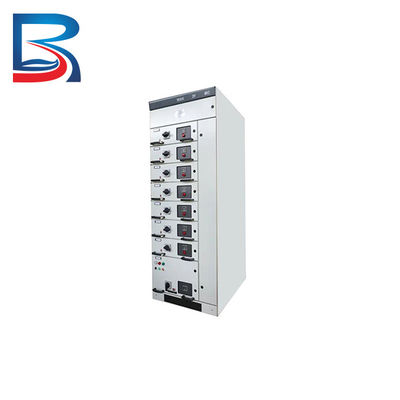

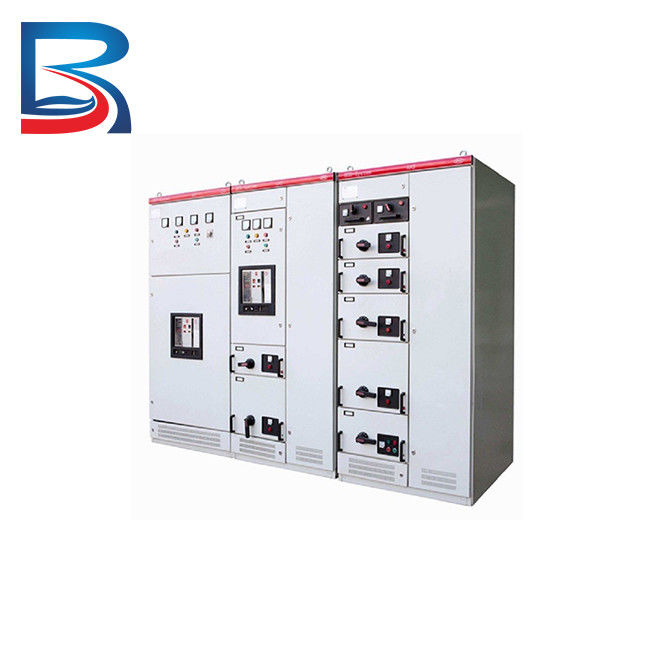

11KV 15KV 20KV Withdrawable Electrical Distribution LV Switchgear Panel for Data Centers

11KV 15KV 20KV Withdrawable Electrical Distribution LV Switchgear Panel for Data Centers

11KV 15KV 20KV Withdrawable Electrical Distribution LV Switchgear Panel for Data Centers
11KV 15KV 20KV Withdrawable Electrical Distribution LV Switchgear Panel for Data Centers
11KV 15KV 20KV Withdrawable Electrical Distribution LV Switchgear Panel for Data Centers
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Electrical Distribution Panel Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

11KV 15KV 20KV Electrical Distribution Panel

,

20KV Withdrawable Electrical Distribution Panel

,

15KV Withdrawable lv switchgear panel

11KV 15KV 20KV Withdrawable Electrical Distribution Panel for Data Centers



Product Description



  • Fixed-mounted switchgear - Fixed-mounted switchgear is a type of switchgear that is permanently installed in a fixed position and cannot be moved. It is typically used in applications where space is limited, such as in industrial or commercial buildings.
  • Withdrawable switchgear - Withdrawable switchgear is a type of switchgear that can be easily removed from its installation location for maintenance or repair. It consists of modules that can be inserted or removed from the switchgear structure without the need for any tools.
  • Modular switchgear - Modular switchgear is a type of switchgear that consists of separate modules that can be combined to create a customized switchgear solution. It is typically used in applications where flexibility and scalability are important, such as in data centers or industrial facilities.
  • Low-voltage switchboards - Low-voltage switchboards are a type of switchgear that are used to distribute power to various loads in a building or facility. They typically contain multiple circuit breakers or other protective devices, and can be used to isolate power to specific areas or equipment.
  • Motor control centers (MCCs) - MCCs are specialized switchgear assemblies that are used to control and protect electric motors. They typically contain multiple contactors, circuit breakers, and other protective devices, and can be used to monitor and control motor performance.
  • Busway systems - Busway systems are a type of switchgear that are used to distribute power over short distances, typically within a building or facility. They consist of a conductor enclosed in a metal housing, and can be used to supply power to multiple loads or equipment.
  • Power control centers (PCCs) - PCCs are a type of switchgear that are used to control and monitor electrical power distribution in large industrial facilities. They typically contain multiple switchboards, switchgear, and other devices, and can be used to manage power distribution across the facility.

Overall, the specific type of low voltage switchgear structure used depends on the application and load requirements, with each type offering different benefits and capabilities.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation





Production Facilities



11KV 15KV 20KV Withdrawable Electrical Distribution LV Switchgear Panel for Data Centers 0
