Place of Origin: | Chongqing |
Brand Name: | Bosun |
Certification: | ISO9001, CE, CQC,CCC |
Minimum Order Quantity: | 1 |
---|---|
Price: | 999 - 9999 USD |
Packaging Details: | Wooden case |
Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 2000 PCS per Month |
Product Name: | Electrical Panel Board | Color: | As Required |
---|---|---|---|
ODM/OEM: | Accepted | Certificate: | ISO,9001 CQC,CCC,CE |
Payment: | T/T L/C | Packing: | Wooden Case |

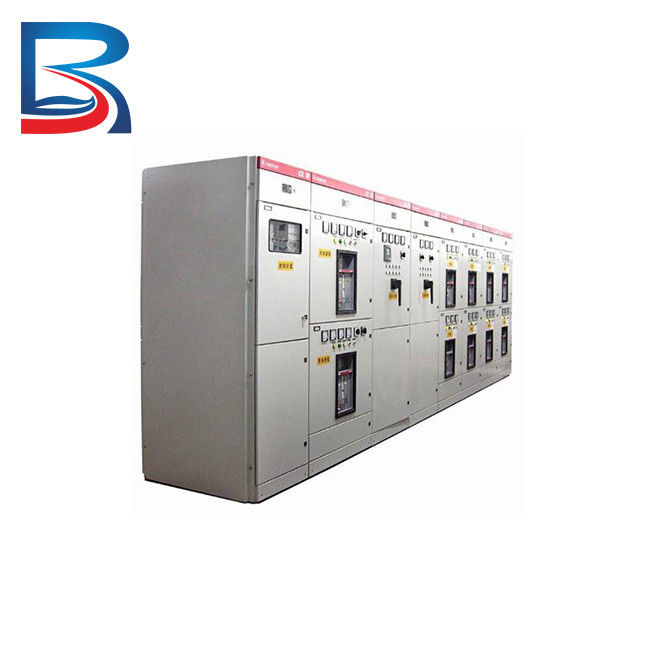

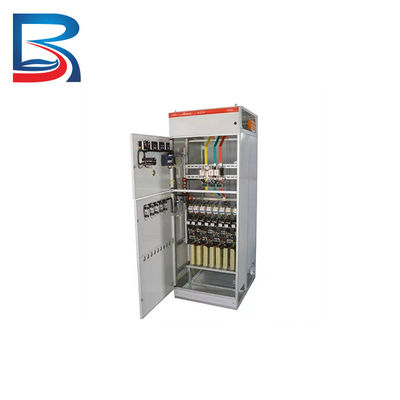

IP4X IP65 Main Low Voltage Electrical Panel Board for Power Generation
Product Description
1.What is a low voltage switchgear and what is its function?
A low voltage switchgear is a device used in electrical systems to distribute electrical power from the main source to various loads in the system. It also provides power control, protection, and monitoring functions to ensure the safe and efficient operation of the electrical system.
2.How does a low voltage switchgear work?
A low voltage switchgear typically consists of multiple circuit breakers or switches that control the flow of electrical power to different parts of the system. It may also include busbars, which are conductive bars used to distribute power to different areas of the system. The switchgear also contains protective devices such as circuit breakers, fuses, and relays that detect and isolate faults in the electrical system to prevent equipment damage and ensure personnel safety.
3.What are the applications of low voltage switchgear?
Low voltage switchgears are widely used in various applications, including commercial buildings, industrial plants, substations, data centers, renewable energy systems, ships, and transportation. They are essential components of electrical systems, providing power distribution, control, and protection functions to ensure the safe and efficient operation of the system.
4.What are the advantages of low voltage switchgear?
The advantages of low voltage switchgear include reliable power distribution and control, equipment and personnel protection, energy efficiency and optimization, real-time monitoring and control, flexible system configuration, and customization. These advantages help to improve the reliability, safety, efficiency, and sustainability of electrical systems, while reducing the total cost of ownership.
In conclusion, low voltage switchgear is an essential device in electrical systems, providing power distribution, control, protection, and monitoring functions to ensure the safe and efficient operation of the system. They have wide applications and advantages, making them a key component of electrical systems.
Specification
Rated Insulation voltage | 690V (1000)V |
Rated working voltage | 380V, 400V, 690V |
Maximum working current of main bus | 6300A |
Rated withstand current of main busbar | 100kA/1s |
Main busbar rated peak withstand current | 220kA/0.1s |
Maximum operating current of branch distribution bus (vertical bus) | 2000A |
Standard type | 105kA(Max)/0.1s |
Reinforced type | 176kA(Max)/0.1s |
Protection level | IP4X, IP41,IP65 |
Company Profile
1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.
2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.
3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,
4.A complete product development department, design team.
5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.
6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.
7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.
8.More than 10 product invention patents and utility model patents.
9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."
Design
Advantages
1.Excellent quality
2.24 hour service
3.Professional design
4.Advanced technique
5.Rapid delivery
