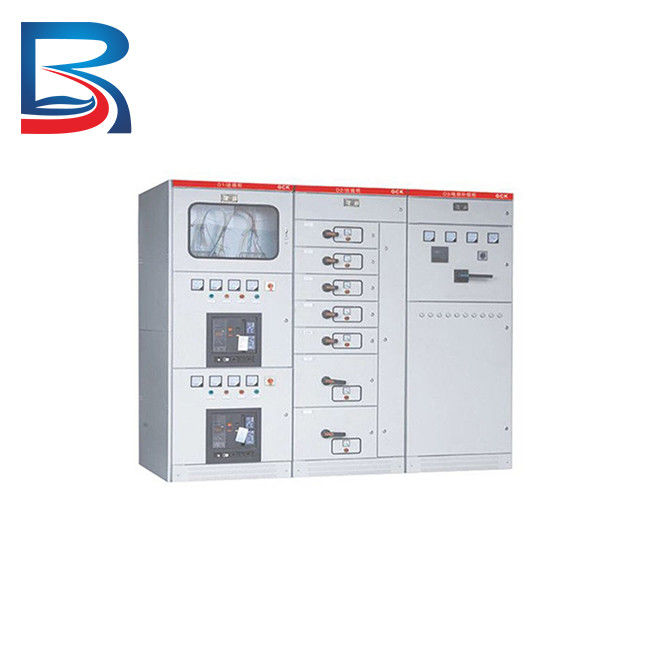

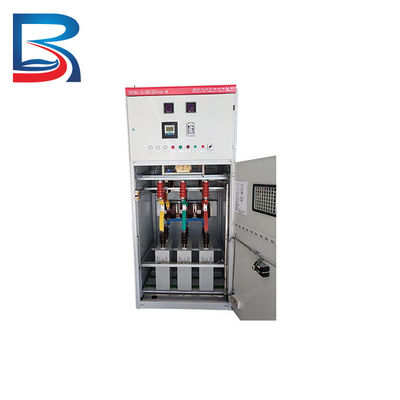

Low Tention SF6 Insulated Generator Paralleling Low Voltage Switchgear for Dock

Low Tention SF6 Insulated Generator Paralleling Low Voltage Switchgear for Dock

  • Low Tention SF6 Insulated Generator Paralleling Low Voltage Switchgear for Dock
  • Low Tention SF6 Insulated Generator Paralleling Low Voltage Switchgear for Dock
Low Tention SF6 Insulated Generator Paralleling Low Voltage Switchgear for Dock
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: GE Low Voltage Switchgear Distributors Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

Low Tention SF6 Insulated Generator Paralleling Low Voltage Switchgear for Dock





Applications and Functions



  1. Commercial Buildings: Low voltage switchgear is commonly used in commercial buildings such as shopping malls, hospitals, and office buildings to distribute power and control lighting, heating, and ventilation systems.
  2. Industrial Plants: The switchgear is used in industrial plants to distribute power to heavy machinery, motors, and other equipment. This includes a range of industries such as manufacturing, mining, and oil and gas.
  3. Substations: Low voltage switchgear is used in substations to distribute power from high-voltage transmission lines to lower voltage distribution networks.
  4. Data Centers: The switchgear is also commonly used in data centers to ensure reliable power distribution and protection for critical IT equipment.
  5. Renewable Energy Systems: Low voltage switchgear can be integrated with renewable energy systems such as solar and wind power to control and distribute energy generated by these sources.
  6. Marine and Offshore Applications: The switchgear is used in marine and offshore applications to distribute power to vessels, oil rigs, and other offshore structures.
  7. Transportation: Low voltage switchgear is used in transportation systems such as railways, airports, and seaports to control power distribution and lighting systems.

Overall, low voltage switchgear is a versatile and essential component of electrical systems in various applications. Its benefits include reliable power distribution and control, protection for electrical equipment and personnel, energy efficiency, and optimization.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Packing



Low Tention SF6 Insulated Generator Paralleling Low Voltage Switchgear for Dock 0





Company Profile



Low Tention SF6 Insulated Generator Paralleling Low Voltage Switchgear for Dock 1



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation
