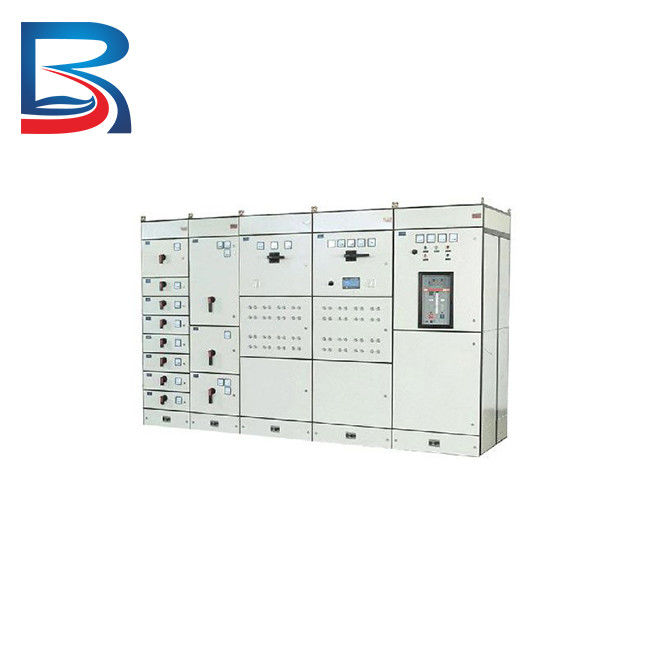

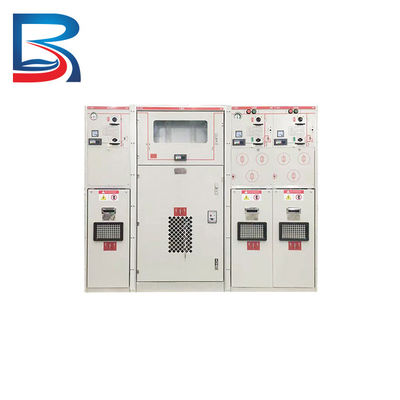

Outdoor 480V Protection Low Voltage Cabinet for Electrical Grid Systems

Outdoor 480V Protection Low Voltage Cabinet for Electrical Grid Systems

  • Outdoor 480V Protection Low Voltage Cabinet for Electrical Grid Systems
  • Outdoor 480V Protection Low Voltage Cabinet for Electrical Grid Systems
Outdoor 480V Protection Low Voltage Cabinet for Electrical Grid Systems
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Low Voltage Cabinet Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

Outdoor 480V Protection Low Voltage Cabinet for Electrical Grid Systems





Product Description



An Outdoor 480V Protection Low Voltage Cabinet is a type of electrical equipment designed to protect and control low voltage systems in electrical grid systems. These cabinets are typically installed outdoors and are designed to withstand harsh weather conditions.



The cabinets are constructed with a sturdy metal frame and are equipped with various components, including high-quality circuit breakers, fuses, and other protective devices, to ensure the safe and reliable operation of the electrical grid system.



The cabinets are also equipped with advanced monitoring and control systems, which allow operators to remotely monitor and manage the low voltage systems in real-time. This ensures that any issues or malfunctions can be quickly identified and addressed, reducing the risk of downtime and other costly disruptions.



Overall, Outdoor 480V Protection Low Voltage Cabinets play an essential role in ensuring the safe and efficient operation of electrical grid systems, and they are widely used in a variety of industries, including power generation, oil and gas, infrastructure, and construction.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Material



1.The cabinet door adopts a double beveled edge process, which increases the structural strength of the same material by 50%.



2.The installation holes are all made using a multi-layer stamping and stretching process, which reduces the sliding wire situation by more than 80%.



3.The inlet and outlet holes adopt a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.



4.The box adopts a double folding process, which increases the structural strength of the same material by 50%.



5.The control circuit adopts a composite design of debugging mode and fire protection mode, greatly reducing the burning of fan and water pump equipment designed for fire protection during debugging.





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation



FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.
