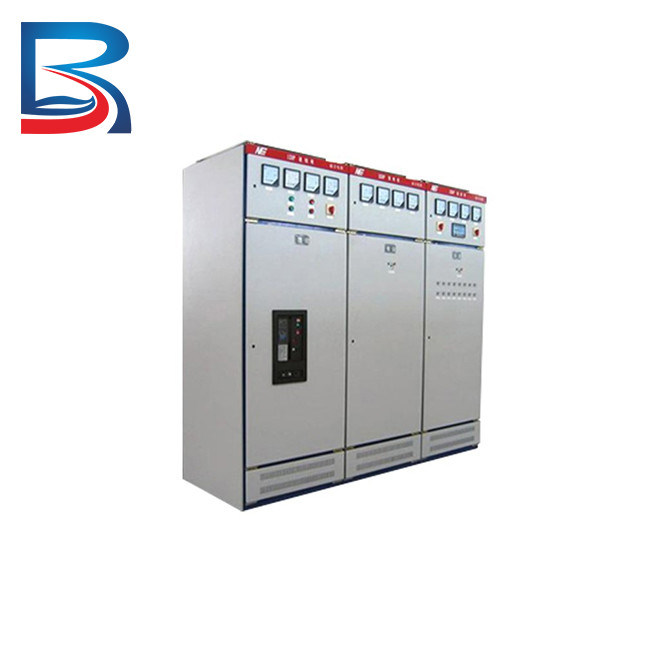

33KV GIS Switchgear LV Panel Board for Substations and for Electrical Grid Systems

33KV GIS Switchgear LV Panel Board for Substations and for Electrical Grid Systems

  • 33KV GIS Switchgear LV Panel Board for Substations and for Electrical Grid Systems
  • 33KV GIS Switchgear LV Panel Board for Substations and for Electrical Grid Systems
33KV GIS Switchgear LV Panel Board for Substations and for Electrical Grid Systems
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: LV Panel Board Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

33KV GIS LV Panel Board

,

33kv gis switchgear for Substations

,

Electrical Grid Systems 33kv gis switchgear

33KV GIS LV Panel Board for Substations and for Electrical Grid Systems





Product Description



  • Compared to medium voltage switchgear which operates at voltages up to 36 kilovolts, low voltage switchgear operates at voltages up to 1,000 volts, which is considered low voltage.
  • It offers protection against overcurrents, short circuits, and earth faults in electrical circuits and components to prevent damage and fires caused by electrical faults.
  • The busbars in low voltage switchgear are made of copper or aluminum and have a high current carrying capacity. They distribute power from incoming feeders to outgoing circuits.
  • Circuit breakers are used to open or close circuits and can interrupt fault currents automatically, which protects the rest of the electrical system from high currents caused by faults.
  • Low voltage switchgear includes components such as contactors, relays, and meters to control the flow of power and monitor electrical parameters. Some switchgear also has automation and remote monitoring capabilities.
  • Regular maintenance of low voltage switchgear is essential to ensure reliability and safety. This involves testing, cleaning, tightening connections, and replacing components when necessary.
  • Low voltage switchgear has safety features like interlocks, shutters, and partitions to prevent accidental contact with live parts and minimize arc flash hazards during normal operation and maintenance.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Why Choose US



33KV GIS Switchgear LV Panel Board for Substations and for Electrical Grid Systems 0



1.Our Expertise



2.Quality Products/Services



3.Competitive Pricing



4.Innovation



6.Possibles



7.Authorization by ABB Schneider Siemens





Advantages



1.Excellent quality



2.24 hour service



3.Professional design



4.Advanced technique



5.Rapid delivery





Marketing



33KV GIS Switchgear LV Panel Board for Substations and for Electrical Grid Systems 1

Our business scope covers 6 continents and over 50 countries.
