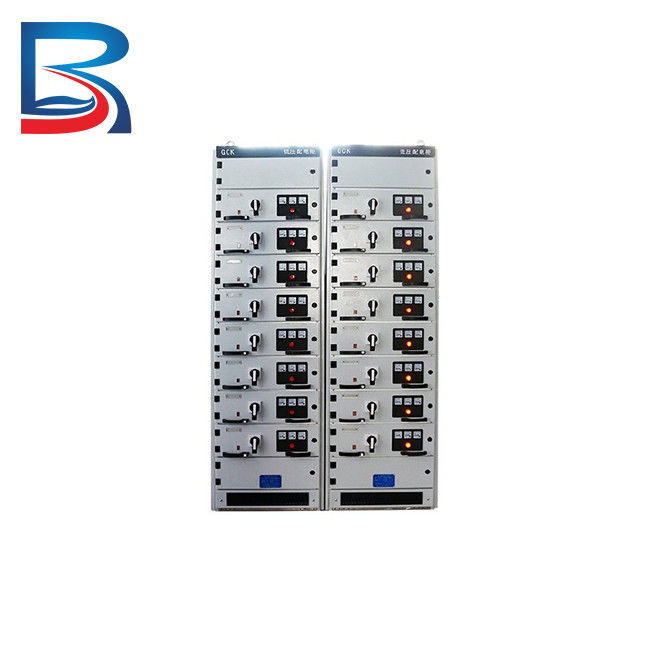

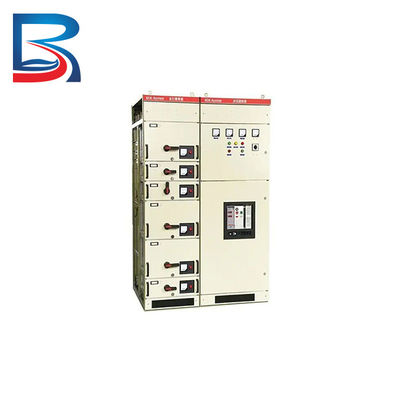

Metal Clad LV Panel Board 3 Phase Low Voltage Switchgear for Transmission

Metal Clad LV Panel Board 3 Phase Low Voltage Switchgear for Transmission

  • Metal Clad LV Panel Board 3 Phase Low Voltage Switchgear for Transmission
  • Metal Clad LV Panel Board 3 Phase Low Voltage Switchgear for Transmission
Metal Clad LV Panel Board 3 Phase Low Voltage Switchgear for Transmission
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: LV Panel Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

LV Panel Board for Transmission

,

3 Phase Metal Clad LV Panel Board

,

3 Phase Metal Clad Low Voltage Switchgear

3 Phase Metal Clad LV Panel Board Low Voltage Switchgear for Transmission





Product Description



It operates at voltages up to 1,000 volts. This is considered low voltage compared to medium voltage switchgear which operates at higher voltages up to 36 kilovolts.



• It provides overcurrent, short circuit and earth fault protection for electrical circuits and components. This helps prevent damage and fires caused by electrical faults.



• It has busbars that distribute power from incoming feeders to outgoing circuits. The busbars are made of copper or aluminum and have high current carrying capacity.



• The circuit breakers are used to open or close circuits and can interrupt fault currents automatically. This protects the rest of the electrical system from high currents caused by faults.



• Low voltage switchgear contains components like contactors, relays and meters to control the flow of power and monitor electrical parameters. Some switchgear also has automation and remote monitoring capabilities.



• Maintenance of low voltage switchgear is important to ensure reliability and safety. This includes regular testing, cleaning, tightening of connections and replacement of components when needed.



• There are safety features like interlocks, shutters and partitions to prevent accidental contact with live parts and minimize arc flash hazards during normal operation and maintenance.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Why Choose US



Metal Clad LV Panel Board 3 Phase Low Voltage Switchgear for Transmission 0



1.Our Expertise



2.Quality Products/Services



3.Competitive Pricing



4.Innovation



6.Possibles



7.Authorization by ABB Schneider Siemens





Engineering



Power generation plants to distribute and control electrical power within the plant.



• Substations to step down medium and high voltages to low voltages for distribution.



• Commercial buildings like offices, malls and hospitals to supply power to various electrical loads.



• Data centers to provide reliable and secure power to critical IT equipment and infrastructure.



• Renewable energy systems like solar farms and wind farms to integrate the generated power with the electrical grid.



• Transportation networks including railways, metro systems and airports to power systems like lighting, air conditioning, signalling and elevators.





FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.
