Place of Origin: | Chongqing |
Brand Name: | Bosun |
Certification: | ISO9001, CE, CQC,CCC |
Minimum Order Quantity: | 1 |
---|---|
Price: | 999 - 9999 USD |
Packaging Details: | Wooden case |
Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 2000 PCS per Month |
Product Name: | Main LV Switchboard | Color: | As Required |
---|---|---|---|
ODM/OEM: | Accepted | Certificate: | ISO,9001 CQC,CCC,CE |
Payment: | T/T L/C | Packing: | Wooden Case |

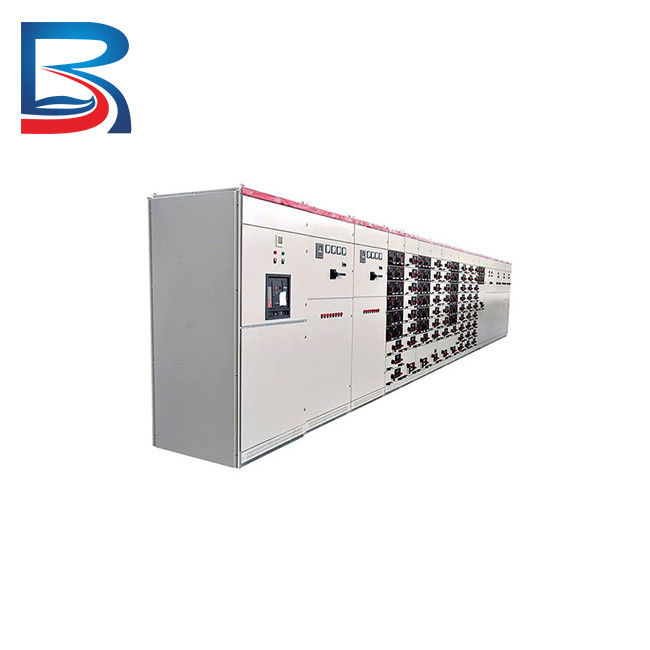

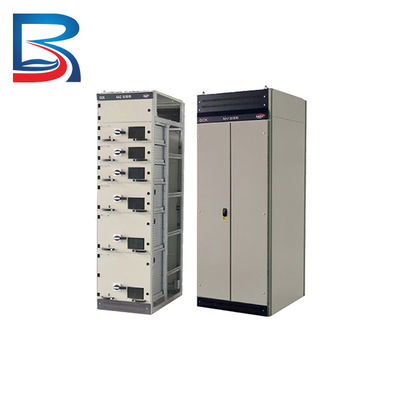

3 Phase Industrial Electrical Main LV Switchboard for Renewable Energy Systems
Product Description
Low voltage switchgear is an integral part of many electrical distribution systems, enabling control and protection for various electrical devices and equipment. The main components of low voltage switchgear include circuit breakers, fuses, busbars, relays and meters, which work together to regulate and safeguard the electrical system.
There are numerous advantages to utilizing low voltage switchgear, including enhanced safety, improved dependability, greater adaptability and reduced maintenance costs. It is used in a wide range of applications, like industrial manufacturing, commercial buildings, power plants, transportation networks and renewable energy systems.
There are several types of low voltage switchgear available, each designed for different purposes. Metal-enclosed switchgear is a popular choice for many uses, as it provides protection against electrical faults. Metal-clad switchgear is similar to metal-enclosed switchgear but is meant for higher voltage applications. Outdoor switchgear is made to operate in exterior environments and is usually waterproof and dustproof. Withdrawable switchgear allows for simple removal and replacement of components, while fixed switchgear is permanently installed and cannot be easily modified or expanded.
In summary, low voltage switchgear is an essential component of many electrical distribution systems, enabling control and protection for various electrical devices and equipment.
Specification
Rated Insulation voltage | 690V (1000)V |
Rated working voltage | 380V, 400V, 690V |
Maximum working current of main bus | 6300A |
Rated withstand current of main busbar | 100kA/1s |
Main busbar rated peak withstand current | 220kA/0.1s |
Maximum operating current of branch distribution bus (vertical bus) | 2000A |
Standard type | 105kA(Max)/0.1s |
Reinforced type | 176kA(Max)/0.1s |
Protection level | IP4X, IP41,IP65 |
Packing
Engineering
1.Power generation plants
2.Substations
3.Commercial buildings
4.Data centers
5.Renewable energy systems
6.Transportation
Production Facilities
Contact Person: admin
Tel: +8613983689655
