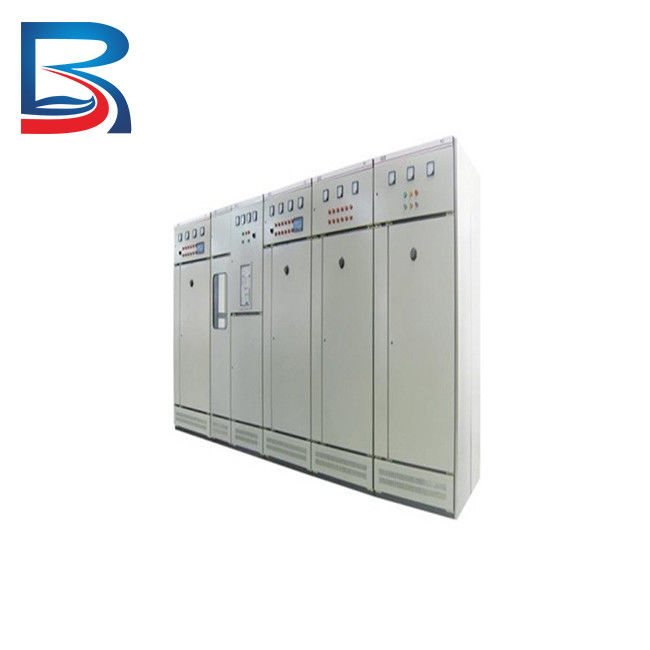

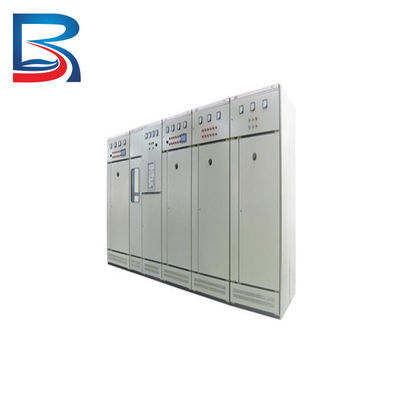

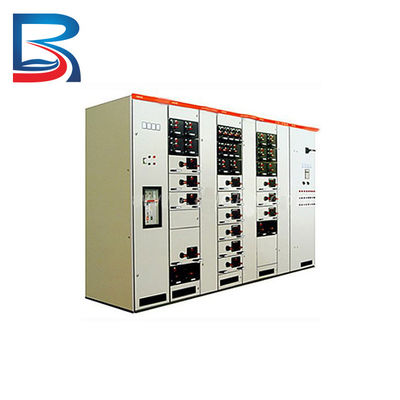

Withdrawable GIS MNS LV MCC Panel Low Voltage Switchgear for Marine

Withdrawable GIS MNS LV MCC Panel Low Voltage Switchgear for Marine

  • Withdrawable GIS MNS LV MCC Panel Low Voltage Switchgear for Marine
  • Withdrawable GIS MNS LV MCC Panel Low Voltage Switchgear for Marine
Withdrawable GIS MNS LV MCC Panel Low Voltage Switchgear for Marine
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: MCC Low Voltage Switchgear Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Withdrawable GIS MNS Low Voltage Switchgear

,

lv mcc panel For Marine

,

Withdrawable GIS MNS lv mcc panel

Withdrawable GIS MNS MCC Low Voltage Switchgear For Marine and Offshore





Product Description



Q: What is a drawer-type low-voltage switchgear?
A: A drawer-type low-voltage switchgear is a type of low-voltage electrical distribution equipment. It is characterized by its modular structure design, which makes it easy to maintain, replace, and upgrade. The main component of this equipment is the drawer, each of which can be individually disassembled and replaced without affecting the normal operation of other parts.



Q: What are the advantages of a drawer-type low-voltage switchgear?
A: The advantages of a drawer-type low-voltage switchgear include:

  • Modular structure design, which makes it easy to maintain and replace.
  • Drawer-type design, which allows for quick replacement without the need to shut down the entire system.
  • Equipped with indicators and displays that can show the system status in real-time, making it easy to operate and maintain.
  • Small footprint, easy installation, suitable for a variety of indoor locations.
  • Customizable design according to user needs to meet different application scenarios.



Q: What are the application fields of a drawer-type low-voltage switchgear?
A: A drawer-type low-voltage switchgear is widely used in the following fields:

  • Industrial manufacturing: for power control and distribution of various production equipment.
  • Commercial buildings: for power control and distribution in shopping malls, hotels, office buildings, etc.
  • Public facilities: for power control and distribution in subways, airports, train stations, etc.
  • New energy: for power control and distribution of wind power, photovoltaic and other power generation equipment.



Q: What are the technical parameters of a drawer-type low-voltage switchgear?
A: The technical parameters of a drawer-type low-voltage switchgear usually include the following aspects:

  • Rated voltage: generally 380V or 660V.
  • Rated current: selected according to user needs.
  • Short-circuit current withstand capability: selected according to user needs.
  • Protection level: generally IP30 or IP40.
  • Operating environment temperature: generally -5℃~+40℃.
  • Cable inlet and outlet methods: top or bottom inlet and outlet, selected according to user needs.
  • Rated frequency: generally 50Hz or 60Hz.



Q: What are the maintenance precautions for a drawer-type low-voltage switchgear?
A: The maintenance precautions for a drawer-type low-voltage switchgear include the following:

  • Regularly clean and inspect the equipment to promptly detect and solve problems.
  • Regularly check the status of cables, wiring, insulation and other parts to ensure the normal operation of the equipment.
  • Keep the environment around the equipment clean to avoid the influence of dust, water and other factors.
  • Avoid impact, vibration or strong electromagnetic interference on the equipment.
  • Regularly repair and replace components to ensure the long-term reliable operation of the equipment.



Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Packing



Withdrawable GIS MNS LV MCC Panel Low Voltage Switchgear for Marine 0





Company Profile​



Withdrawable GIS MNS LV MCC Panel Low Voltage Switchgear for Marine 1



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."







Payment and Delivery



Withdrawable GIS MNS LV MCC Panel Low Voltage Switchgear for Marine 2
