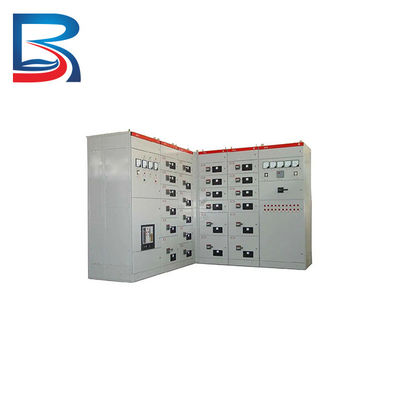

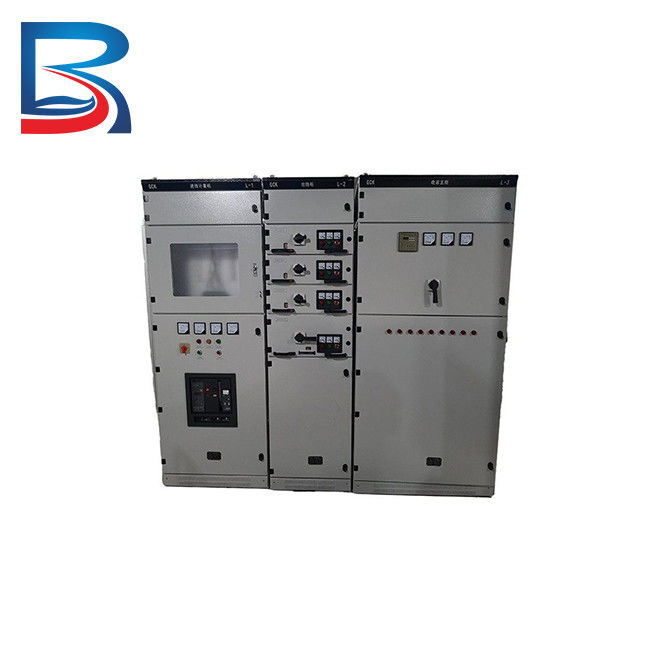

Industrial IP65 Electrical MNS Low Voltage Switchgear for Expressway

Industrial IP65 Electrical MNS Low Voltage Switchgear for Expressway

  • Industrial IP65 Electrical MNS Low Voltage Switchgear for Expressway
  • Industrial IP65 Electrical MNS Low Voltage Switchgear for Expressway
Industrial IP65 Electrical MNS Low Voltage Switchgear for Expressway
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: MNS Low Voltage Switchgear Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

IP65 Low Voltage Switchgear

,

IP65 mns low voltage switchgear

,

mns switchgear For Expressway

Industrial Waterproof Electrical MNS Low Voltage Switchgear for Expressway





Product Description



This switchgear is designed to meet the unique requirements of expressway environments, which can be challenging due to factors such as water, dust, and extreme temperatures. The switchgear is built to be waterproof and dustproof, with an IP65 rating that ensures it can withstand exposure to water and dust.



In addition to its rugged construction, the switchgear is also highly reliable and safe. It has various safety measures in place to prevent electrical accidents, and is designed to be highly reliable with a long service life. This reduces the need for frequent maintenance and repair, which can be difficult and costly in remote expressway locations.



The switchgear is also designed to be user-friendly and easy to operate, with a modular design that allows for easy expansion or modification to meet changing requirements. It is easy to install and maintain, which helps to reduce installation and maintenance costs.



Overall, the Industrial Waterproof Electrical MNS Low Voltage Switchgear for Expressway is an ideal solution for power distribution in expressway environments, providing reliable, safe, and efficient distribution of low voltage power to various expressway equipment.







Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Material



1.The cabinet door adopts a double beveled edge process, which increases the structural strength of the same material by 50%.



2.The installation holes are all made using a multi-layer stamping and stretching process, which reduces the sliding wire situation by more than 80%.



3.The inlet and outlet holes adopt a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.



4.The box adopts a double folding process, which increases the structural strength of the same material by 50%.



5.The control circuit adopts a composite design of debugging mode and fire protection mode, greatly reducing the burning of fan and water pump equipment designed for fire protection during debugging.





Marketing



Industrial IP65 Electrical MNS Low Voltage Switchgear for Expressway 0



Our business scope covers 6 continents and over 50 countries.





Company Profile



Industrial IP65 Electrical MNS Low Voltage Switchgear for Expressway 1



  1. Chongqing Bosun Electrical Co., Ltd. is situated in Banan District, Chongqing, China, covering an area of 8,000 square meters, and benefits from convenient transportation since its establishment in 1996.
  2. The company is dedicated to the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment ranging from 40.5kV to 0.22kV.
  3. With over 20 CCC/CQC certificates, the company's products meet the highest IP65 protection level and can operate at altitudes up to 4500 meters. The company has obtained GB/T19001:2016/ISO9001:2015 quality management system certification.
  4. The company has a complete product development department and a dedicated design team.
  5. The company utilizes specialized computer mechanical and electrical CAD design software systems for the construction and manufacturing design of various products.
  6. The company has complete surveillance, measuring, and testing equipment to ensure high product quality.
  7. The company has a complete production line, including CNC processing equipment, welding equipment, hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.
  8. The company holds over 10 product invention patents and utility model patents.
  9. The company's motto is "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement," which ensures excellent service to customers.
