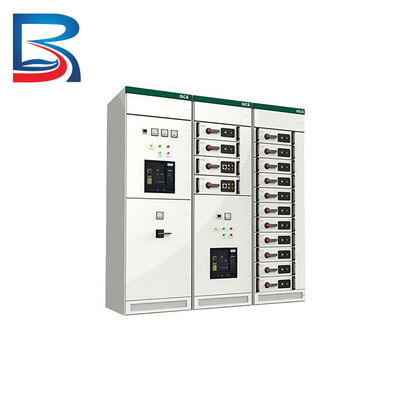

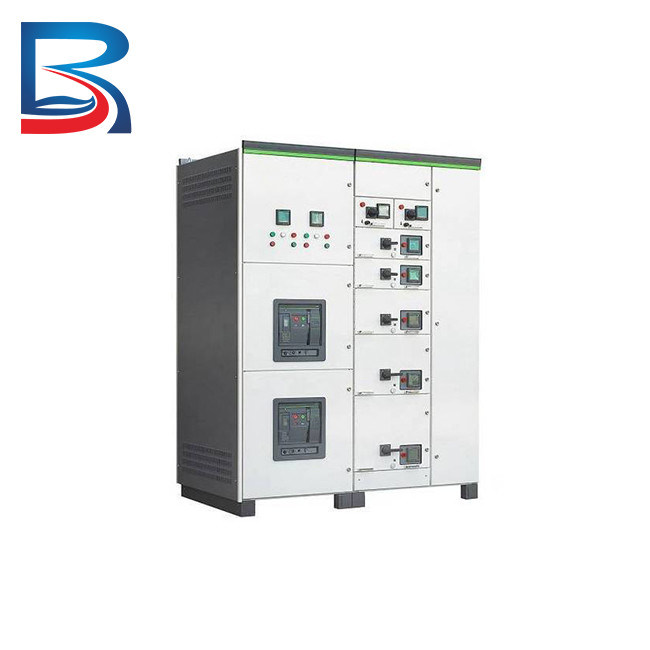

4 Phase Protection GIS GAS Insulated Low Voltage Switchgear for Transportation

4 Phase Protection GIS GAS Insulated Low Voltage Switchgear for Transportation

  • 4 Phase Protection GIS GAS Insulated Low Voltage Switchgear for Transportation
  • 4 Phase Protection GIS GAS Insulated Low Voltage Switchgear for Transportation
4 Phase Protection GIS GAS Insulated Low Voltage Switchgear for Transportation
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Protection Low Voltage Switchgear Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

4 Phase Low Voltage Switchgear

,

GIS GAS Insulated Low Voltage Switchgear

,

GIS GAS Insulated switchgear For Transportation

GIS GAS Insulated 4 Phase Protection Low Voltage Switchgear for Transportation​





Product Description



  • Low-voltage switchgear is typically used for power systems with a voltage of less than 1000V. It is used to control and distribute power to electrical loads while protecting them from overcurrent and other electrical faults.



  • Fixed type switchgear is often used in indoor applications where space is limited, while movable type switchgear is usually used in outdoor applications where flexibility is required.



  • Drawer type switchgear is designed with withdrawable units that can be removed for maintenance or replacement without interrupting the power supply to other equipment.



  • Modular type switchgear is made up of standardized modules that can be easily combined to create customized switchgear assemblies.



  • Isolated type switchgear is designed to provide a high degree of safety by isolating the electrical components from the operator.



  • Explosion-proof type switchgear is used in hazardous environments where there is a risk of explosion due to the presence of flammable gases or dust.



  • Protective type switchgear is used to protect electrical equipment from damage caused by overvoltage, undervoltage, or other electrical faults.



  • Low-voltage switchgear must meet several international standards and regulations, such as IEC 61439, UL 891, and GB7251.
  •
  • Switchgear should be designed with clear labeling and color-coding to make it easy for operators to identify different components and functions.
  •
  • Regular maintenance and testing of low-voltage switchgear is essential to ensure its continued safe and reliable operation.



Overall, low-voltage switchgear plays a vital role in modern electrical systems, providing a safe, efficient, and flexible solution for power distribution and control in a wide range of applications.





Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.





Company Profile



4 Phase Protection GIS GAS Insulated Low Voltage Switchgear for Transportation 0



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."





Material



1.The cabinet door adopts a double beveled edge process, which increases the structural strength of the same material by 50%.



2.The installation holes are all made using a multi-layer stamping and stretching process, which reduces the sliding wire situation by more than 80%.



3.The inlet and outlet holes adopt a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.



4.The box adopts a double folding process, which increases the structural strength of the same material by 50%.



5.The control circuit adopts a composite design of debugging mode and fire protection mode, greatly reducing the burning of fan and water pump equipment designed for fire protection during debugging.
