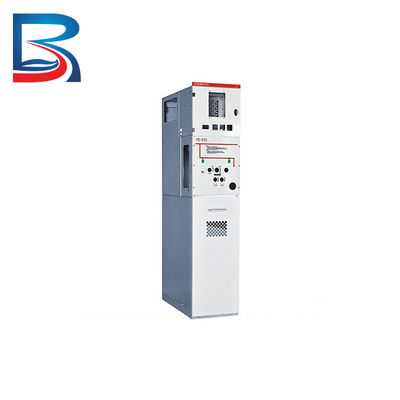

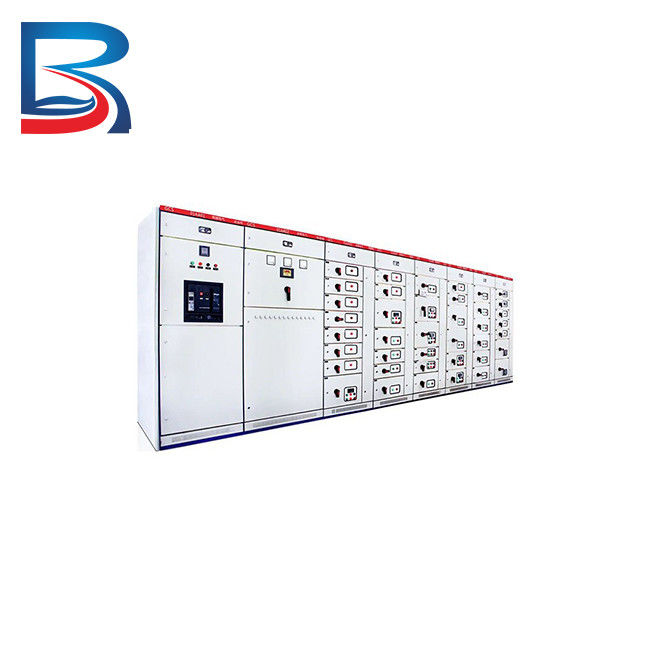

Withdrawable Switchboard Pad Mounted Low Voltage Switchgear for Wharf

Withdrawable Switchboard Pad Mounted Low Voltage Switchgear for Wharf

  • Withdrawable Switchboard Pad Mounted Low Voltage Switchgear for Wharf
  • Withdrawable Switchboard Pad Mounted Low Voltage Switchgear for Wharf
Withdrawable Switchboard Pad Mounted Low Voltage Switchgear for Wharf
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Switchboard Low Voltage Switchgear Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Low Voltage Switchgear For Wharf

,

Withdrawable Switchboard Pad Mounted

,

Withdrawable pad mounted switchgear

Pad mounted Withdrawable Switchboard Low Voltage Switchgear for Dock and Wharf





Product Description



  1. Types and Structures: Low-voltage switchgear is available in different types and structures, which include fixed, movable, drawer, modular, isolated, explosion-proof, and protective types. These switchgears are usually composed of various units such as metal enclosures, circuit breakers, grounding switches, busbars, controllers, and protective relays.
  2. Electrical Performance: Low-voltage switchgear must meet several electrical performance indicators, such as rated voltage, rated current, rated short-circuit capacity, rated frequency, insulation level, breaking capacity, dynamic stability, and arc extinguishing performance.
  3. Safety Performance: Safety is a critical aspect of low-voltage switchgear because it involves electrical safety, operational safety, and fire safety. Switchgear must have several safety features such as protection, isolation, grounding, shielding, anti-interference, explosion-proof, and fireproof.
  4. Control Function: The control function of low-voltage switchgear should be reliable and flexible, with the capability to achieve remote control, automated control, fault diagnosis, and data acquisition functions.
  5. Maintenance and Care: Regular inspection, cleaning, and maintenance of electrical components and enclosures are necessary to ensure the long-term reliability and safety of low-voltage switchgear. Manufacturers' recommendations must be followed for maintenance and care.
  6. Application Range: Low-voltage switchgear is widely used in commercial buildings, public utilities, industrial production, transportation, and healthcare sectors. It is used for power distribution, control, protection, monitoring, metering, and integration.

In conclusion, low-voltage switchgear is a vital component in power systems, providing a safe, reliable, flexible, and efficient power distribution and control solution. It plays a significant role in ensuring the normal operation of power systems and the safety of personnel in various application fields.





Specification





Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65





Company Profile



Withdrawable Switchboard Pad Mounted Low Voltage Switchgear for Wharf 0



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."





FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.







Material



  • By applying a double beveled edge process to the cabinet door, the structural strength of the same material is increased by 50%.
  • The use of a multi-layer stamping and stretching process for the installation holes reduces the occurrence of sliding wires by more than 80%.
  • The inlet and outlet holes are designed with a composite structure of knockdown holes and square holes, providing flexibility for on-site installation.
  • A double folding process is employed for the box, which increases the structural strength of the same material by 50%.
  • The control circuit features a composite design of debugging mode and fire protection mode, significantly reducing the risk of burning the fan and water pump equipment designed for fire protection during the debugging process.
