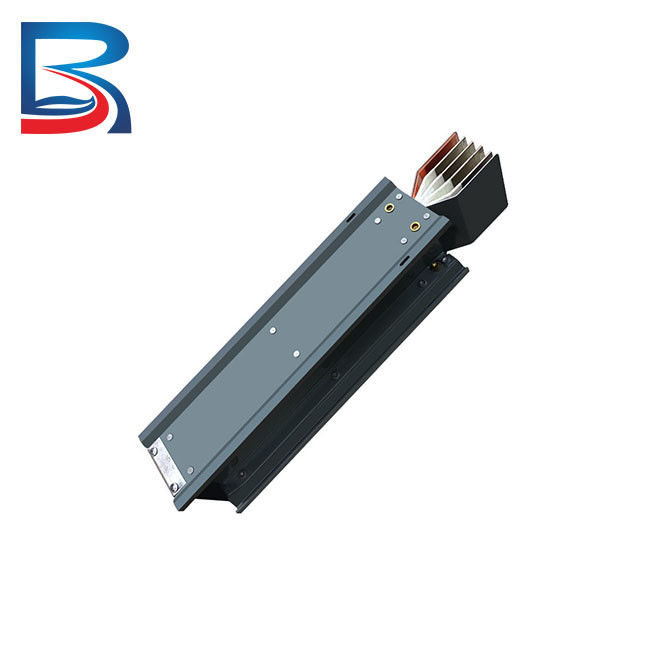

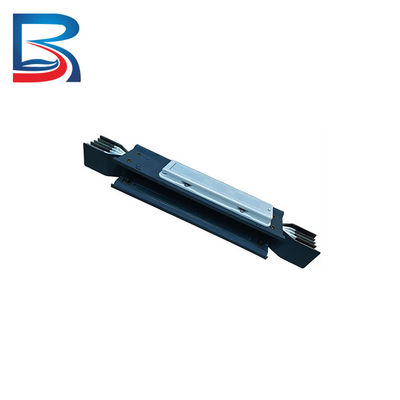

Low Voltage High Voltage Mylar or Epoxy Insulated Feeder Electrical Busduct for Substation

Low Voltage High Voltage Mylar or Epoxy Insulated Feeder Electrical Busduct for Substation

  • Low Voltage High Voltage Mylar or Epoxy Insulated Feeder Electrical Busduct for Substation
  • Low Voltage High Voltage Mylar or Epoxy Insulated Feeder Electrical Busduct for Substation
Low Voltage High Voltage Mylar or Epoxy Insulated Feeder Electrical Busduct for Substation
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Feeder Bus Duct Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Epoxy Electrical Busduct

,

Feeder Bus Duct for Substation

,

Mylar Feeder Bus Duct

Low Voltage High Voltage Mylar or Epoxy Insulated Feeder Bus Duct for Substation





Product Description



Materials



  • Busducts are typically made of copper or aluminum bars that are enclosed in a protective housing made of insulating material.
  • Copper busducts are more commonly used in high current applications due to their higher conductivity and better thermal performance, while aluminum busducts are often used in low current applications due to their lower cost.
  • The insulating material used in busducts can vary depending on the application. Common materials include epoxy resin, PVC, and silicone.

Applications



  • Busducts are used in a wide range of applications, including power generation, transmission, and distribution, as well as industrial and commercial buildings.
  • In power generation applications, busducts are used to transmit power from generators to transformers and other equipment within a power plant.
  • In transmission and distribution applications, busducts are used to transmit power over short distances between substations or other points in the electrical grid.
  • In industrial and commercial buildings, busducts are used to distribute power to large electrical loads, such as HVAC systems, lighting, and machinery.
  • Busducts are also commonly used in data centers to distribute power to servers and other network equipment.
  • The choice of busduct material and design depends on factors such as the power rating, the application, and the environmental conditions in which the busduct will be installed.



Specification





Conductor Material Copper or Aluminum Bar
Rated Working Voltage 415V or 690V
Rated Frequency 50/60Hz
Protection Class IP54/IP65/IP66
Rated Operating Current 250~6300A
Configuration 3P3W, 3P4W, 3P5W
Surface treatment Powder Coating Spray
Insulation Mylar or Epoxy
