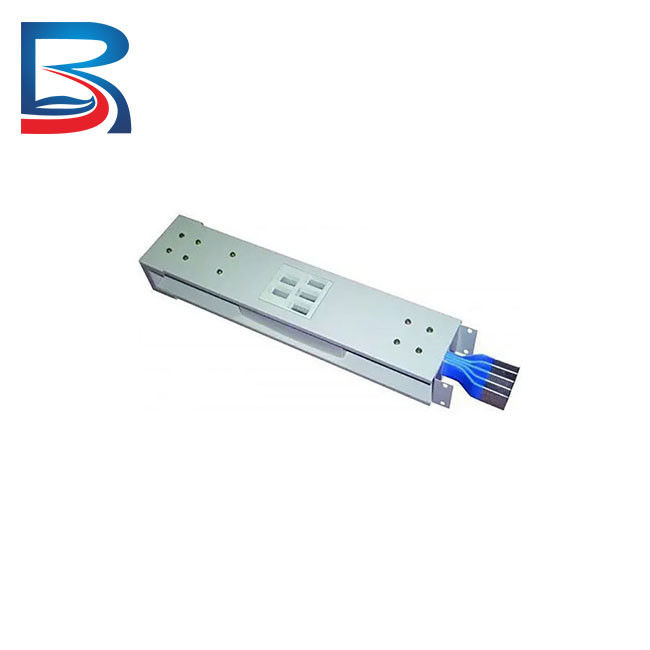

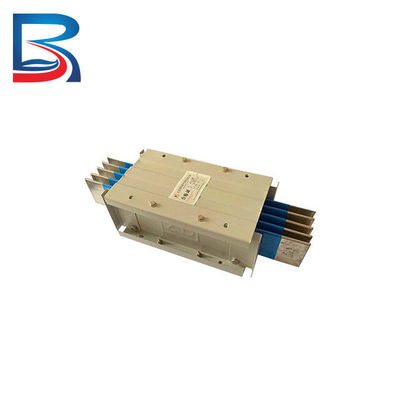

IP68 Fire Resistant Waterproof Electrical Busduct System for Substations

IP68 Fire Resistant Waterproof Electrical Busduct System for Substations

  • IP68 Fire Resistant Waterproof Electrical Busduct System for Substations
  • IP68 Fire Resistant Waterproof Electrical Busduct System for Substations
IP68 Fire Resistant Waterproof Electrical Busduct System for Substations
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Electrical Bus Duct System Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

IP68 Fire Resistant Electrical Busduct

,

electrical bus duct system for Substations

,

IP68 Fire Resistant electrical bus duct system

IP68 Fire Resistant Waterproof Electrical Bus Duct System for Substations



Product Description



Q: What is an electrical busduct?
A: An electrical busduct is a type of electrical power distribution system that is used to transmit large amounts of power from one location to another. It consists of a metal enclosure that contains conductive bus bars, which are used to carry the electrical current.



Q: What are the advantages of using an electrical busduct?
A: There are several advantages to using an electrical busduct. First, it is a highly efficient way to transmit power, as it minimizes the amount of energy lost due to resistance and heat. Second, it is a very compact system, which means that it takes up less space than other types of power distribution systems. Third, it is a very flexible system, as it can be easily reconfigured or expanded as needed.



Q: Where are electrical busducts typically used?
A: Electrical busducts are commonly used in large industrial and commercial buildings, such as factories, data centers, hospitals, and office buildings. They are also used in power plants and substations, where they are used to transmit power between different parts of the facility.



Q: What are some key design considerations when using an electrical busduct?
A: When designing an electrical busduct system, it is important to consider factors such as the amount of power that needs to be transmitted, the voltage level of the system, the ambient temperature, and the layout of the facility. It is also important to ensure that the system is properly grounded and that appropriate safety measures are in place to protect against electrical faults and other hazards.



Q: How is an electrical busduct installed and maintained?
A: Electrical busducts are typically installed by a team of trained professionals, who will carefully plan and execute the installation process to ensure that the system is safe and reliable. Once the system is in place, it is important to perform regular maintenance to ensure that it is functioning properly. This may include inspections, testing, and cleaning of the system components. It is also important to address any issues or problems promptly to prevent them from causing damage or downtime.



Specification





Conductor Material Copper or Aluminum Bar
Rated Working Voltage 415V or 690V
Rated Frequency 50/60Hz
Protection Class IP54/IP65/IP66
Rated Operating Current 250~6300A
Configuration 3P3W, 3P4W, 3P5W
Surface treatment Powder Coating Spray
Insulation Mylar or Epoxy





Material



1.The cabinet door adopts a double beveled edge process, which increases the structural strength of the same material by 50%.



2.The installation holes are all made using a multi-layer stamping and stretching process, which reduces the sliding wire situation by more than 80%.



3.The inlet and outlet holes adopt a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.



4.The box adopts a double folding process, which increases the structural strength of the same material by 50%

.



Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation







Production Facilities



IP68 Fire Resistant Waterproof Electrical Busduct System for Substations 0
