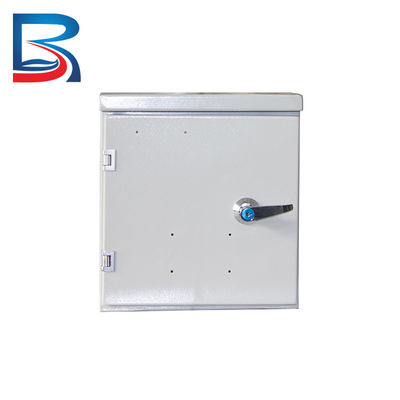

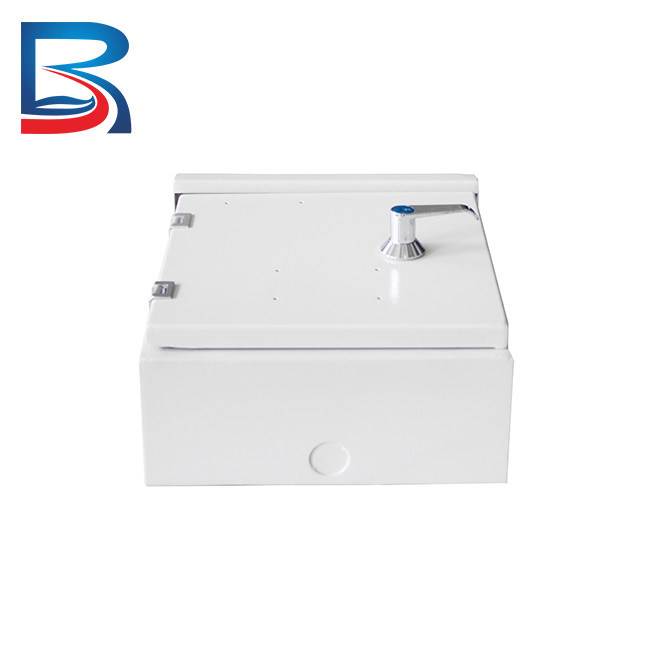

Sheet Metal Fabrication Lockable Pull Box Electrical Enclosure Box IP54 Explosion Proof

Sheet Metal Fabrication Lockable Pull Box Electrical Enclosure Box IP54 Explosion Proof

  • Sheet Metal Fabrication Lockable Pull Box Electrical Enclosure Box IP54 Explosion Proof
  • Sheet Metal Fabrication Lockable Pull Box Electrical Enclosure Box IP54 Explosion Proof
Sheet Metal Fabrication Lockable Pull Box Electrical Enclosure Box IP54 Explosion Proof
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Pull Box Electrical Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Electrical Enclosure Box IP54 Explosion Proof

,

Sheet Metal Fabrication Pull Box Electrical

,

Pull Box Electrical IP54 Explosion Proof

IP54 Explosion Proof Sheet Metal Fabrication Lockable Pull Box Electrical





Product Description

  • Enclosures may be designed for indoor or outdoor use, depending on the specific requirements of the application. Outdoor enclosures must be designed to withstand exposure to the elements, such as rain, wind, and extreme temperatures.
  • Enclosures may be designed for different types of environments, such as hazardous or corrosive environments. These enclosures must meet specific safety and performance requirements to prevent ignition and other hazards.
  • Enclosures may include specialized features such as access doors, cable entry points, and mounting brackets to simplify installation and maintenance.
  • Enclosures may be designed for different levels of customization, depending on the specific needs of the application. Customizable enclosures allow for flexibility in the placement and organization of electrical components.
  • Enclosures may be designed to provide additional security features, such as locking mechanisms and tamper-proof fasteners.
  • Enclosures may include ventilation systems to improve airflow and regulate temperature inside the enclosure.
  • Enclosures may be designed for easy expansion or modification of the electrical system. Modular enclosures may include pre-wired components and plug-and-play connections, simplifying the installation process.

Overall, the enclosure of a distribution box is an essential component of many electrical systems, providing a safe and protected environment for the electrical components and wiring. The design and installation of the enclosure require careful attention to detail, and proper maintenance is essential for long-term performance and safety. Enclosures may include specialized features and must be properly grounded and designed for the specific application and environment.



Specification





Material Aluminum, stainless steel, copper, brass, galvinized etc.
Drawing Format Auto CAD DWG, 3D(IGS, STP, STL and X-T),PDF
Thickness 0.1 -12 mm
Technics Laser cut, bend, weld, stamp
Surface Finish Powder coating, electroplating, oxide,anodization, etc
Tolarence +/- 0.03 ~ +/-0.05 mm
Process Custom Fabrication Based On Your Drawings





Material



1.The cabinet door adopts a double beveled edge process, which increases the structural strength of the same material by 50%.



2.The installation holes are all made using a multi-layer stamping and stretching process, which reduces the sliding wire situation by more than 80%.



3.The inlet and outlet holes adopt a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.



4.The box adopts a double folding process, which increases the structural strength of the same material by 50%.



5.The control circuit adopts a composite design of debugging mode and fire protection mode, greatly reducing the burning of fan and water pump equipment designed for fire protection during debugging.



Company Profile



Sheet Metal Fabrication Lockable Pull Box Electrical Enclosure Box IP54 Explosion Proof 0



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."





Packing



Sheet Metal Fabrication Lockable Pull Box Electrical Enclosure Box IP54 Explosion Proof 1
