Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Model Number: MNS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 30 Working Days
Payment Terms: T/T
Supply Ability: 100 PCS per Month
Contact Now
Detailed Product Description
Product Name: Low Voltage Switchgear Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC
Payment: T/T Packing: Wooden Case
MOQ: 1 Pcs
High Light:

Customizable Low Voltage Switchgear

,

Power Distribution Panel Switchgear

,

CQC Power Supply Cabinet

Switchgear production line power distribution panel power supply cabinet





Product knowledge



The low-voltage switchgear is a low-voltage switch distribution control panel, which is equipped with a low-voltage switch group and a circuit protection system. Low-voltage switchgear is suitable for power plant, petroleum, chemical, metallurgy, textile, high-rise building and other industries, as transmission, distribution and electric energy conversion. From the structural form, the low-voltage switchgear can be divided into two categories: fixed type and axial type; From the connection mode, the low-voltage switch cabinet can be divided into two categories: welded type and solid part connection. (1) Fixed: can meet the electrical components reliably fixed in the cabinet to determine the position. The shape of the cabinet is generally a cube, such as screen type, box type, etc., and there are also prismatic bodies such as desktops. (2) Extraction type: Extraction type is composed of a fixed cabinet and a movable device part equipped with a switch and other main electrical components, the movable part should be portable when changing, the positioning should be reliable after moving in, and the drawer of the same type and specification can be reliably exchanged. (3) Welding type: its advantages are convenient processing, solid and reliable; The disadvantage is that the error is large, easy to deform, difficult to adjust, and not beautiful, and the workpiece generally can not be pre-plated. (4) Solid parts connection: its advantages are suitable for workpiece pre-plating, easy to change adjustment, easy to beautify processing, parts can be standardized design, and can be pre-produced inventory, frame size error is small. The disadvantage is that it is not as strong as welding, which requires high precision of parts and components, and the processing cost is relatively increased. Low voltage switchgear.



Switchgear production line power distribution panel power supply cabinet



Specification



Parameter Description
Brand Bosun
Size(W*D*H) Customizable
Rated working voltage Customizable
Rated insulation voltage Customizable
Frequency Customizable
Rated current of main busbar Customizable
Rated current of distribution bus Customizable
Rated short-time withstand current of main bus Customizable
Rated short-time withstand current of distribution bus Customizable
Enclosure protection class
Customizable

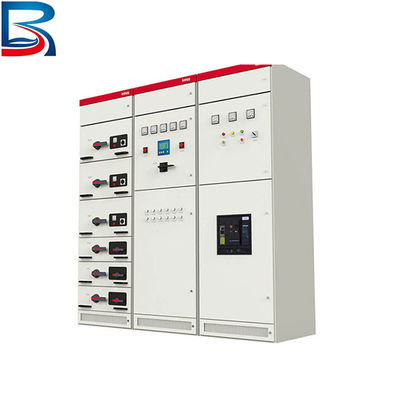

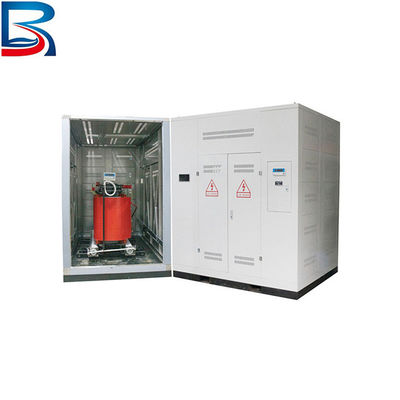

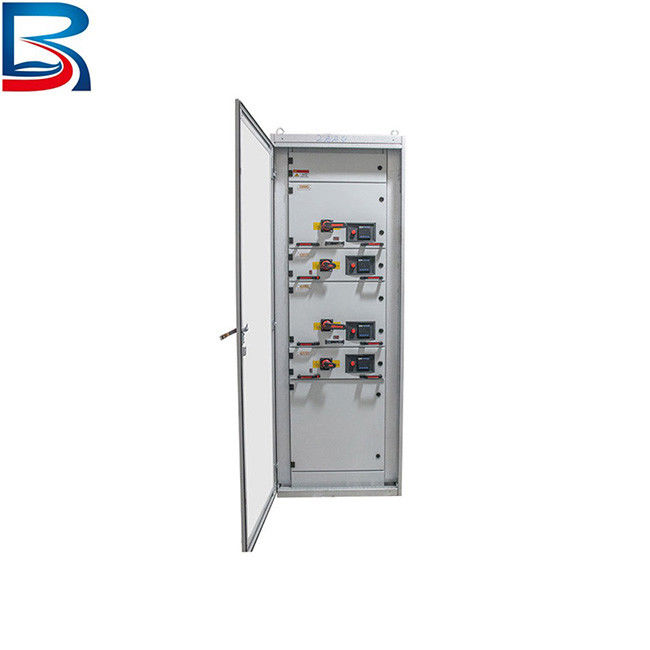

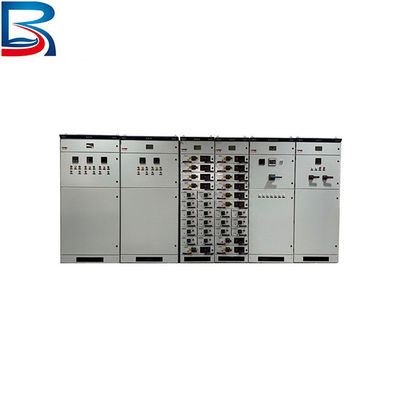

Switchgear Production Line Power Distribution Panel Power Supply Cabinet 0Switchgear Production Line Power Distribution Panel Power Supply Cabinet 1Switchgear Production Line Power Distribution Panel Power Supply Cabinet 2

Company Information


Chongqing Bosun Electrical Co., LTD., established in 1996, registered capital of 101.4 million. It is a high-speed development enterprise integrating research and development, manufacturing, installation and sales. Focus on the development of China's electric power industry, and strive to build a leading brand in the field of international electric power industry.

Switchgear Production Line Power Distribution Panel Power Supply Cabinet 3



FAQ



Q: How can I get a quotation?

A: Pls kindly supply single line diagram or details description( proposal) on demand products.



Q: How long get a quotation?

A: We will supply quotation within 24hours according to details description or single line diagram.



Q: What about after sale?

A: During warranty period , we will supply any technical service to solve problem.



Q: What about warranty?

A: 24month after the goods leave Ningbo/Shanghai port.
