| Product Name: | Prefabricated Substation | Color: | As Required |
|---|---|---|---|
| ODM/OEM: | Accepted | Certificate: | ISO,9001 CQC,CCC,CE |
| Payment: | T/T L/C | Packing: | Wooden Case |
| High Light: | Prefabricated Compact Transformer Substation,Drawout Prefabricated Substation,Prefabricated Substation for Transportation |
||

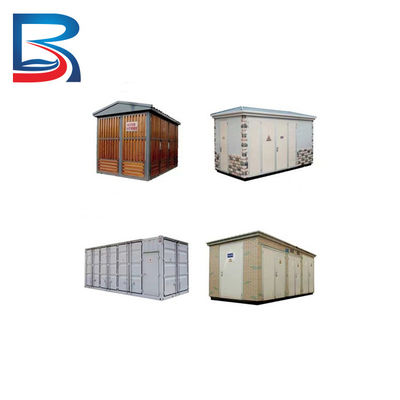

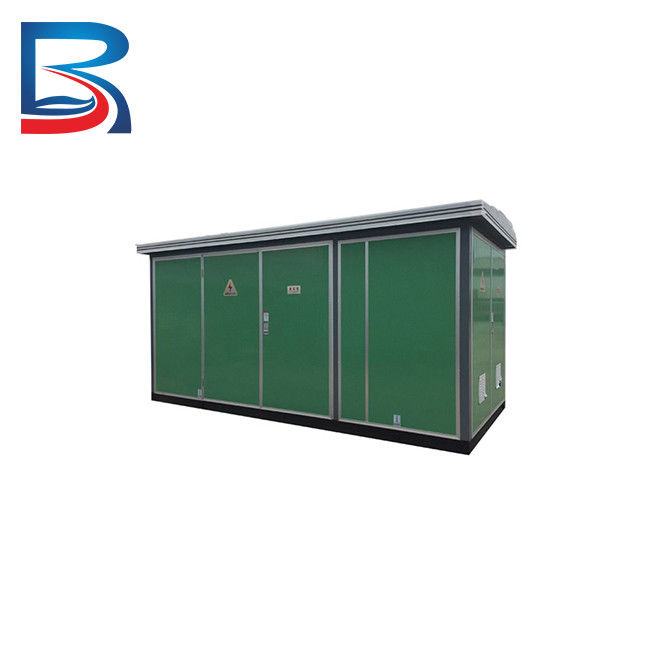

Indoor Outdoor Type Drawout Prefabricated Substation for Transportation
Product Description
What is a substation?
A substation is an electrical facility that's used to transform voltage levels between high-voltage transmission lines and low-voltage distribution lines.
What are the main functions of a substation?
The main functions of a substation are:
• Transforming voltage from high-voltage to low-voltage levels using transformers
• Switching and isolating transmission and distribution lines using circuit breakers and disconnect switches
• Providing protection for lines and equipment using fuses, relays and circuit breakers
• Metering and monitoring electrical parameters
What types of substations are there?
The main types are:
• Power substations that transform high power from transmission lines to distribution networks
• Distribution substations that further step down voltage to supply industrial, commercial and residential customers
• Converter substations that convert AC to DC or vice versa
Specification
| Rated Voltage | 12/17.5/24kV | 36kV |
|
Standard applicable |
IEC 62271 – 202 (IEC 61330) | IEC 62271 – 202 (IEC 61330) |
| Normal ambient temperature | 40 ° C | 40 ° C |
| Maximum ambient temperature | 50 ° C | 50 ° C |
| Enclosure construction | Modular | Modular |
| Ventilation | Natural | Natural |
| Temperature class (Std.) | K 10 | K 10 |
| MV and LV compartment | IP 54 | IP 54 |
| Transformer compartment | IP 23 | IP 23 |
| Rated voltage (kV) | 12/24kV | 36kV |
| Power frequency (kV rms) | 28/50 | 70 |
| Impulse (kV p) | 75/125 | 170 |
| Rated frequency (Hz) | 50/60 | 50/60 |
| Rated normal current (A) | 630 | 630 |
| Breaking capacity (A) | 630 | 630 |
| Making capacity (kA) | 52.5 / 40 | 50 |
| Rated normal current (A) | 630 | 630 |
| Breaking capacity (kA) | 21/16 | 20 |
| Making capacity (kA) | 52.5 / 40 | 50 |
| Rated power (kVA) – oil type | 2500 | 2000 |
| Rated power (kVA) – Dry type | 2500 | 2000 |
| Rated secondary voltage (V) | 433 | 433 |
| Vector group | Dyn 11 | Dyn 11 |
| Tapping range | + 5 in steps of 2.5% | + 5 in steps of 2.5% |
| IP | Yes | Yes |
| Internal arc | Yes | Yes |
| Enclosure class | Yes | Yes |
| Impact test | Yes | Yes |
| Short circuit test on earthing | Yes | Yes |
Team Show
1.Professional team
2.Comprehensive services
3.Strict quality control
4.Comprehensive inspection
5.Responsibility guarantee
Payment and Delivery
FAQ
1. Are you the manufacturer or trader?
"Bosun Electrical " is a leading & professional manufacturer in China.
2. How to order your products?
Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items
.
3. What is your delivery & after-sales serive?
Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.
4. What is your product warranty?
"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.
Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.
5.Do you accept OEM and ODM?
Yes
6. What is your payment terms?
a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L
b. irrevocable L/C at sight for order which order amount is over $0.1 million .
C. for old business partner,we can negociate for other special terms
d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance
7. If i want to visit you ,how to do ?
Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.
