Detailed Product Description
Product Name: Station Transformer In Substation Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

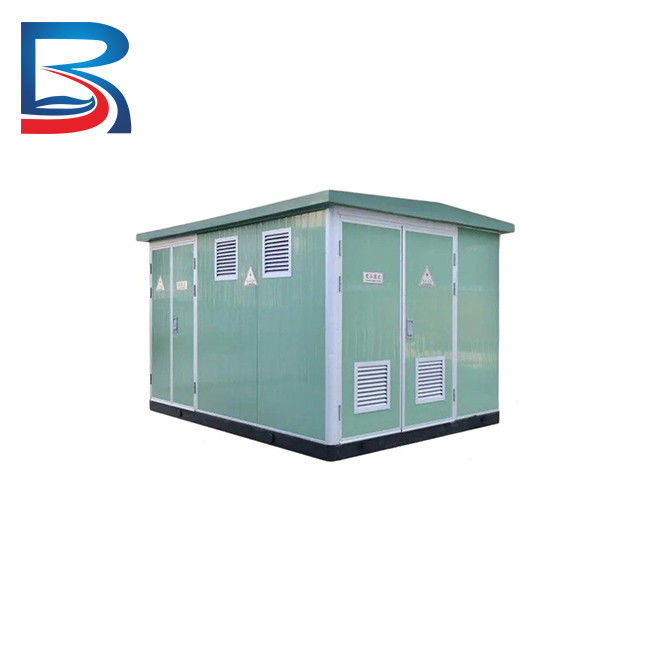

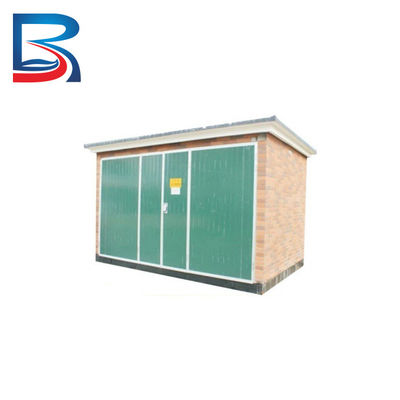

IP4X IP65 Station Transformer in Substation for Renewable Energy Systems



Product Description



Components



  • Box-type substations typically contain:
  • Distribution transformers for stepping down high voltage to low voltage
  • High voltage switchgear for controlling incoming high voltage lines
  • Low voltage switchgear for controlling outgoing low voltage lines
  • Fuses and circuit breakers for protection
  • Reactive power compensation devices like capacitors
  • Metering equipment



Advantages



• Compact and self-contained - all components housed within one or a few boxes.
• Simple and economical
• Easy installation and commissioning
• Low maintenance requirements





Specification





Rated Voltage 12/17.5/24kV 36kV



Standard applicable

IEC 62271 – 202 (IEC 61330) IEC 62271 – 202 (IEC 61330)
Normal ambient temperature 40 ° C 40 ° C
Maximum ambient temperature 50 ° C 50 ° C
Enclosure construction Modular Modular
Ventilation Natural Natural
Temperature class (Std.) K 10 K 10
MV and LV compartment IP 54 IP 54
Transformer compartment IP 23 IP 23
Rated voltage (kV) 12/24kV 36kV
Power frequency (kV rms) 28/50 70
Impulse (kV p) 75/125 170
Rated frequency (Hz) 50/60 50/60
Rated normal current (A) 630 630
Breaking capacity (A) 630 630
Making capacity (kA) 52.5 / 40 50
Rated normal current (A) 630 630
Breaking capacity (kA) 21/16 20
Making capacity (kA) 52.5 / 40 50
Rated power (kVA) – oil type 2500 2000
Rated power (kVA) – Dry type 2500 2000
Rated secondary voltage (V) 433 433
Vector group Dyn 11 Dyn 11
Tapping range + 5 in steps of 2.5% + 5 in steps of 2.5%
IP Yes Yes
Internal arc Yes Yes
Enclosure class Yes Yes
Impact test Yes Yes
Short circuit test on earthing Yes Yes





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation





FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.
