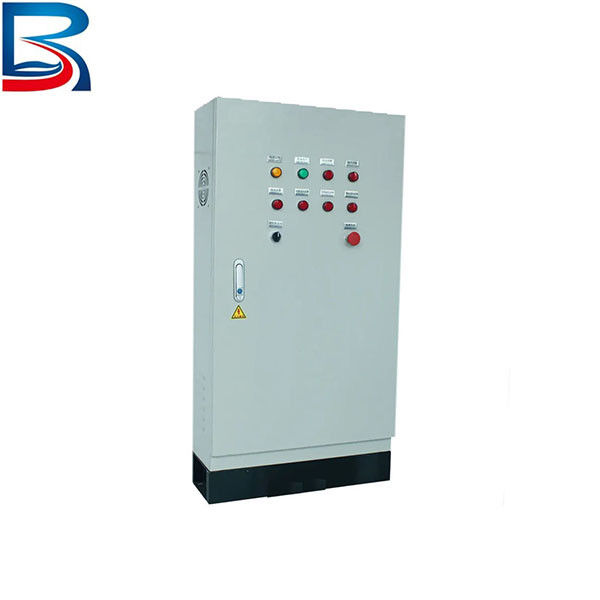

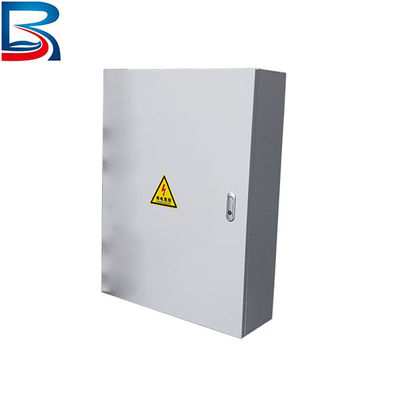

1.2mm Electrical Equipment Power Distribution Box 3 Phase

1.2mm Electrical Equipment Power Distribution Box 3 Phase

  • 1.2mm Electrical Equipment Power Distribution Box 3 Phase
  • 1.2mm Electrical Equipment Power Distribution Box 3 Phase
1.2mm Electrical Equipment Power Distribution Box 3 Phase
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO CE CCC etc
Model Number: XXM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$200-2000/Set
Packaging Details: Wooden Case Package
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Product Name: 3 Phase Distribution Box Color: Customization
Electrical Enclosure Material: Cold Rolled Steel Or Customization Enclosure Thickness: 1.2/1.5/2.0 Mm Or Customization
IP Grade: Customization Voltage: Customization
High Light:

1.2mm Electrical Power distribution box

,

Electrical equipment Power distribution box

Electrical equipment distribution box 3 phase distribution box





Product knowledge



The construction power distribution system should be set up the general distribution box, distribution box, switch box, and in accordance with the "total - split - open" order for hierarchical Settings, and form a "three-level distribution" mode.



The installation position of each distribution box and switch box of the construction distribution system should be reasonable. The main distribution box should be as close to the transformer or external power supply as possible to facilitate the introduction of power supply. The distribution box should be installed as far as possible in the center of the electrical equipment or the load is relatively concentrated to ensure that the three-phase load is balanced. The installation position of the switch box should be as close as possible to the electrical equipment controlled by it according to the field conditions and working conditions.



Electrical equipment distribution box 3 phase distribution box



Specification



Parameter
Description
Brand
Bosun
Size(W*D*H)
Customizable
Rated working voltage
Customizable
Rated insulation voltage
Customizable
Frequency
Customizable
Rated current of main busbar
Customizable
Rated current of distribution bus
Customizable
Rated short-time withstand current of main bus
Customizable
Rated short-time withstand current of distribution bus
Customizable
Enclosure protection class
Customizable

1.2mm Electrical Equipment Power Distribution Box 3 Phase 01.2mm Electrical Equipment Power Distribution Box 3 Phase 1



Company Information


Chongqing Bosun Electrical Co., LTD., established in 1996, registered capital of 101.4 million. It is a high-speed development enterprise integrating research and development, manufacturing, installation and sales. Focus on the development of China's electric power industry, and strive to build a leading brand in the field of international electric power industry.

1.2mm Electrical Equipment Power Distribution Box 3 Phase 2



FAQ



Q: How can I get a quotation?

A: Pls kindly supply single line diagram or details description( proposal) on demand products.



Q: How long get a quotation?

A: We will supply quotation within 24hours according to details description or single line diagram.



Q: What about after sale?

A: During warranty period , we will supply any technical service to solve problem.



Q: What about warranty?

A: 24month after the goods leave Ningbo/Shanghai port.
