Place of Origin: | Chongqing |
Brand Name: | Bosun |
Certification: | ISO CE CCC etc |
Model Number: | XXM |
Minimum Order Quantity: | 1 |
---|---|
Price: | US$200-2000/Set |
Packaging Details: | Wooden Case Package |
Delivery Time: | 15-30 days |
Payment Terms: | T/T |
Supply Ability: | 1000 sets per month |
Product Name: | Explosion-proof Power Distribution Box | Color: | Customization |
---|---|---|---|
Electrical Enclosure Material: | Cold Rolled Steel Or Customization | Enclosure Thickness: | 1.2/1.5/2.0 Mm Or Customization |
IP Grade: | Customization | Voltage: | Customization |
High Light: | Explosionproof power distribution box,1.5mm distribution power box |

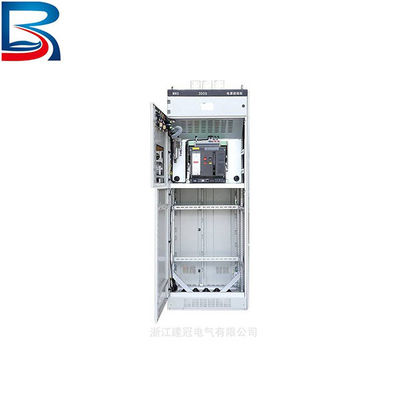

Explosion-proof power distribution box power box distribution ac
Product knowledge
Selection of fuses (RT, NT). The rated current of the total overcurrent protection fuse on the low voltage side of the distribution transformer should be greater than the rated current on the low voltage side of the distribution transformer, generally 1.5 times the rated current, and the rated current of the melt should be determined according to the overload multiple allowed by the transformer and the characteristics of the fuse. The rated current of the melt of the outlet return current protection fuse should not be greater than the rated current of the total overcurrent protection fuse, and the rated current of the melt should be selected according to the normal maximum load current of the loop, and should avoid the normal peak current.
In order to analyze the reactive power of rural low-voltage power grid, a DTS (X) series of active and reactive power two-in-one multifunctional energy meter (installed on the side of the meter board) is installed in the box to replace the three single-phase energy meters (DD862 series meters) originally installed, so as to facilitate the online operation monitoring of the load.

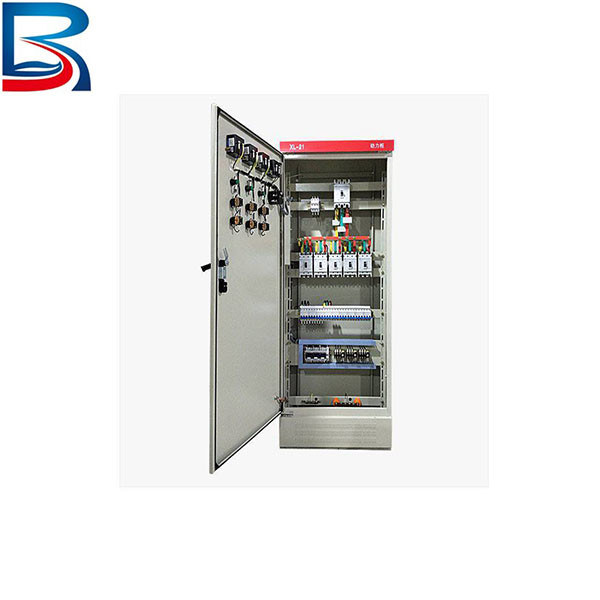

Explosion-proof power distribution box power box distribution ac
Parameter
|
Description
|
Brand
|
Bosun
|
Size(W*D*H)
|
Customizable
|
Rated working voltage
|
Customizable
|
Rated insulation voltage
|
Customizable
|
Frequency
|
Customizable
|
Rated current of main busbar
|
Customizable
|
Rated current of distribution bus
|
Customizable
|
Rated short-time withstand current of main bus
|
Customizable
|
Rated short-time withstand current of distribution bus
|
Customizable
|
Enclosure protection class
|
Customizable
|
Chongqing Bosun Electrical Co., LTD., established in 1996, registered capital of 101.4 million. It is a high-speed development enterprise integrating research and development, manufacturing, installation and sales. Focus on the development of China's electric power industry, and strive to build a leading brand in the field of international electric power industry.
Q: How can I get a quotation?
A: Pls kindly supply single line diagram or details description( proposal) on demand products.
Q: How long get a quotation?
A: We will supply quotation within 24hours according to details description or single line diagram.
Q: What about after sale?
A: During warranty period , we will supply any technical service to solve problem.
Q: What about warranty?
A: 24month after the goods leave Ningbo/Shanghai port.
