Place of Origin: | Chongqing |
Brand Name: | Bosun |
Certification: | ISO CE CCC etc |
Model Number: | XXM |
Minimum Order Quantity: | 1 |
---|---|
Price: | US$200-2000/Set |
Packaging Details: | Wooden Case Package |
Delivery Time: | 15-30 days |
Payment Terms: | T/T |
Supply Ability: | 1000 sets per month |
Product Name: | Electrical Power Distribution Box | Color: | Customization |
---|---|---|---|
Electrical Enclosure Material: | Cold Rolled Steel Or Customization | Enclosure Thickness: | 1.2/1.5/2.0 Mm Or Customization |
IP Grade: | Customization | Voltage: | Customization |
High Light: | Ip65 Distributed Power Box,2.0Mm Electrical Power Distribution Box |

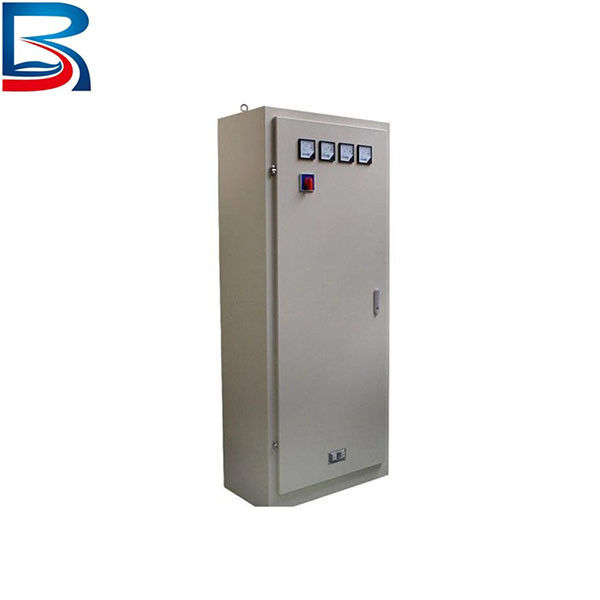

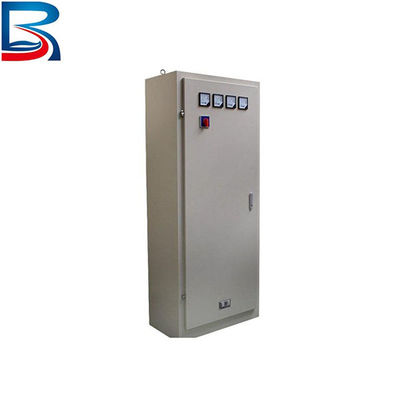

Distribution box ip65 distributed power box electrical power distribution box
Product knowledge
If the distribution platform on the column is added, when making the distribution box shell, a 2mm thick stainless steel plate can be selected, and the size of the distribution box can be scaled up appropriately (on the basis of the JP4-100/3W type used in the agricultural reform project, the width of the original box is increased by about 100mm, that is, from the original 680mm to 780mm). The improved shape size of the distribution box is: 1300mm×780mm×500mm), so as to increase the electrical safety distance between each branch outlet and the outlet and the box shell, which is conducive to the operation and maintenance of agricultural electricians and the replacement of fuses, and can also dissipate heat.
Choose energy-saving AC contactor (similar to CJ20SI) products, and pay attention to the AC contactor coil voltage is connected to the corresponding terminal of the selected remaining current action protector, pay attention to the correct load matching. When selecting AC contactors, products with insulation class A and above should be selected, and the rated current of the main loop contacts should be greater than or equal to the load current of the controlled line. The rated voltage of the electromagnetic coil of the contactor is 380V or 220V.

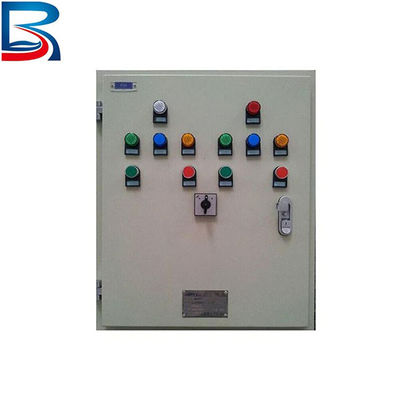

Distribution box ip65 distributed power box electrical power distribution box
Parameter
|
Description
|
Brand
|
Bosun
|
Size(W*D*H)
|
Customizable
|
Rated working voltage
|
Customizable
|
Rated insulation voltage
|
Customizable
|
Frequency
|
Customizable
|
Rated current of main busbar
|
Customizable
|
Rated current of distribution bus
|
Customizable
|
Rated short-time withstand current of main bus
|
Customizable
|
Rated short-time withstand current of distribution bus
|
Customizable
|
Enclosure protection class
|
Customizable
|
Chongqing Bosun Electrical Co., LTD., established in 1996, registered capital of 101.4 million. It is a high-speed development enterprise integrating research and development, manufacturing, installation and sales. Focus on the development of China's electric power industry, and strive to build a leading brand in the field of international electric power industry.
Q: How can I get a quotation?
A: Pls kindly supply single line diagram or details description( proposal) on demand products.
Q: How long get a quotation?
A: We will supply quotation within 24hours according to details description or single line diagram.
Q: What about after sale?
A: During warranty period , we will supply any technical service to solve problem.
Q: What about warranty?
A: 24month after the goods leave Ningbo/Shanghai port.
