| Place of Origin: | Chongqing |
| Brand Name: | Bosun |
| Certification: | ISO CE CCC etc |
| Model Number: | XXM |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$200-2000/Set |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per month |
| Product Name: | Power Distribution Board Cabinet | Color: | Customization |
|---|---|---|---|
| Electrical Enclosure Material: | Cold Rolled Steel Or Customization | Current: | Customization |
| Voltage: | Customization | MOQ: | 1 Pcs |
| High Light: | Customization Power Cabinet Distribution Board,1Pcs Electrical Power Distribution Box |
||

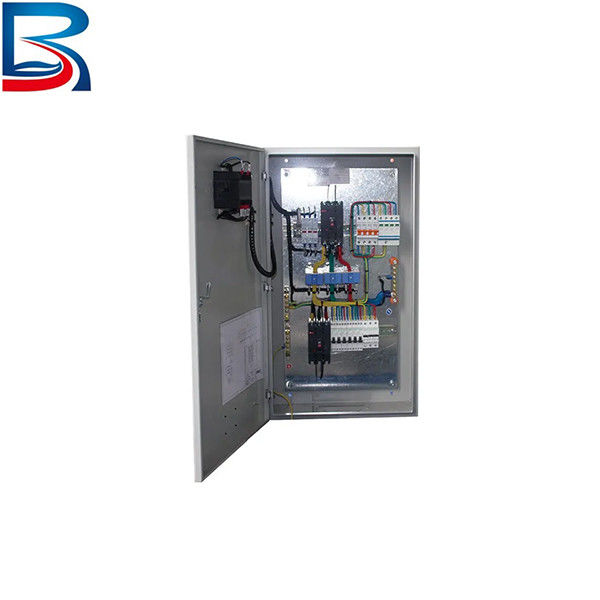

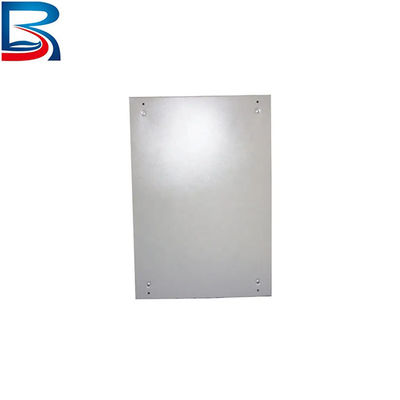

Power distribution board cabinet distribution board insulated panels
Product knowledge
Main switchgear types: Low voltage switchgear GGD, GCK, GCS, MNS, XLL2 low voltage distribution box and XGM low voltage lighting box.
The main differences are: GGD is fixed, GCK, GCS, MNS are drawers. GCK and GCS, MNS cabinet drawer propulsion mechanism is different;
The main difference between GCS and MNS cabinets is that GCS cabinets can only be single-sided operation cabinets with a depth of 800mm, while MNS cabinets can be double-sided operation cabinets with a depth of 1000mm.
Advantages and disadvantages:
Draw-out cabinets (GCK, GCS, MNS) are less local, easy to maintain, and have more lines, but the cost is expensive;
Fixed cabinet (GGD) relatively less outlet loop, occupy a large area (if the place is small to do the fixed cabinet is recommended to do the drawer).
Power distribution board cabinet distribution board insulated panels
|
Parameter
|
Description
|
|
Brand
|
Bosun
|
|
Size(W*D*H)
|
Customizable
|
|
Rated working voltage
|
Customizable
|
|
Rated insulation voltage
|
Customizable
|
|
Frequency
|
Customizable
|
|
Rated current of main busbar
|
Customizable
|
|
Rated current of distribution bus
|
Customizable
|
|
Rated short-time withstand current of main bus
|
Customizable
|
|
Rated short-time withstand current of distribution bus
|
Customizable
|
|
Enclosure protection class
|
Customizable
|
Chongqing Bosun Electrical Co., LTD., established in 1996, registered capital of 101.4 million. It is a high-speed development enterprise integrating research and development, manufacturing, installation and sales. Focus on the development of China's electric power industry, and strive to build a leading brand in the field of international electric power industry.
Q: How can I get a quotation?
A: Pls kindly supply single line diagram or details description( proposal) on demand products.
Q: How long get a quotation?
A: We will supply quotation within 24hours according to details description or single line diagram.
Q: What about after sale?
A: During warranty period , we will supply any technical service to solve problem.
Q: What about warranty?
A: 24month after the goods leave Ningbo/Shanghai port.
