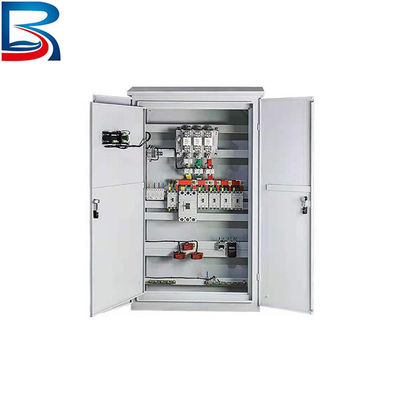

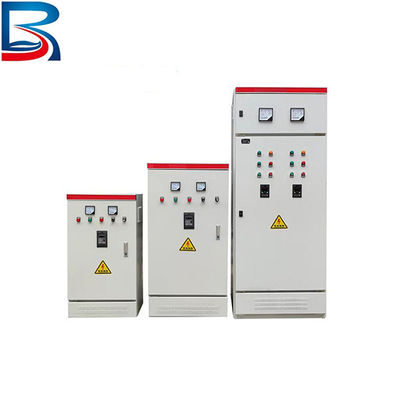

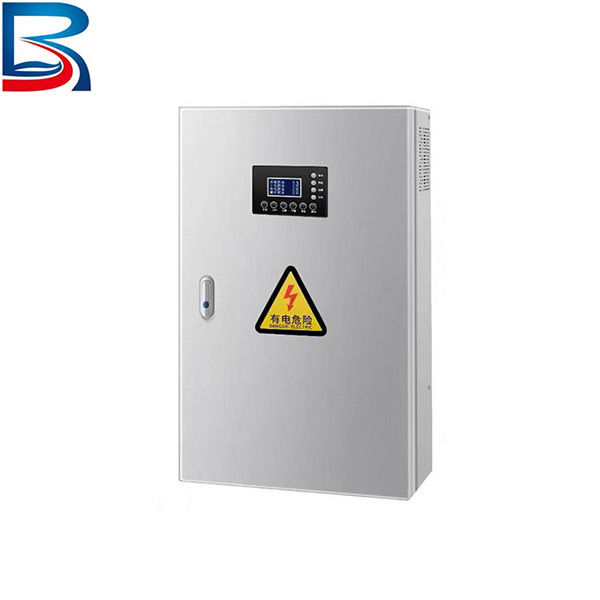

Outdoor Electrical Power Distribution Panel Box 1.0mm Powder Coated

Outdoor Electrical Power Distribution Panel Box 1.0mm Powder Coated

  • Outdoor Electrical Power Distribution Panel Box  1.0mm Powder Coated
  • Outdoor Electrical Power Distribution Panel Box  1.0mm Powder Coated
  • Outdoor Electrical Power Distribution Panel Box  1.0mm Powder Coated
Outdoor Electrical Power Distribution Panel Box  1.0mm Powder Coated
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO CE CCC etc
Model Number: XXM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$200-2000/Set
Packaging Details: Wooden Case Package
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Product Name: Distribution Box In Electrical Outdoor Power Distribution Panel Surface Treatment: Powder Coated
Electrical Enclosure Material: Cold Rolled Steel Or Customization Application: Outdoor/indoor
Thickness: 1.0/1.2/1.5/2.0mm MOQ: 1 Pcs
High Light:

1.0mm Electrical Power Distribution Box

,

Electrical Outdoor Power Distribution Panel Box

Distribution Box In Electrical Outdoor Power Distribution Panel





Product knowledge



Main switchgear types:

Low voltage switchgear GGD, GCK, GCS, MNS, XLL2 low voltage distribution box and XGM low voltage lighting box.



The main differences are:

GGD is fixed, GCK, GCS, MNS are drawers. GCK and GCS, MNS cabinet drawer propulsion



mechanism is different;

The main difference between GCS and MNS cabinets is that GCS cabinets can only be single-sided operation cabinets with a depth of 800mm, while MNS cabinets can be double-sided operation cabinets with a depth of 1000mm.



Advantages and disadvantages:

Draw-out cabinets (GCK, GCS, MNS) are less local, easy to maintain, and have more lines, but the cost is expensive;

Fixed cabinet (GGD) relatively less outlet loop, occupy a large area (if the place is small can not do the fixed cabinet is recommended to do the drawer)



Distribution Box In Electrical Outdoor Power Distribution Panel



Specification



Parameter
Description
Brand
Bosun
Size(W*D*H)
Customizable
Rated working voltage
Customizable
Rated insulation voltage
Customizable
Frequency
Customizable
Rated current of main busbar
Customizable
Rated current of distribution bus
Customizable
Rated short-time withstand current of main bus
Customizable
Rated short-time withstand current of distribution bus
Customizable
Enclosure protection class
Customizable

Outdoor Electrical Power Distribution Panel Box  1.0mm Powder Coated 0Outdoor Electrical Power Distribution Panel Box  1.0mm Powder Coated 1Outdoor Electrical Power Distribution Panel Box  1.0mm Powder Coated 2



Company Information


Chongqing Bosun Electrical Co., LTD., established in 1996, registered capital of 101.4 million. It is a high-speed development enterprise integrating research and development, manufacturing, installation and sales. Focus on the development of China's electric power industry, and strive to build a leading brand in the field of international electric power industry.

Outdoor Electrical Power Distribution Panel Box  1.0mm Powder Coated 3



FAQ



Q: How can I get a quotation?

A: Pls kindly supply single line diagram or details description( proposal) on demand products.



Q: How long get a quotation?

A: We will supply quotation within 24hours according to details description or single line diagram.



Q: What about after sale?

A: During warranty period , we will supply any technical service to solve problem.



Q: What about warranty?

A: 24month after the goods leave Ningbo/Shanghai port.
