Place of Origin: | Chongqing |
Brand Name: | Bosun |
Certification: | ISO CE CCC etc |
Model Number: | XXM |
Minimum Order Quantity: | 1 |
---|---|
Price: | US$200-2000/Set |
Packaging Details: | Wooden Case Package |
Delivery Time: | 15-30 days |
Payment Terms: | T/T |
Supply Ability: | 1000 sets per month |
Product Name: | Distribution Board | Color: | Customization |
---|---|---|---|
Electrical Enclosure Material: | Cold Rolled Steel Or Customization | Function: | Electric Box |
Voltage: | Customization | MOQ: | 1 Pcs |
High Light: | Single Phase Db Box,6Way Distribution Board,Electric 3Phase Distribution Board |

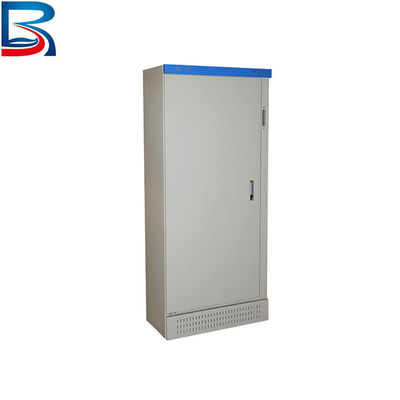

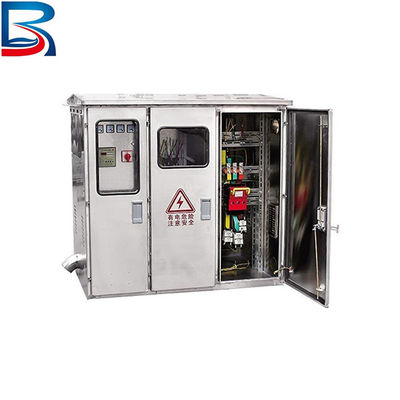

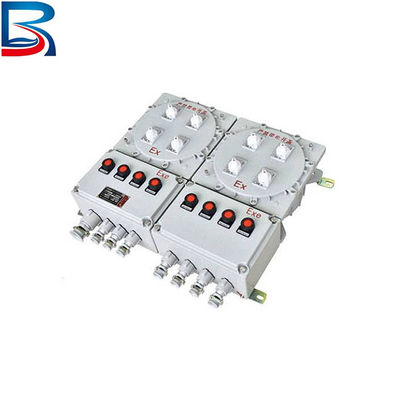

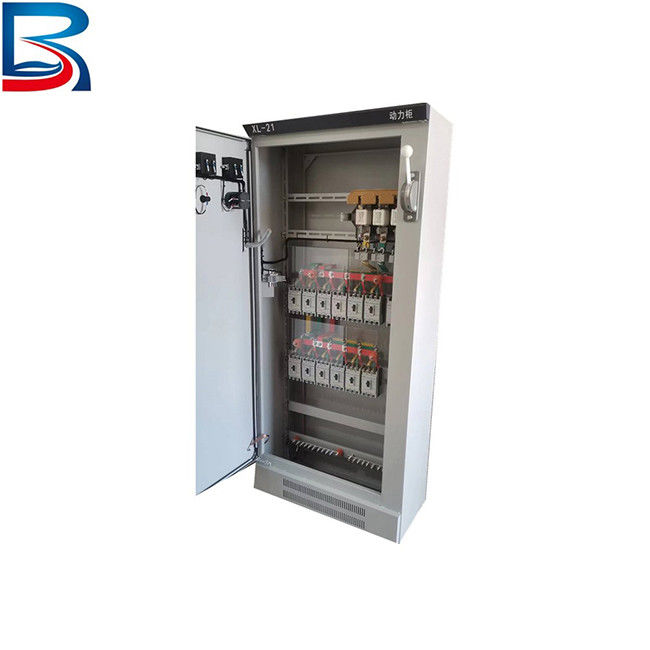

Single phase db box distribution board 6 way db box 3 phase
Product knowledge
The cabinet consists of the following part
Circuit Breaker
Circuit breaker: both switch, is the main component of the distribution cabinet, commonly used air switch. Leakage switch. Dual power automatic transfer switch
Air switch:
the concept of air switch:
The air switch is also the air circuit breaker, which is connected, broken and carries the rated working current and short circuit, overload and other fault currents in the circuit, and can quickly break the circuit in the case of overload, short circuit, undervoltage and so on, for reliable protection.
The design types of dynamic and static contacts and contact rods of circuit breakers are various, but the main purpose is to improve the breaking capacity of circuit breakers. At present, the current limiting principle, which limits the peak value of short circuit current when breaking by using certain contact structure, has obvious effect on improving the breaking capacity of circuit breakers, and is widely used.
single phase db box distribution board 6 way db box 3 phase
Parameter
|
Description
|
Brand
|
Bosun
|
Size(W*D*H)
|
Customizable
|
Rated working voltage
|
Customizable
|
Rated insulation voltage
|
Customizable
|
Frequency
|
Customizable
|
Rated current of main busbar
|
Customizable
|
Rated current of distribution bus
|
Customizable
|
Rated short-time withstand current of main bus
|
Customizable
|
Rated short-time withstand current of distribution bus
|
Customizable
|
Enclosure protection class
|
Customizable
|
Chongqing Bosun Electrical Co., LTD., established in 1996, registered capital of 101.4 million. It is a high-speed development enterprise integrating research and development, manufacturing, installation and sales. Focus on the development of China's electric power industry, and strive to build a leading brand in the field of international electric power industry.
Q: How can I get a quotation?
A: Pls kindly supply single line diagram or details description( proposal) on demand products.
Q: How long get a quotation?
A: We will supply quotation within 24hours according to details description or single line diagram.
Q: What about after sale?
A: During warranty period , we will supply any technical service to solve problem.
Q: What about warranty?
A: 24month after the goods leave Ningbo/Shanghai port.
