| Place of Origin: | Chongqing |
| Brand Name: | Bosun |
| Certification: | ISO CE CCC etc |
| Model Number: | XXM |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$200-2000/Set |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per month |
| Product Name: | Distribution Board | Box/cabinet Thickness: | 0.8/1.2/1.5mm |
|---|---|---|---|
| Electrical Enclosure Material: | Cold Rolled Steel Or Customization | Specifications: | Support Customization |
| Box/cabinet Size: | Customization | Warranty: | 24 Months |
| High Light: | 1.2mm Electrical Distribution Board,Electrical Distribution Cabinets |
||

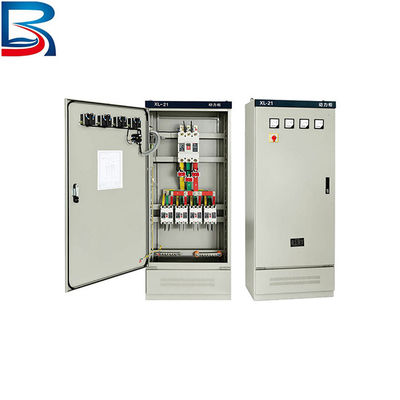

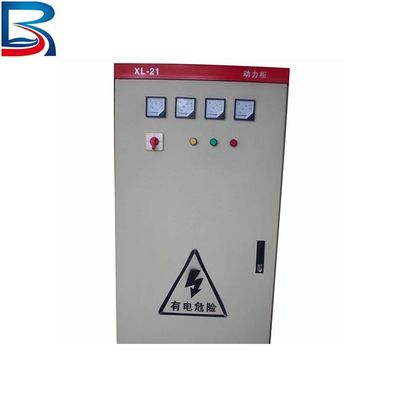

Electrical distribution board electric cabinets switchgear electrical distribution cabinets
Product knowledge
The protected switchgear is mainly used as a power distribution device in the process site.
Drawer type switchgear. This kind of switch cabinet is made of steel plate closed shell, and the electrical components of the inlet and outlet circuit are installed in the drawer that can be drawn out to form a functional unit that can complete a certain type of power supply task. Between the functional unit and the bus bar or cable, separated by a grounded metal plate or a plastic functional board, forming three areas of the bus bar, functional unit and cable. There are also isolation measures between each functional unit. Drawer type switchgear has high reliability, safety and interchangeability, is a more advanced switchgear, switchgear mostly refers to drawer type switchgear.
Electrical distribution board electric cabinets switchgear electrical distribution cabinets
|
Parameter
|
Description
|
|
Brand
|
Bosun
|
|
Size(W*D*H)
|
Customizable
|
|
Rated working voltage
|
Customizable
|
|
Rated insulation voltage
|
Customizable
|
|
Frequency
|
Customizable
|
|
Rated current of main busbar
|
Customizable
|
|
Rated current of distribution bus
|
Customizable
|
|
Rated short-time withstand current of main bus
|
Customizable
|
|
Rated short-time withstand current of distribution bus
|
Customizable
|
|
Enclosure protection class
|
Customizable
|
Chongqing Bosun Electrical Co., LTD., established in 1996, registered capital of 101.4 million. It is a high-speed development enterprise integrating research and development, manufacturing, installation and sales. Focus on the development of China's electric power industry, and strive to build a leading brand in the field of international electric power industry.
Q: How can I get a quotation?
A: Pls kindly supply single line diagram or details description( proposal) on demand products.
Q: How long get a quotation?
A: We will supply quotation within 24hours according to details description or single line diagram.
Q: What about after sale?
A: During warranty period , we will supply any technical service to solve problem.
Q: What about warranty?
A: 24month after the goods leave Ningbo/Shanghai port.
