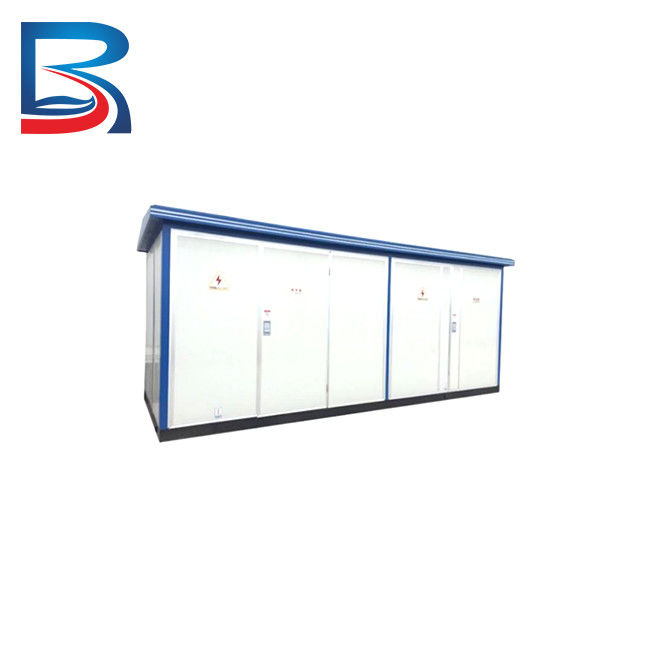

3 Phase Pad mounted 11KV Transformer Substation for Electrical Grid Systems

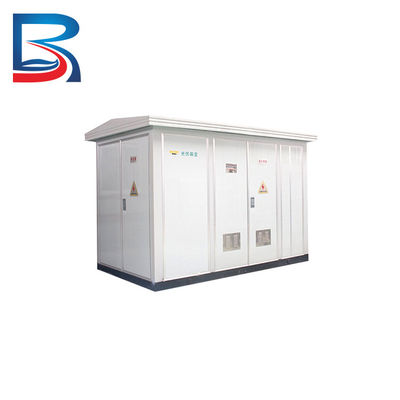

3 Phase Pad mounted 11KV Transformer Substation for Electrical Grid Systems

  • 3 Phase Pad mounted 11KV Transformer Substation for Electrical Grid Systems
  • 3 Phase Pad mounted 11KV Transformer Substation for Electrical Grid Systems
3 Phase Pad mounted 11KV Transformer Substation for Electrical Grid Systems
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: 11KV Transformer Substation Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

3 Phase Pad mounted 11KV Transformer Substation for Electrical Grid Systems





Product Description



A substation, also known as a switching station or a switchyard, is an integral part of an electrical power system. Its main function is to transform and distribute electrical power from high voltage transmission lines to lower voltage distribution lines, which then supply electricity to homes, businesses, and other consumers.

  • Power transmission: Substations are used to transfer electrical power over long distances, typically from power plants to load centers or from one region to another. They step up the voltage of the power to enable efficient and cost-effective transmission.
  • Power distribution: Substations are used to distribute electrical power to consumers at lower voltages. They step down the voltage of the power to a level that is suitable for use in homes, offices, and factories.
  • Grid stability: Substations play a crucial role in maintaining the stability of the power grid by balancing the supply and demand of power. They also help to regulate voltage and frequency fluctuations, which can occur due to variations in load or changes in generation.
  • Renewable energy integration: Substations are used to connect renewable energy sources such as wind turbines and solar panels to the power grid. They help to manage the intermittency of these sources and ensure that the power they generate is integrated into the grid efficiently and reliably.
  • Industrial applications: Substations are used in various industrial applications, such as mining, oil and gas, and manufacturing. They provide the necessary power for equipment and machinery, as well as for lighting and other auxiliary systems.

Overall, substations are essential components of the power grid, enabling the safe, reliable, and efficient distribution of electrical power to consumers.





Specification





Rated Voltage 12/17.5/24kV 36kV



Standard applicable

IEC 62271 – 202 (IEC 61330) IEC 62271 – 202 (IEC 61330)
Normal ambient temperature 40 ° C 40 ° C
Maximum ambient temperature 50 ° C 50 ° C
Enclosure construction Modular Modular
Ventilation Natural Natural
Temperature class (Std.) K 10 K 10
MV and LV compartment IP 54 IP 54
Transformer compartment IP 23 IP 23
Rated voltage (kV) 12/24kV 36kV
Power frequency (kV rms) 28/50 70
Impulse (kV p) 75/125 170
Rated frequency (Hz) 50/60 50/60
Rated normal current (A) 630 630
Breaking capacity (A) 630 630
Making capacity (kA) 52.5 / 40 50
Rated normal current (A) 630 630
Breaking capacity (kA) 21/16 20
Making capacity (kA) 52.5 / 40 50
Rated power (kVA) – oil type 2500 2000
Rated power (kVA) – Dry type 2500 2000
Rated secondary voltage (V) 433 433
Vector group Dyn 11 Dyn 11
Tapping range + 5 in steps of 2.5% + 5 in steps of 2.5%
IP Yes Yes
Internal arc Yes Yes
Enclosure class Yes Yes
Impact test Yes Yes
Short circuit test on earthing Yes Yes
