Product Name: | Electric Transformer Substation | Color: | As Required |
---|---|---|---|
ODM/OEM: | Accepted | Certificate: | ISO,9001 CQC,CCC,CE |
Payment: | T/T L/C | Packing: | Wooden Case |
High Light: | Electrical Grid Systems prefab substation,Electrical Grid Systems TNB Compact Substation,Prefab TNB Compact Substation |

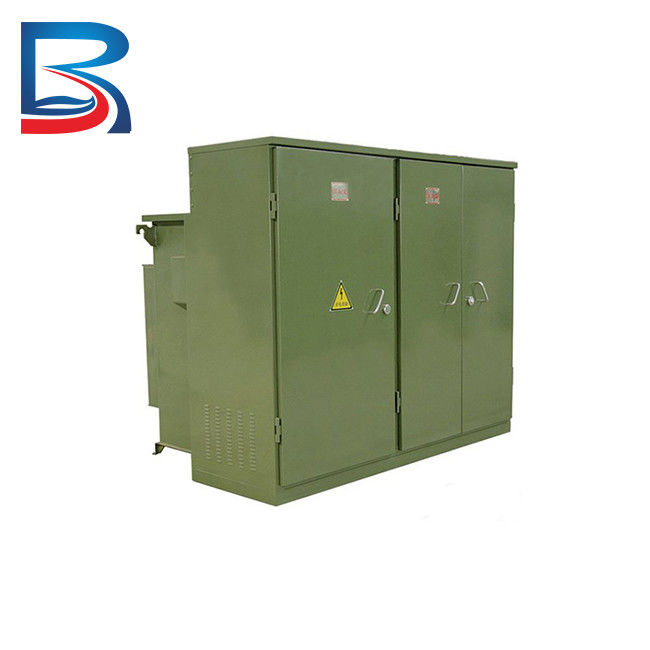

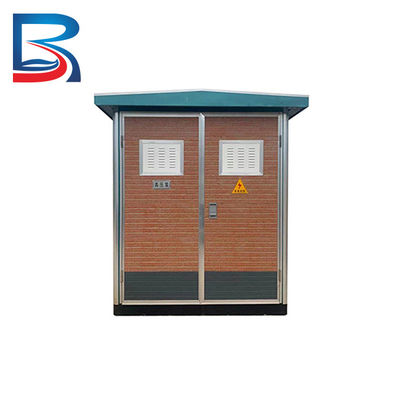

Prefabricated TNB Electric Transformer Substation for Electrical Grid Systems
Product Description
Voltage levels
• Typically used for medium voltage distribution up to around 12kV on the primary side.
• Step down voltage to 400V or 690V on the secondary side.
• Suitable for applications with transformer capacities up to around 1600kVA.
Design Specifications
• Enclosure protection rating of IP54 or higher to protect against dust and occasional splashing of water.
• Insulation class of at least E (140°C) for transformers and switchgear.
• Equipment and components meet IEC standards for electrical substations.
• Optional protective devices like surge arresters, instrument transformers, etc.
Temperature Control
• Natural or forced air cooling systems to dissipate heat from components.
• Temperature sensors to monitor ambient and internal temperatures.
• Temperature control units to regulate fan speeds, activate alarms, etc.
• Heat exchangers or liquid cooling for high ambient temperatures.
• Optional air conditioning for extreme conditions.
Operational Safety
• Integrated protection relays and circuit breakers for overcurrent, overload and short-circuit protection.
• Optional protective relaying for earth faults, over/under voltages, reverse power, etc.
• Islanding prevention to automatically disconnect from the grid during outages.
• Fire suppression systems and protective earthing.
• Alarms, indicators and control panels for monitoring and operation.
• Security measures like locking doors and intruder detection.
Specification
Rated Voltage | 12/17.5/24kV | 36kV |
Standard applicable |
IEC 62271 – 202 (IEC 61330) | IEC 62271 – 202 (IEC 61330) |
Normal ambient temperature | 40 ° C | 40 ° C |
Maximum ambient temperature | 50 ° C | 50 ° C |
Enclosure construction | Modular | Modular |
Ventilation | Natural | Natural |
Temperature class (Std.) | K 10 | K 10 |
MV and LV compartment | IP 54 | IP 54 |
Transformer compartment | IP 23 | IP 23 |
Rated voltage (kV) | 12/24kV | 36kV |
Power frequency (kV rms) | 28/50 | 70 |
Impulse (kV p) | 75/125 | 170 |
Rated frequency (Hz) | 50/60 | 50/60 |
Rated normal current (A) | 630 | 630 |
Breaking capacity (A) | 630 | 630 |
Making capacity (kA) | 52.5 / 40 | 50 |
Rated normal current (A) | 630 | 630 |
Breaking capacity (kA) | 21/16 | 20 |
Making capacity (kA) | 52.5 / 40 | 50 |
Rated power (kVA) – oil type | 2500 | 2000 |
Rated power (kVA) – Dry type | 2500 | 2000 |
Rated secondary voltage (V) | 433 | 433 |
Vector group | Dyn 11 | Dyn 11 |
Tapping range | + 5 in steps of 2.5% | + 5 in steps of 2.5% |
IP | Yes | Yes |
Internal arc | Yes | Yes |
Enclosure class | Yes | Yes |
Impact test | Yes | Yes |
Short circuit test on earthing | Yes | Yes |
Advantages
1.Excellent quality
2.24 hour service
3.Professional design
4.Advanced technique
5.Rapid delivery
Production Facilities
Engineering
1.Power generation plants
2.Substations
3.Commercial buildings
4.Data centers
5.Renewable energy systems
6.Transportation
