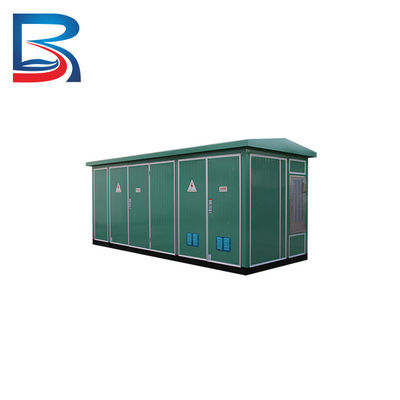

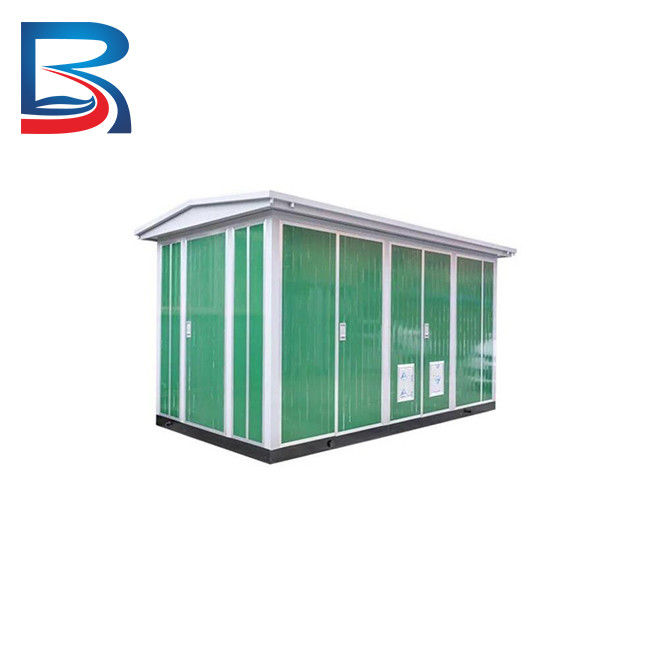

Main LV Packaged Transformer Substation for Power Generation Plants

Main LV Packaged Transformer Substation for Power Generation Plants

  • Main LV Packaged Transformer Substation for Power Generation Plants
  • Main LV Packaged Transformer Substation for Power Generation Plants
Main LV Packaged Transformer Substation for Power Generation Plants
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Electrical Substation Transformer Color: As Required
ODM/OEM: Accepted Certificate: ISO9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Main LV packaged transformer substation

,

Power Generation Plants packaged transformer substation

,

Main LV Prefabricated substations

Packaged Main LV Electrical Substation Transformer for Power Generation Plants





Product Description



  • Flexibility: Prefabricated substations are available in various sizes and configurations, which makes them flexible and adaptable to different power distribution needs. They can be customized to meet specific requirements, such as voltage, capacity, and location.
  • Fast deployment: Prefabricated substations can be quickly deployed and commissioned, which makes them ideal for emergency situations or temporary power needs. They can be installed and operational in a matter of days, compared to traditional civil-built substations that can take several months to construct.
  • Reduced environmental impact: Prefabricated substations are designed to be environmentally friendly, with features such as low noise, low emissions, and energy-efficient components. They also generate less waste and require less excavation and construction work, which reduces their impact on the environment.
  • Improved aesthetics: Prefabricated substations are designed with an aesthetic appeal, which makes them blend seamlessly into the surrounding environment. They can be customized with different colors, finishes, and textures to match the surrounding landscape or architecture.
  • Increased reliability: Prefabricated substations are designed with high-quality components and built to strict standards, which makes them more reliable and less prone to failure. They are also rigorously tested before deployment to ensure their performance and safety.

Overall, prefabricated substations offer a range of benefits that make them an attractive option for power distribution. With their flexibility, fast deployment, reduced environmental impact, improved aesthetics, and increased reliability, they are a cost-effective and efficient solution for a wide range of applications.



Specification





Rated Voltage 12/17.5/24kV 36kV



Standard applicable

IEC 62271 – 202 (IEC 61330) IEC 62271 – 202 (IEC 61330)
Normal ambient temperature 40 ° C 40 ° C
Maximum ambient temperature 50 ° C 50 ° C
Enclosure construction Modular Modular
Ventilation Natural Natural
Temperature class (Std.) K 10 K 10
MV and LV compartment IP 54 IP 54
Transformer compartment IP 23 IP 23
Rated voltage (kV) 12/24kV 36kV
Power frequency (kV rms) 28/50 70
Impulse (kV p) 75/125 170
Rated frequency (Hz) 50/60 50/60
Rated normal current (A) 630 630
Breaking capacity (A) 630 630
Making capacity (kA) 52.5 / 40 50
Rated normal current (A) 630 630
Breaking capacity (kA) 21/16 20
Making capacity (kA) 52.5 / 40 50
Rated power (kVA) – oil type 2500 2000
Rated power (kVA) – Dry type 2500 2000
Rated secondary voltage (V) 433 433
Vector group Dyn 11 Dyn 11
Tapping range + 5 in steps of 2.5% + 5 in steps of 2.5%
IP Yes Yes
Internal arc Yes Yes
Enclosure class Yes Yes
Impact test Yes Yes
Short circuit test on earthing Yes Yes





Advantages



1.Excellent quality



2.24 hour service



3.Professional design



4.Advanced technique



5.Rapid delivery





Company Profile



Main LV Packaged Transformer Substation for Power Generation Plants 0



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation
