IP65 High Voltage Switchgear Compact Transformer Substation MNS Protection

IP65 MNS Protection High Voltage Switchgear Compact Transformer Substation

Product Description

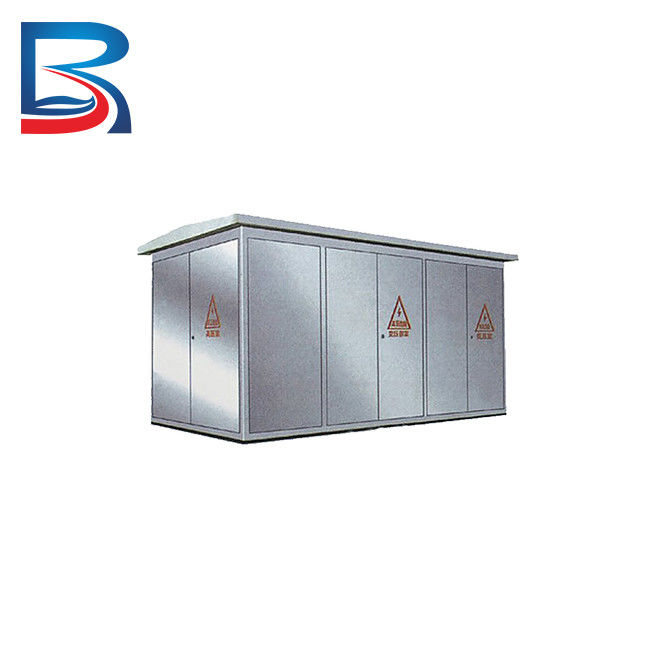

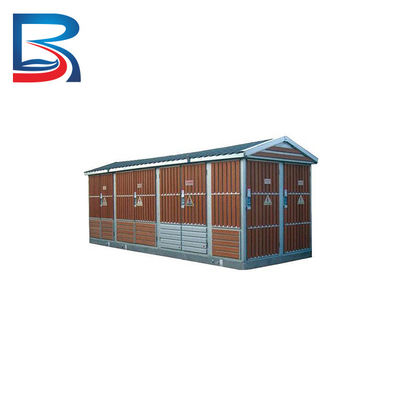

• Box-type substations are composed of high-voltage compartments, transformer compartments, and low-voltage compartments.
• They are a relatively simple type of power distribution equipment, with a capacity generally not exceeding 1250kVA.
• Box-type substations have two main applications: in urban residential areas and streets during periods of high electricity demand, and for temporary power supply on construction sites and outdoor operations.
• Box-type substations have different requirements depending on their application, including the number of outgoing circuits and the need for reactive power compensation.
• Box-type substations have a small footprint and are suitable for use in densely populated areas, extending high-voltage power supply to the load center and reducing losses.
• The installation of new equipment such as fully sealed transformers and SF6 switchgear can extend maintenance cycles and meet maintenance-free requirements.
• Environmental conditions for use include altitude, ambient temperature, wind speed, air relative humidity, seismic level, and the absence of dangerous substances.
• Box-type substations comply with national standards for pre-installed high-voltage/low-voltage substations and have an aesthetically pleasing appearance.

Specification

Material

1.The cabinet door adopts a double beveled edge process, which increases the structural strength of the same material by 50%.

2.The installation holes are all made using a multi-layer stamping and stretching process, which reduces the sliding wire situation by more than 80%.

3.The inlet and outlet holes adopt a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.

4.The box adopts a double folding process, which increases the structural strength of the same material by 50%.

5.The control circuit adopts a composite design of debugging mode and fire protection mode, greatly reducing the burning of fan and water pump equipment designed for fire protection during debugging.

Company Profile

1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.

2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.

3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,

4.A complete product development department, design team.

5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.

6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.

7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.

8.More than 10 product invention patents and utility model patents.

9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."
