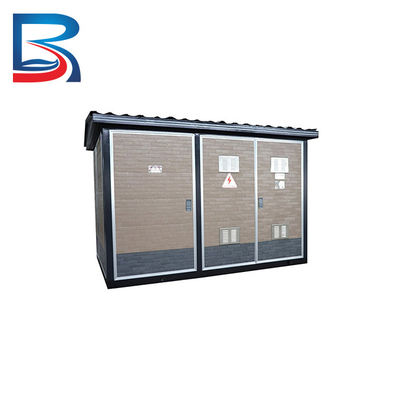

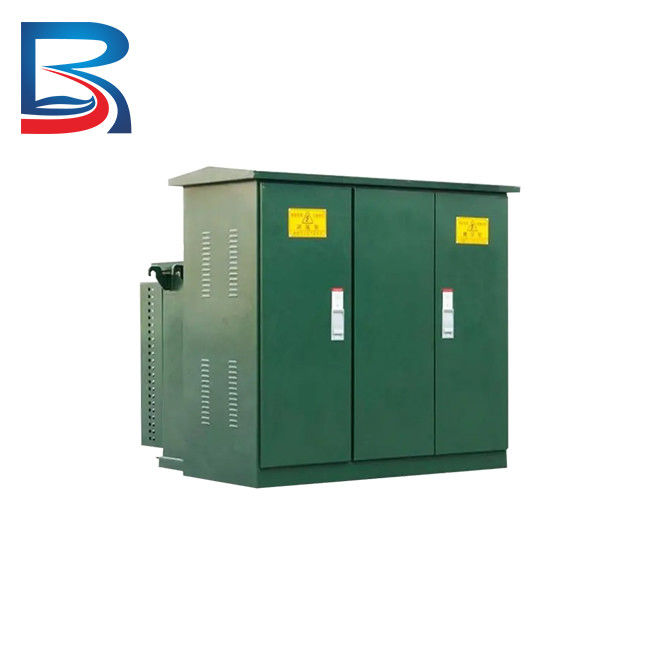

Arc Outdoor Wind Power Transformer for Commercial Buildings and Real Estate

Arc Outdoor Wind Power Transformer for Commercial Buildings and Real Estate

  • Arc Outdoor Wind Power Transformer for Commercial Buildings and Real Estate
  • Arc Outdoor Wind Power Transformer for Commercial Buildings and Real Estate
Arc Outdoor Wind Power Transformer for Commercial Buildings and Real Estate
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Wind Power Transformer Color: As Required
ODM/OEM: Accepted Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

Arc Outdoor Wind Power Transformer for Commercial Buildings and Real Estate





Product Description



A box-type substation, also known as a prefabricated substation or prefabricated substation, is a factory-prepared compact distribution equipment that combines high-voltage switchgear, distribution transformers, and low-voltage distribution devices according to a certain wiring scheme, which is installed in a moisture-proof, rust-proof, dust-proof, rodent-proof, fire-proof, theft-proof, insulated, fully enclosed, and movable steel structure box. It is especially suitable for urban network construction and renovation, and is a new type of substation that has emerged after civil construction substations. Box-type substations are suitable for mines, factories, oil and gas fields, and wind power plants. They replace the original civil distribution rooms and distribution substations, becoming a new type of complete set of power distribution equipment.



Specification





Rated Voltage 12/17.5/24kV 36kV



Standard applicable

IEC 62271 – 202 (IEC 61330) IEC 62271 – 202 (IEC 61330)
Normal ambient temperature 40 ° C 40 ° C
Maximum ambient temperature 50 ° C 50 ° C
Enclosure construction Modular Modular
Ventilation Natural Natural
Temperature class (Std.) K 10 K 10
MV and LV compartment IP 54 IP 54
Transformer compartment IP 23 IP 23
Rated voltage (kV) 12/24kV 36kV
Power frequency (kV rms) 28/50 70
Impulse (kV p) 75/125 170
Rated frequency (Hz) 50/60 50/60
Rated normal current (A) 630 630
Breaking capacity (A) 630 630
Making capacity (kA) 52.5 / 40 50
Rated normal current (A) 630 630
Breaking capacity (kA) 21/16 20
Making capacity (kA) 52.5 / 40 50
Rated power (kVA) – oil type 2500 2000
Rated power (kVA) – Dry type 2500 2000
Rated secondary voltage (V) 433 433
Vector group Dyn 11 Dyn 11
Tapping range + 5 in steps of 2.5% + 5 in steps of 2.5%
IP Yes Yes
Internal arc Yes Yes
Enclosure class Yes Yes
Impact test Yes Yes
Short circuit test on earthing Yes Yes





Company Profile



Arc Outdoor Wind Power Transformer for Commercial Buildings and Real Estate 0





Chongqing Bosun Electrical Co., Ltd. is a company established in 1996, located in Banan District, Chongqing, China, with convenient transportation, covering an area of 8,000 square meters. The company is dedicated to the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment ranging from 40.5kV to 0.22kV.



The company boasts over 20 CCC/CQC certificates, meeting the requirements of the highest protection level of IP65 and altitude environment of 4500 meters. They have also obtained the GB/T19001:2016 /ISO9001:2015 quality management system certification. The company has a complete product development department and design team, and they use specialized computer mechanical and electrical CAD design software systems for various kinds of product construction and manufacturing design.



Chongqing Bosun Electrical Co., Ltd. has complete surveillance, measuring, and testing equipment that ensures high product quality. They have a complete production line, including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



The company has over 10 product invention patents and utility model patents. They provide excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."



Packing



Arc Outdoor Wind Power Transformer for Commercial Buildings and Real Estate 1





Production Facilities



Arc Outdoor Wind Power Transformer for Commercial Buildings and Real Estate 2
