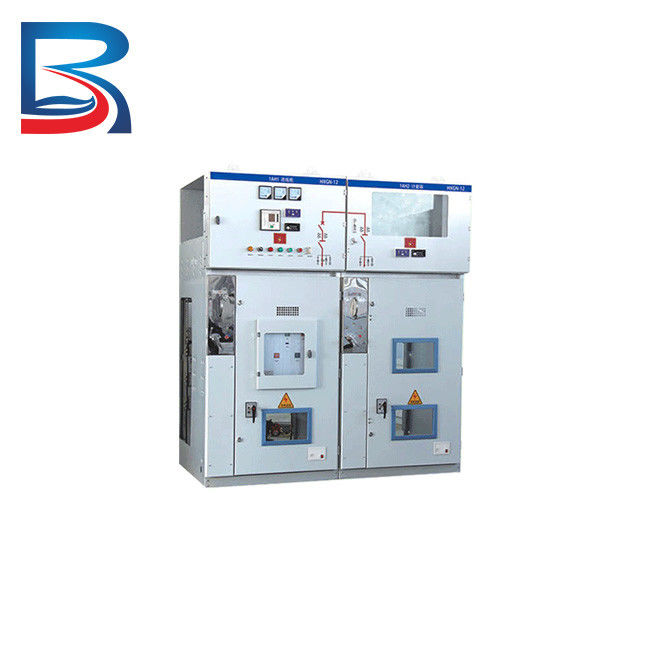

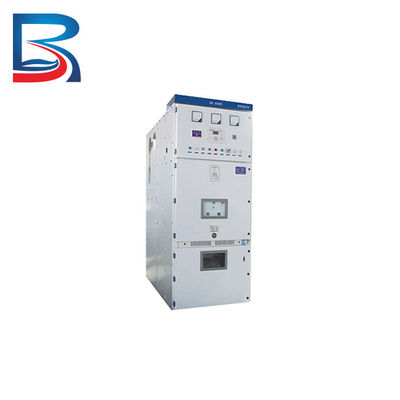

Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear

Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear

  • Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear
  • Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear
Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: High Tension High Voltage Switchgear ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case

Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear





Product Purpose



This switchgear is suitable for a complete set of distribution equipment in a single bus or single bus sectional system with a voltage range of 3.6-12kV and a three-phase AC frequency of 50Hz. It is mainly used for power generation plants, small and medium-sized generator power generation, industrial and mining enterprises' power distribution, and secondary substations in the power system for power receiving, power transmission, and the starting of large high-voltage motors. It is used for control, protection, and monitoring. This switchgear complies with the GB3906, DL404 standards, and the international IEC298.



Operating Conditions



Ambient temperature: -10℃ to +40℃
Altitude: not exceeding 1000m
Humidity:

Relative humidity: daily average not greater than 95%, monthly average not greater than 90%

Seismic intensity not exceeding 8 degrees
The surrounding air should not be significantly polluted by corrosive, flammable gases, water vapor, etc.
No significant pollution and frequent severe vibration
When used under conditions exceeding the normal environmental conditions specified in GB3906 and this standard, it should be determined through consultation between the user and the manufacturer.



Product Features



The switchgear can be equipped with VD4, VB2, VS1, HVF (South Korea Hyundai), EV12 vacuum circuit breakers, with functions such as preventing the circuit breaker handcart from being pushed and pulled with load, preventing misoperation of the branch circuit breaker, preventing the grounding switch from being in the closed position and closing the circuit breaker, preventing accidental entry into the live isolation room, and preventing accidental closure when energized.
The switchgear has a sturdy and reliable "five-proof" interlocking device, and the circuit breaker can be operated on the closed panel. The state of the circuit breaker can be observed through the viewing window.
The switchgear has a fully functional handcart with 100% interchangeability, light operation, and smooth action.
Easy maintenance, easy installation of busbars and cables, and a lift and transport vehicle that is convenient for the advancement, extraction, and transportation of the handcart.
The fully assembled switchgear uses aluminum steel plate for anti-corrosion and anti-oxidation, with multiple bending processes to ensure high strength and rigidity.



Main Technical Parameters



Main Technical Parameters

Specifications

Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A



Company Profile



Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear 0



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement,"





Team Show



Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear 1



1.Professional team



2.Comprehensive services



3.Strict quality control



4.Comprehensive inspection



5.Responsibility guarantee





Production Facilities



Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear 2





Packing



Rated Current 1600A 2000A Outdoor Indoor High Tension High Voltage Switchgear 3





FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.
