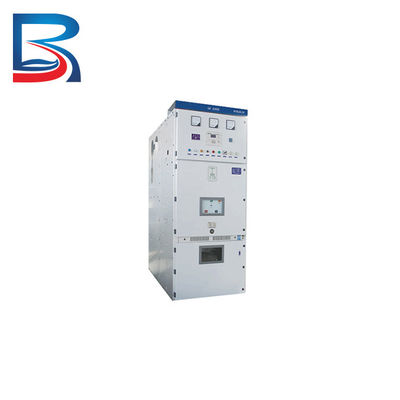

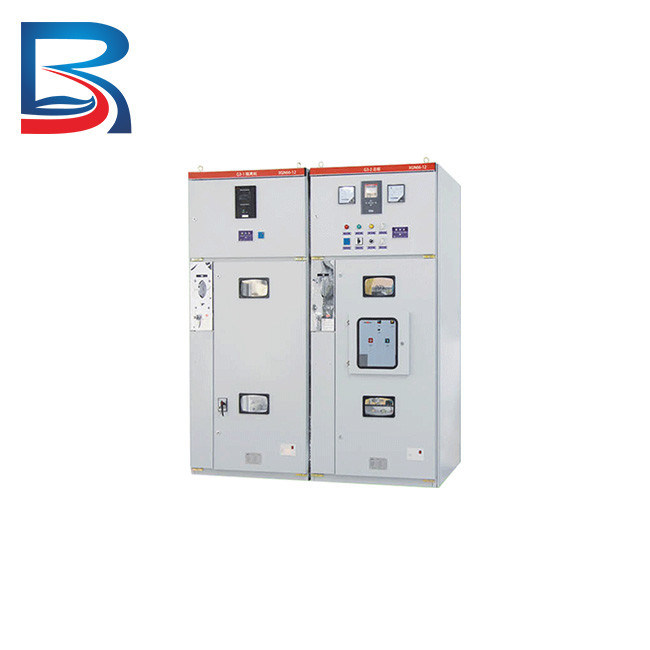

Gas Insulated High Voltage Switchgear 40.5KV for Wharf and Dock

Gas Insulated High Voltage Switchgear 40.5KV for Wharf and Dock

  • Gas Insulated High Voltage Switchgear 40.5KV for Wharf and Dock
  • Gas Insulated High Voltage Switchgear 40.5KV for Wharf and Dock
Gas Insulated High Voltage Switchgear 40.5KV for Wharf and Dock
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: High Voltage Gas Insulated High Voltage Switchgear ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

Gas Insulated High Voltage Switchgear

,

high voltage gas insulated switchgear 40.5KV

,

High Voltage Switchgear 40.5KV

High Voltage Gas Insulated High Voltage Switchgear for Wharf and Dock


Products Description

The KYN61-40.5 switchgear is a versatile and reliable product designed to receive and distribute electrical energy while controlling, protecting, and monitoring electrical circuits. It is suitable for use in power generation plants, substations, industrial and mining enterprises, and high-rise building distribution systems.

To ensure safe and efficient operation, the switchgear has been designed with several key features. The compact cabinet structure, made possible by the use of heat shrinkable insulation materials and epoxy-coated insulation technology, reduces the floor space required for installation. The switchgear cabinet body is made of high-quality cold-rolled steel and connected by high-strength bolts, nuts, and rivet nuts, providing excellent corrosion resistance and durability.

The switchgear is also highly adaptable to different user needs. It can use both domestic ZN85-40.5 vacuum circuit breakers and French SF1, SF2, and FP system sulfur hexafluoride circuit breakers, and the main busbar scheme can reach more than 198 types. Each functional compartment of the switchgear is sealed with a metal plate and has an independent pressure release channel, and a mechanical interlocking device prevents misoperation.

The switchgear operates in ambient air temperatures between -10℃ to +40℃, at an altitude not exceeding 1000m, and with a seismic intensity not exceeding 8 degrees. The ambient air should not be subject to significant pollution such as corrosive, flammable gases, water vapor, etc. If the conditions of use exceed the above regulations, they should be determined through consultation between the user and the manufacturer.
Overall, the KYN61-40.5 switchgear is a reliable and safe option for the distribution of electrical energy in various settings. Its advanced technology and components ensure efficient and safe operation of the electrical system.

In addition to the features I mentioned earlier, another important aspect of the switchgear is its rated insulation level. The switchgear has a 1-minute power frequency withstand voltage of 95KV between phases and relative, and 115KV for the first isolating joint. Its lightning impulse withstand voltage is 185KV between phases and relative, and 215KV for the first isolating joint. The auxiliary control circuit has a 1-minute power frequency withstand voltage of 2KV.

The switchgear is also designed to operate in a variety of operating conditions. It can operate in ambient air temperatures between -10℃ to +40℃, at an altitude not exceeding 1000m, and with a seismic intensity not exceeding 8 degrees. The ambient air should not be subject to significant pollution such as corrosive, flammable gases, water vapor, etc. No frequent severe vibration is allowed. If the conditions of use exceed the above regulations, they should be determined through consultation between the user and the manufacturer.

Safety is a top priority in the design of the switchgear. In addition to the mechanical interlocking device and pressure release channel, the switchgear is equipped with complete "five-proof" functions. These functions include anti-condensation, anti-mold, anti-insect, anti-rodent, and anti-dust features. They ensure that the switchgear is safe, reliable, and protected from the elements.

The KYN61-40.5 switchgear is also highly customizable. It can be tailored to meet the specific needs of different users, with options for different circuit breakers, busbar schemes, and other components.

Overall, the KYN61-40.5 switchgear is a versatile and reliable product that provides efficient and safe distribution of electrical energy in a variety of settings. Its advanced technology, robust design, and customizable features make it an excellent choice for power generation plants, substations, industrial and mining enterprises, and high-rise building distribution systems.

Main Technical Parameters


Main Technical ParametersSpecifications
Rated voltage40.5KV
Rated frequency50Hz
Rated current of the main busbar1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit2KV
Dimensions (widthdepthheight)1400*2800(3000)*2800
Rated current of branch busbar630A, 1250A, 1600A




Company Profile

Gas Insulated High Voltage Switchgear 40.5KV for Wharf and Dock 0




























1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.

2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.

3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,

4.A complete product development department, design team.

5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.

6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.

7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.

8.More than 10 product invention patents and utility model patents.

9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement,"


Team Show

Gas Insulated High Voltage Switchgear 40.5KV for Wharf and Dock 1

1.Professional team

2.Comprehensive services

3.Strict quality control

4.Comprehensive inspection

5.Responsibility guarantee


Why Choose Us


Gas Insulated High Voltage Switchgear 40.5KV for Wharf and Dock 2


Packing

Gas Insulated High Voltage Switchgear 40.5KV for Wharf and Dock 3


FAQ

1. Are you the manufacturer or trader?
"Bosun Electrical " is a leading & professional manufacturer in China.

2. How to order your products?
Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items
.
3. What is your delivery & after-sales serive?
Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.

4. What is your product warranty?
"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.
Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.

5.Do you accept OEM and ODM?
Yes

6. What is your payment terms?
a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L
b. irrevocable L/C at sight for order which order amount is over $0.1 million .
C. for old business partner,we can negociate for other special terms
d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance

7. If i want to visit you ,how to do ?
Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.
